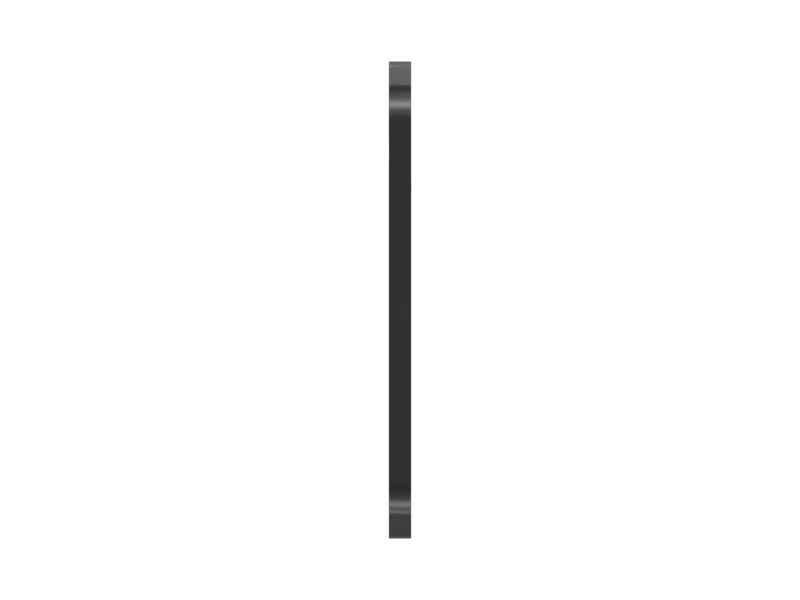

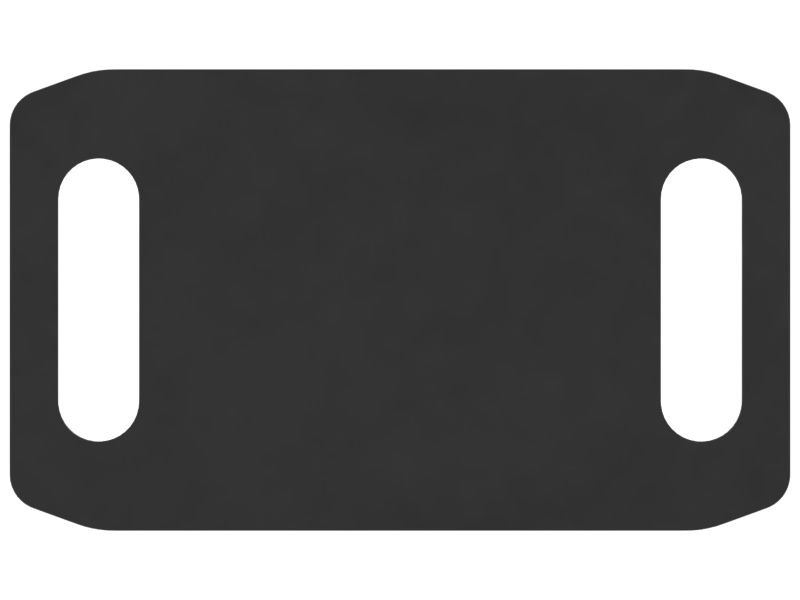

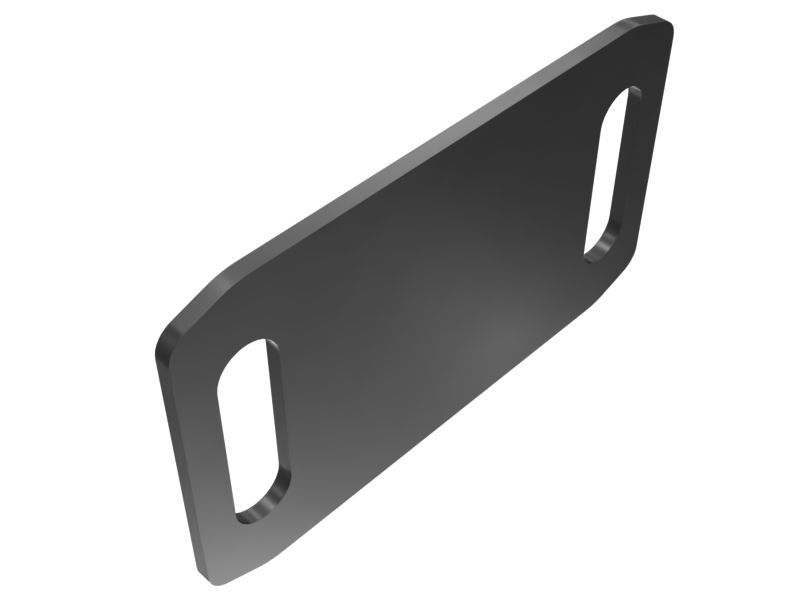

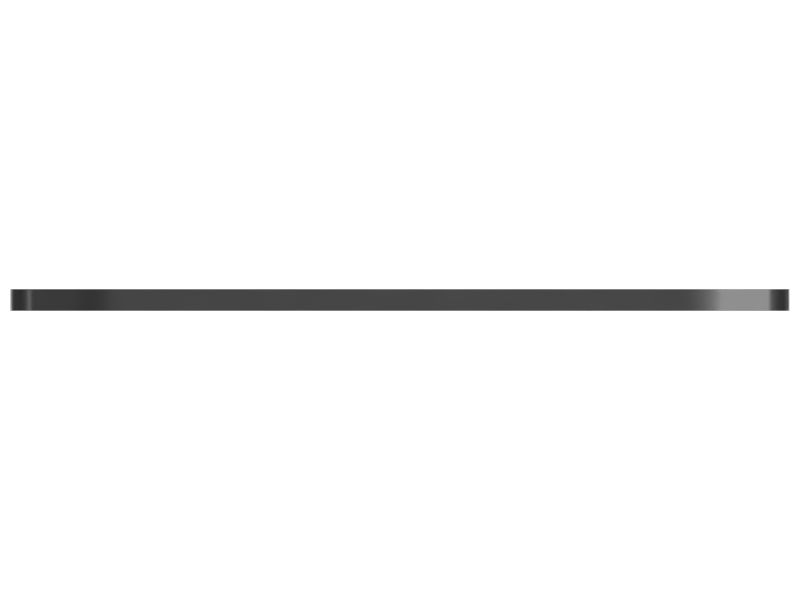

646-0553: Cabin Window Glass Rail Support Plate

The Cabin Window Glass Rail Support Plate works by securely holding the window rail part in place and providing a stable platform for the seal. It is bolted onto the window frame, creating a rigid connection. It can withstand the demanding conditions and vibrations experienced in the machine. It is installed within the edge of the window frame. The plate is precisely engineered to accommodate the window frame, offering a secure mounting point along with the help of the edge seal.

Attributes:
• Withstands external forces and shocks exerted during operation
• Ensures the window frame remains securely attached even when the machine is subjected to rough terrain
• Helps to absorb and dampen the vibrations

Applications:
The Cabin Window Glass Rail Support Plate is used to firmly hold the cabin rail part of the window which holds the glass in place. It supports the seal, preventing any unwanted movement or misalignment of the window frame and maintaining a tight seal to protect the cabin interior from external elements.

• Material: Steel,Alloy Zinc,Carbon Steel

• Length (mm): 110

• Length (in): 4.33

• Height (mm): 65

• Height (in): 2.559

• Thickness (mm): 3

• Thickness (in): 0.12

• Weight (kg): 0.15

• Weight (lb): 0.32
