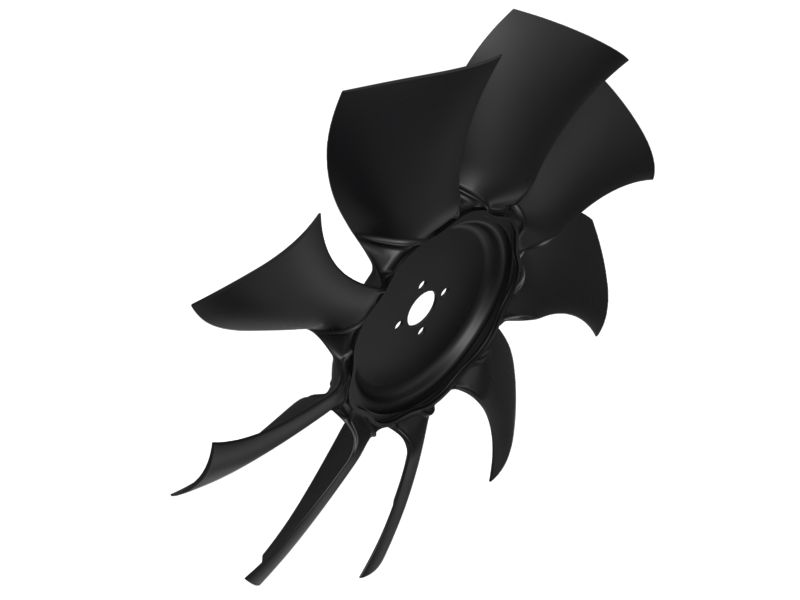

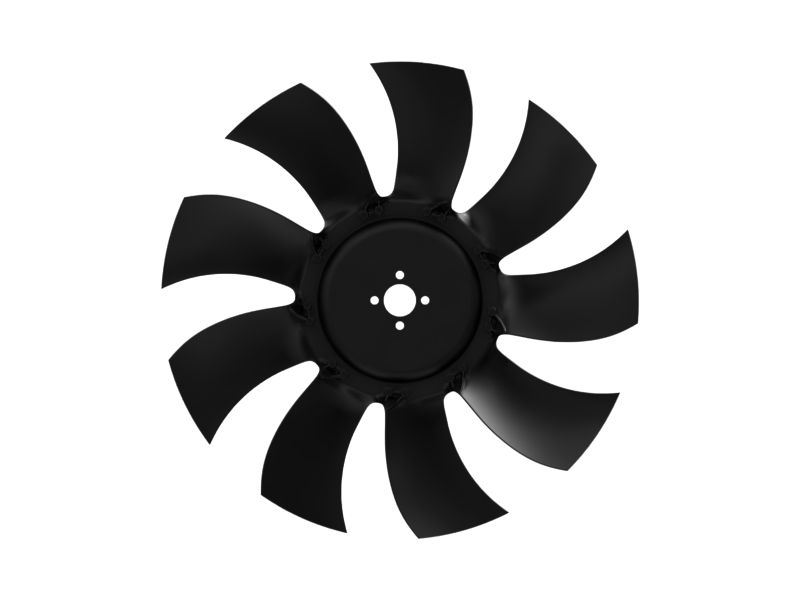

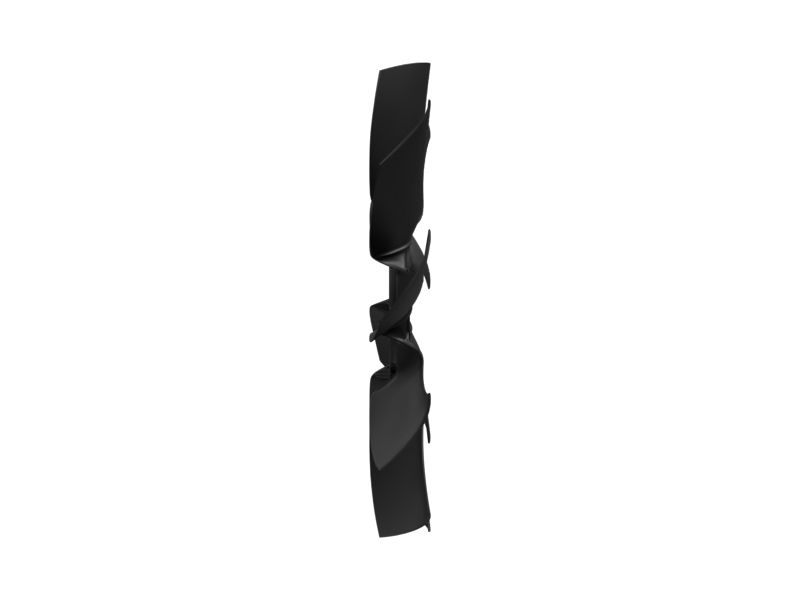

644-9173: 9 Blade Suction Fan Spider

The Heat Exchanger Mounting Angle is used to securely anchor the heat exchanger within the equipment, ensuring it remains stable and properly aligned during operation. This mounting angle plays a necessary role in the effective heat transfer process, as it maintains the heat exchanger in the optimal position, minimizing vibrations and reducing the risk of misalignment. By holding the heat exchanger securely, the mounting angle helps maintain efficient fluid flow, contributing to the consistent performance of the cooling or heating system within the equipment.

Attributes:
• Reinforced L-shaped structure for enhanced durability.
• Reduces vibration and noise by ensuring stable mounting.
• Maintains the optimal position of the heat exchanger during operation.

Applications:
The Heat Exchanger Mounting Angle is located within the equipment's cooling or heating system for securely holding the heat exchanger in place to ensure stable operation.

• Inner Diameter (in): 1.61

• Inner Diameter (mm): 41

• Outer Diameter (in): 23.62

• Outer Diameter (mm): 600

• Weight (kg): 2.4

• Weight (lb): 5.29

• Material: Nylon, 6, 6/12, 6/6 Plastic
