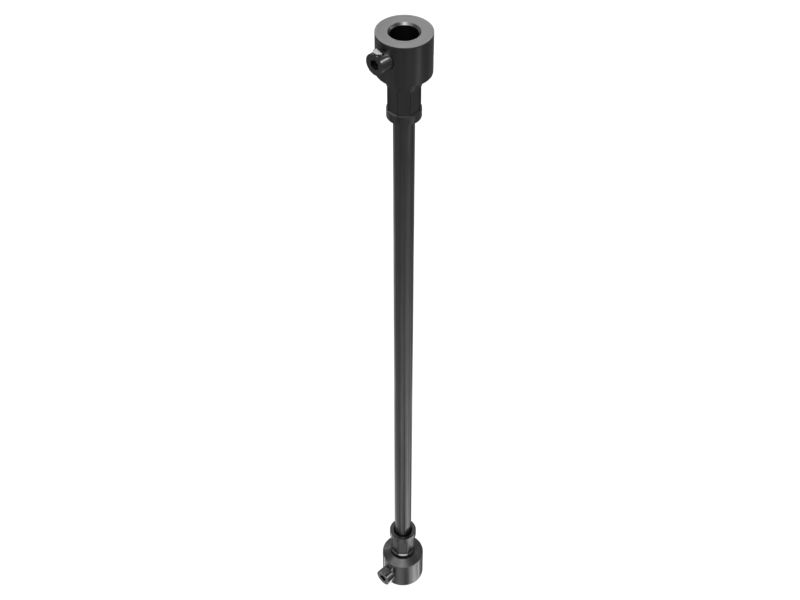

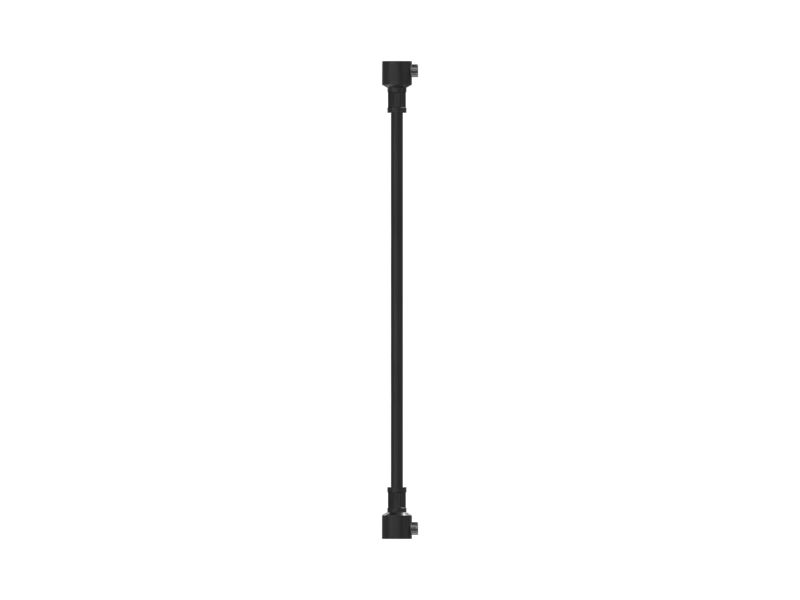

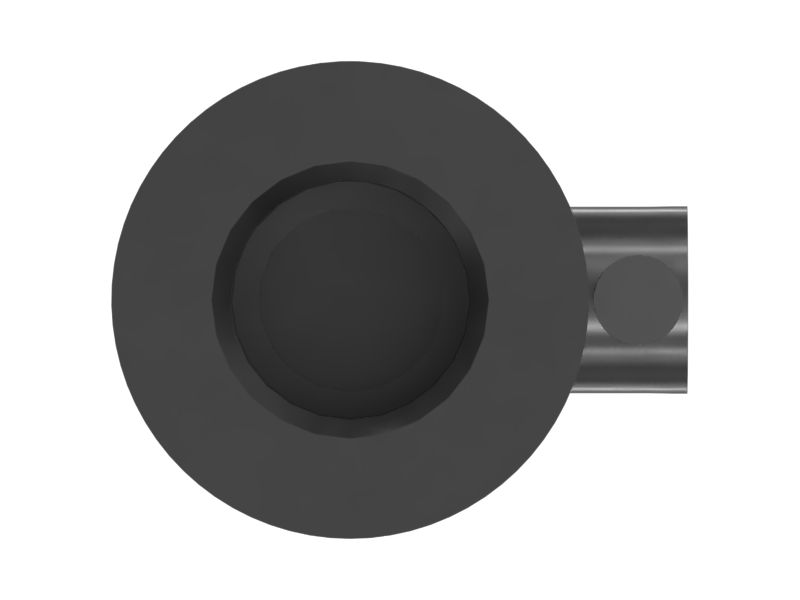

643-9286: Water Valve Shaft

The Hydraulic Boom Lines Tube facilitates the transmission of hydraulic fluid to control the movement of the boom extension. Installed along the length of the reach boom, the tube assembly connects the equipment's hydraulic system to the hydraulic cylinders responsible for extending and retracting the boom. When hydraulic pressure is applied, the fluid flows through the assembly, exerting force on the cylinders to control the movement of the boom extension. This allows operators to manipulate the reach boom with precision and efficiency, improving overall equipment performance.

Attributes:
• Equipped with reliable fittings and connectors to prevent hydraulic fluid leaks.
• Resilience to vibration and pressure fluctuations associated with fluid transfer.
• Smooth inner surface for uninterrupted fluid flow.

Applications:
The Hydraulic Boom Lines Tube is located along the boom structure, and facilitates fluid transfer to control auxiliary hydraulic functions, enabling accurate movement and operation in equipment.

• Inner Diameter (in): 0.2

• Inner Diameter (mm): 5

• Length (in): 8.07

• Length (mm): 205

• Material: Steel,Carbon Steel

• Outer Diameter (in): 0.25

• Outer Diameter (mm): 6.38

• Weight (kg): 0.06

• Weight (lb): 0.13
