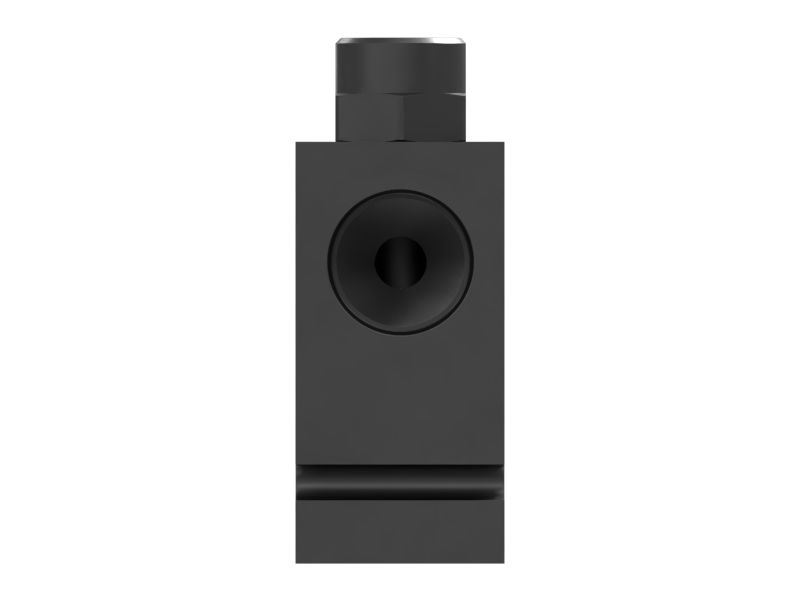

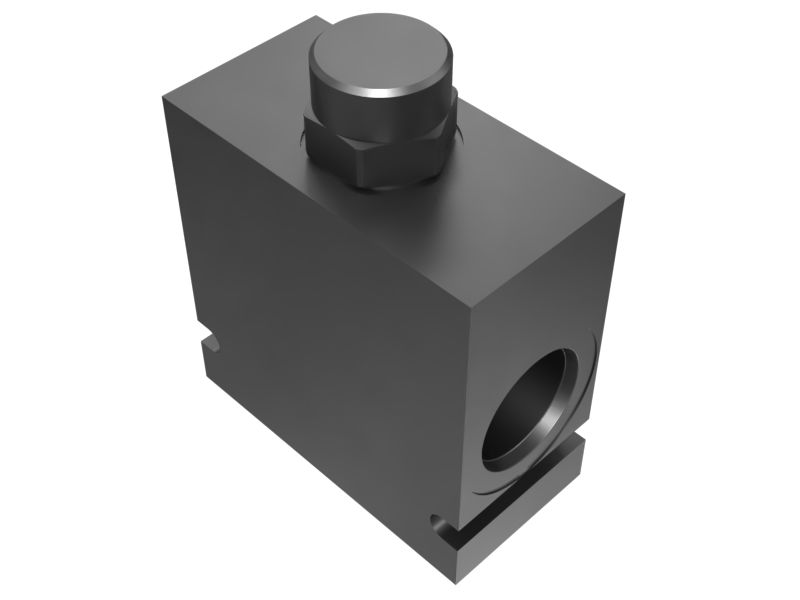

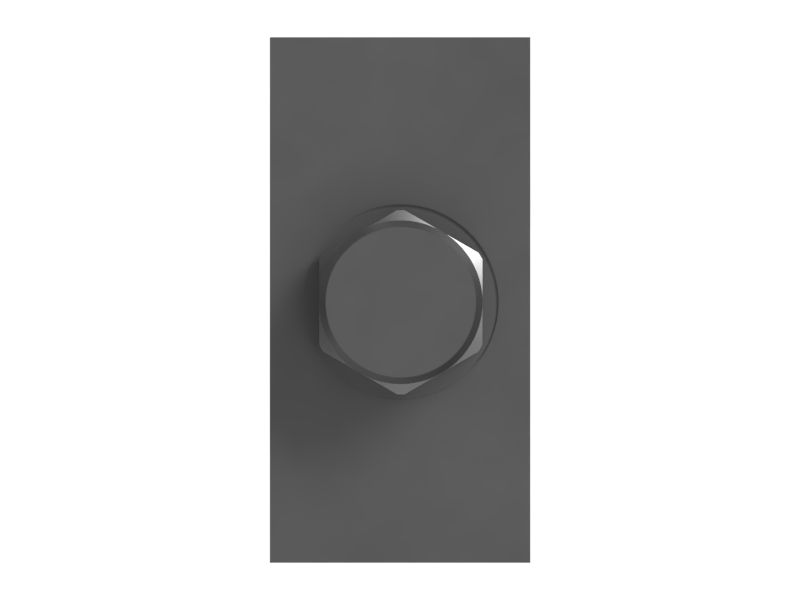

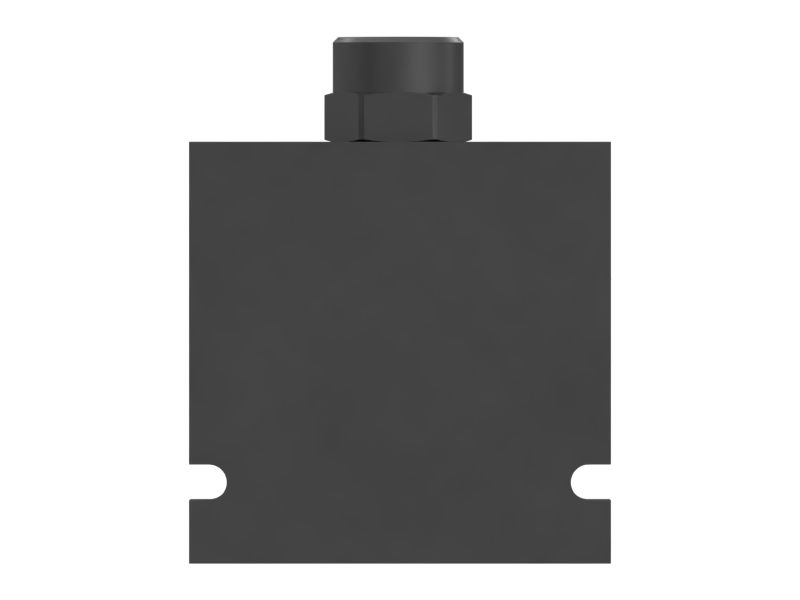

643-4240: Drivetrain Oil Flow Control Valve

The Hydraulic Stick Cylinder is used to manage the stick’s movement on the equipment. It functions through hydraulic pressure, which moves the piston within the cylinder to extend and retract the stick. By regulating the flow of hydraulic fluid, the cylinder facilitates smooth and accurate motion for tasks such as digging, lifting, and positioning. Its efficient operation is necessary for maintaining control and performance in equipment applications.

Attributes:
• Provided with a stroke length of 698 millimeters for extended reach.
• Provides efficient energy transfer and hydraulic force management.
• Ensures smooth extension and retraction under high pressure.
• Offers high tensile strength to withstand demanding loads.

Applications:
The Hydraulic Stick Cylinder is located on the stick assembly of the equipment to control the movement of the stick by extending and retracting it for lifting and digging functions.

• Overall Height (in): 5.03

• Overall Height (mm): 127.8

• Overall Length (in): 4.02

• Overall Length (mm): 102.2

• Overall Width (in): 1.99

• Overall Width (mm): 50.6

• Thread: 1 5/16'' - 12

• Weight (kg): 2.1

• Weight (lb): 4.63

• Material: Alloy Zinc,Alloy Aluminum,Carbon Steel
