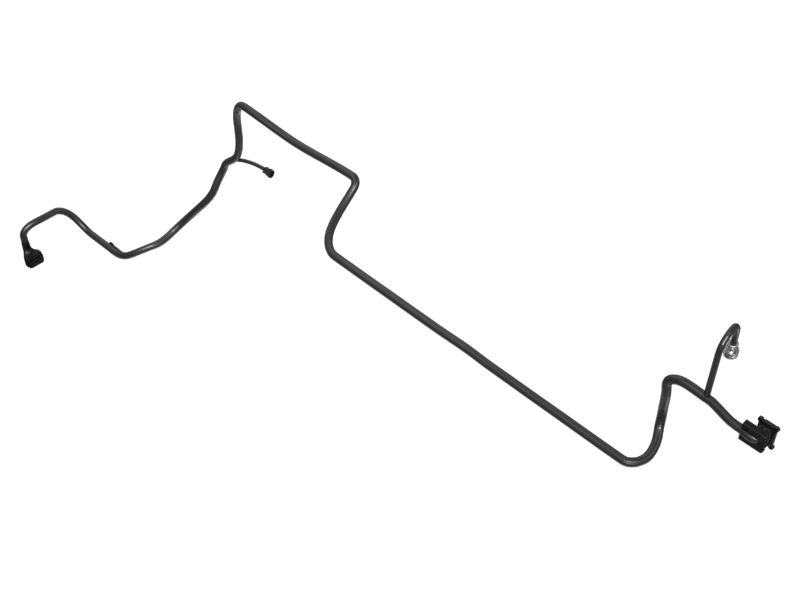

643-0539: Engine Power Distribution Box Wiring Harness

A Stick Lines Tube Assembly serves as a conduit for hydraulic fluid, allowing controlled movement of the stick cylinder piston rod. The inner surface of the tube is made smooth to minimize friction and turbulence in the hydraulic fluid flow. The assembly includes an O-Ring Face Seal Connector, sleeve, and nut to ensure a secure and leak-free connection.

Attributes:
• Allows for precise positioning of loads without slippage, ensuring efficient material handling
• Helps control the flow of hydraulic fluid, enabling precise movement and operation of hydraulic actuators

Applications:
A Stick Lines Tube Assembly is responsible for the flow of fluid to the stick cylinder to ensure precise control over the digging and scooping operations done by the stick movement.

• Weight (kg): 8.25

• Weight (lb): 18.19
