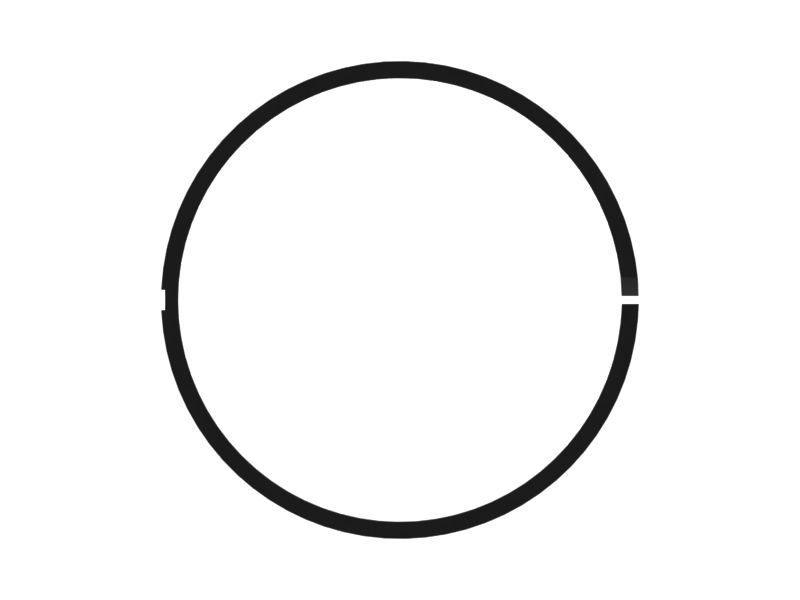

642-6552: Hydraulic Cylinder Piston Protect Ring

A Fender Mounting Plate is a sturdy plate used to support and reinforce a fender structure. It supports the mounting of the fender plate assembly with the machine frame, providing a secure point of attachment for the fender. It is a bent plate that distributes the load evenly across the fender and prevents stress concentrations that could lead to failure or detachment. It is made of durable steel to withstand the loads and stresses encountered in the assembly.

Attributes:
• Provided with 4 mounting slots to fit the fasteners of sizes M10 and M16
• Helps to minimize the risk of structural fatigue by distributing the load and stress across a wider area

Applications:
A Fender Mounting Plate is used to support attaching the fender plates to the machine frame, ensuring the proper spacing and alignment of the fender. It also prevents the excessive movement or vibrations of the fender plates.

• Axial Thickness (mm): 7.9

• Inner Diameter (in): 4.21

• Inner Diameter (mm): 107

• Material: Plastic,Teflon Plastic

• Outer Diameter (in): 4.53

• Outer Diameter (mm): 115

• Radial Thickness (mm): 4

• Weight (kg): 0.02

• Weight (lb): 0.05
