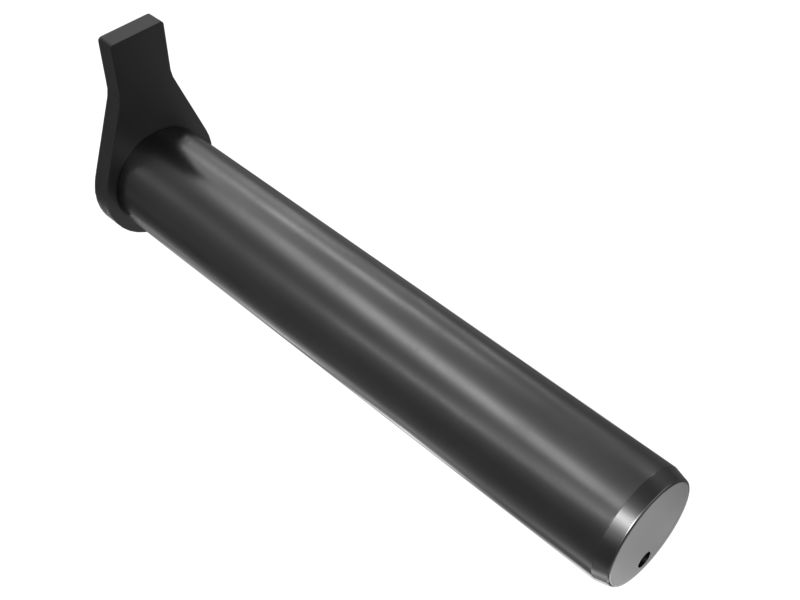

642-1470: 89.95mm Outer Diameter Boom Linkage Pin

A Boom Linkage Pin serves as a pivotal connection point, allowing the boom and stick to move in sync and perform different functions. The assembly consists of a pin with a plate at one end, providing a secure attachment between the boom and stick. The primary function of a boom linkage pin is to provide a secure connection between the boom and the stick of the machine. It allows for the movement and coordination of these components, enabling functions such as digging, lifting, or reaching.

Attributes:
• Made to fit through corresponding holes in the boom and stick to ensure a secure fit and prevent loosening during operation
• Withstands heavy loads, vibrations, and harsh operating conditions, providing a dependable connection over time
• Features a plate to provide a larger contact area and reinforces the connection between the two components

Applications:
A Boom Linkage Pin is used to securely attach the boom and stick, providing a pivotal connection and preventing any unwanted movement or separation. It ensures that the boom and stick work together as a unit, providing the necessary strength and stability during operation.

• Pin Diameter (mm): 89.95

• Pin Diameter (in): 3.541

• Overall Length (mm): 530

• Overall Length (in): 20.866

• Thread: M30

• Weight (kg): 27.03

• Weight (lb): 59.59

• Material: Alloy Steel
