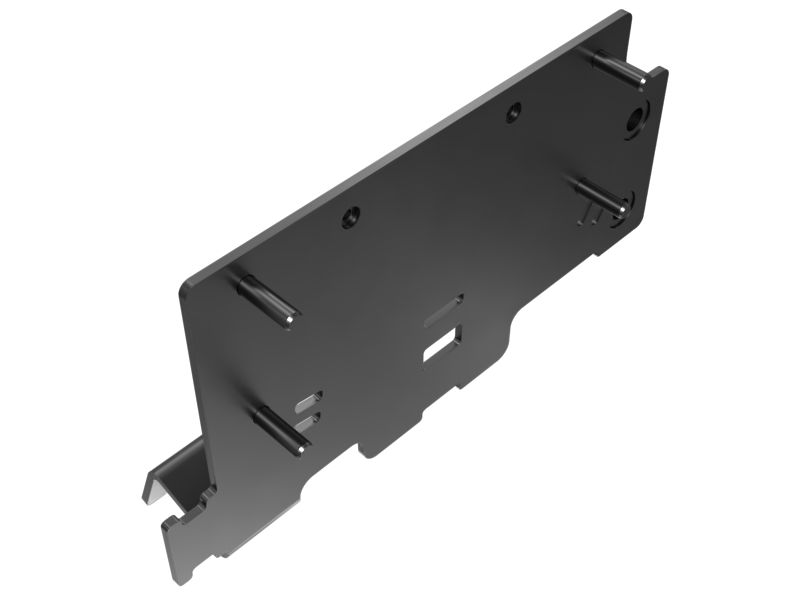

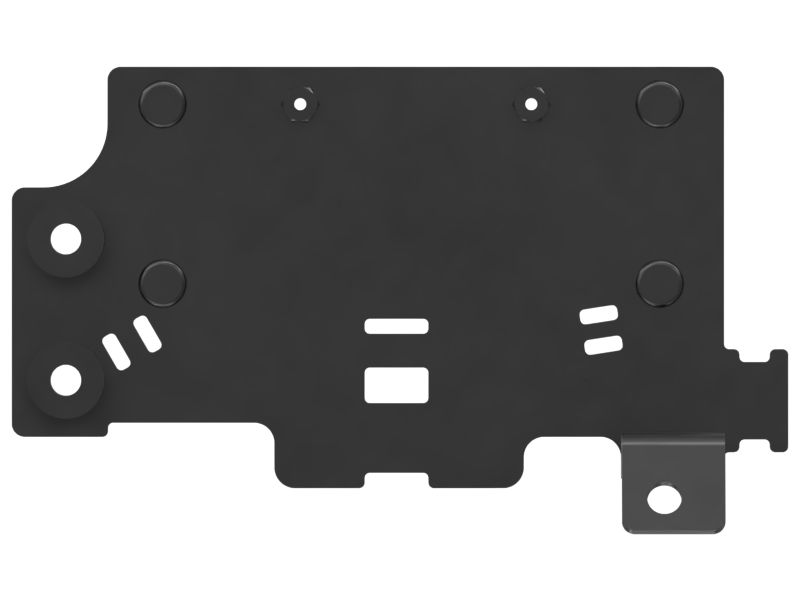

642-0559: Grade Control Power Supply Module Mounting Plate

A Grade Control Power Supply Module Mounting Plate is a sturdy plate that helps mount the power supply module and its wiring harness assembly of the grade control unit in place to prevent it from moving against other components and becoming tangled in the machine frame. It includes weld nuts, weld studs, spacers, and a plate that is made of durable steel to withstand the loads and stresses encountered in the machine.

Attributes:
• Provided with 2 M6 weld nuts and 4 weld-on studs to fit the fastener of size M8
• Provides a secure and stable connection, preventing any potential movement or dislodging of the module during operation
• Distributes loads and reduces stress concentrations to increase the overall structural strength

Applications:
A Grade Control Power Supply Module Mounting Plate provides a secure and stable platform for mounting the grade control power supply module along with its wiring harness. This ensures that the module remains in place even during machine operations, preventing any potential disruptions to the grade control unit.

• Material: Steel,Alloy Steel,Alloy Mixed

• Thread: M6x1, M8x1.25

• Overall Length (mm): 302.3

• Overall Length (in): 11.901

• Overall Height (mm): 180.1

• Overall Height (in): 7.09

• Thickness (mm): 4

• Thickness (in): 0.16

• Weight (kg): 1.561

• Weight (lb): 3.441
