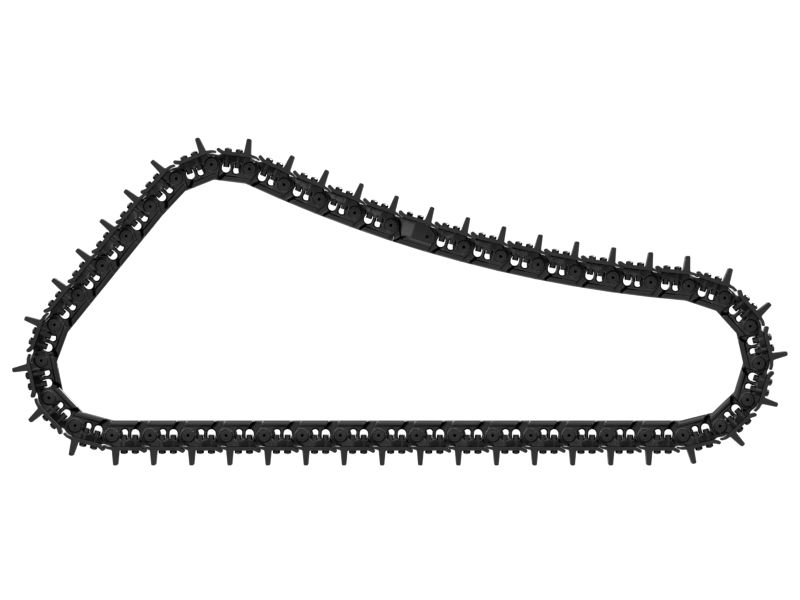

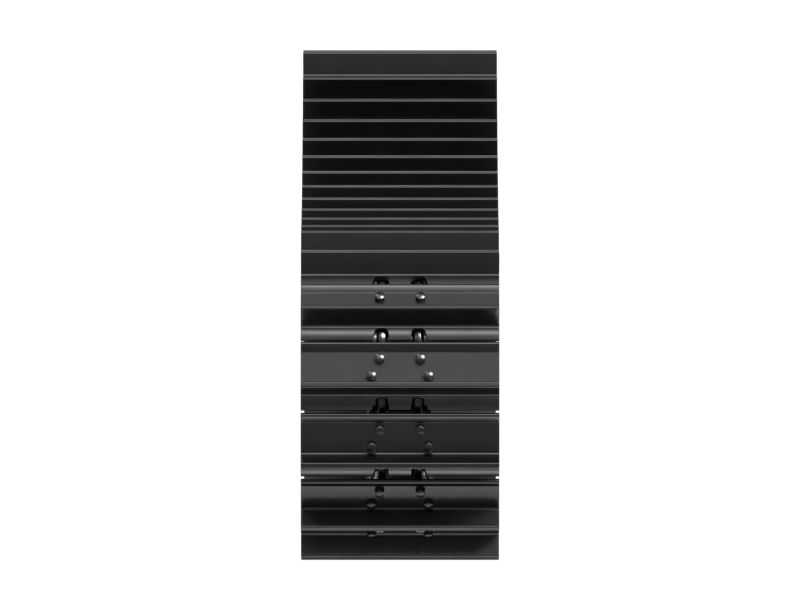

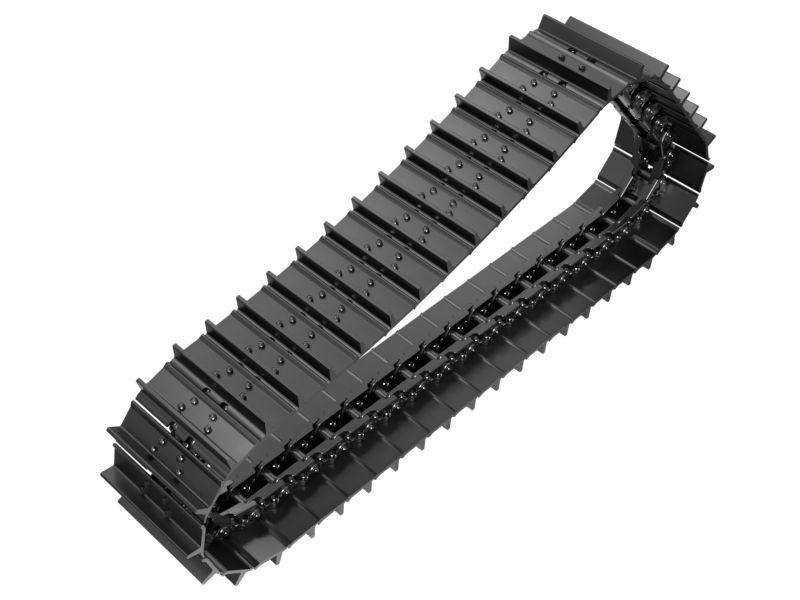

641-9535: Undercarriage Track

An Undercarriage Track ensures smooth movement and stability by effectively transferring power from the engine to the ground. It consists of multiple components, including track links, track shoes, bolts, and nuts. The track links are interconnected to form a continuous loop, which wraps around the undercarriage frame. The track shoes, attached to the track links, make contact with the ground, providing traction and preventing slippage. The positive pin retention method ensures a secure attachment of the track links, minimizing the risk of track separation during operation.

Attributes:
• Increases joint seal ability in applications where link end-play growth can exceed the capacity of the seal
• Resists the outward movement of the links on the pin

Applications:
An Undercarriage Track is a continuous, linked system that replaces wheels on machines, providing a mobile track for distributing weight, transmitting power, and ensuring traction on uneven terrain.

• Weight (kg): 2843.104

• Weight (lb): 6267.963

• Number of Track Sections: 44

• Shoe Width (mm): 710

• ARM: No

• Offset: Not Applicable

• Track Bolt Thread: 0.875

• Hole Type: Not Applicable

• Number of Grousers: Single

• Clipped: No

• Grease Track Type: GLT4

• Wear Sensor: No

• Track Stiffening System: Not Applicable

• Master Bolt Thread: Unknown

• Shoe Type: ES

• Seal And Lube Type: SALT

• Master Link Type: 5 Tooth Master
