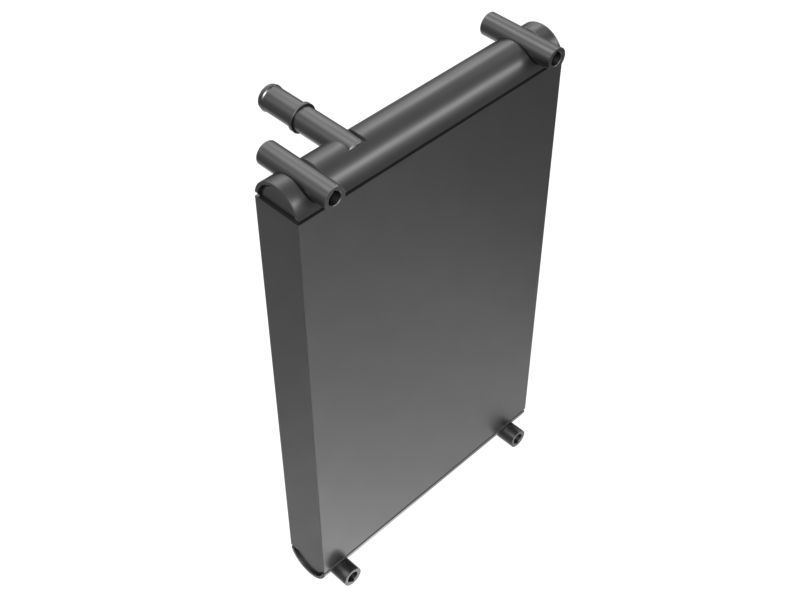

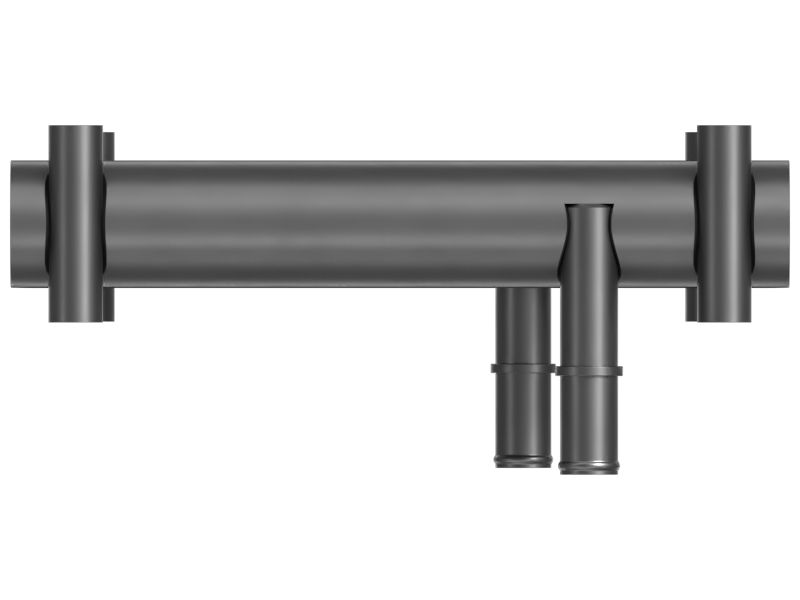

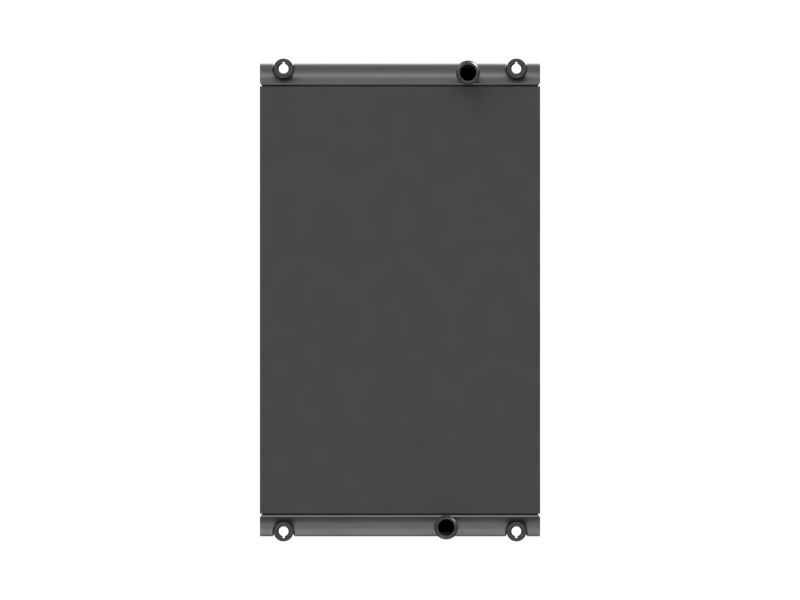

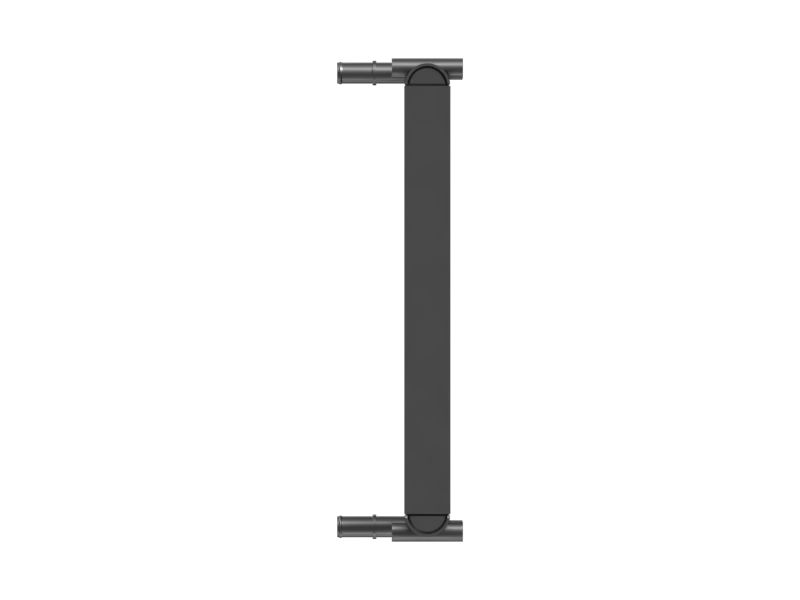

641-9498: Hydraulic Oil to Air Cooler Core

The Hydraulic Oil to Air Cooler Core is responsible for cooling hydraulic oil to maintain optimal operating temperatures within the hydraulic system's circuit, this core facilitates the transfer of heat from the oil to the surrounding air through a series of fins and tubes. As hydraulic systems generate considerable heat during operation, efficient cooling is required to prevent overheating, viscosity breakdown, and component damage. The core's design maximizes surface area contact with the airflow, enhancing heat dissipation and ensuring consistent performance.

Attributes:
• Heat rejection rate 60 kilowatts.
• Air flow is 113 kilograms per minute and water flow is 228 liters per minute.
• Tilted air fin 12.7 fins per inch.
• Turbulator type lanced and offsite 9.58 fins per inch.
• High thermal conductivity for efficient heat transfer.

Applications:
The Hydraulic Oil to Air Cooler Core is integrated into the hydraulic unit of equipment to regulate the temperature of hydraulic oil to dissipate heat generated during operation by transferring it to the surrounding air.

• Material: Alloy Aluminum
