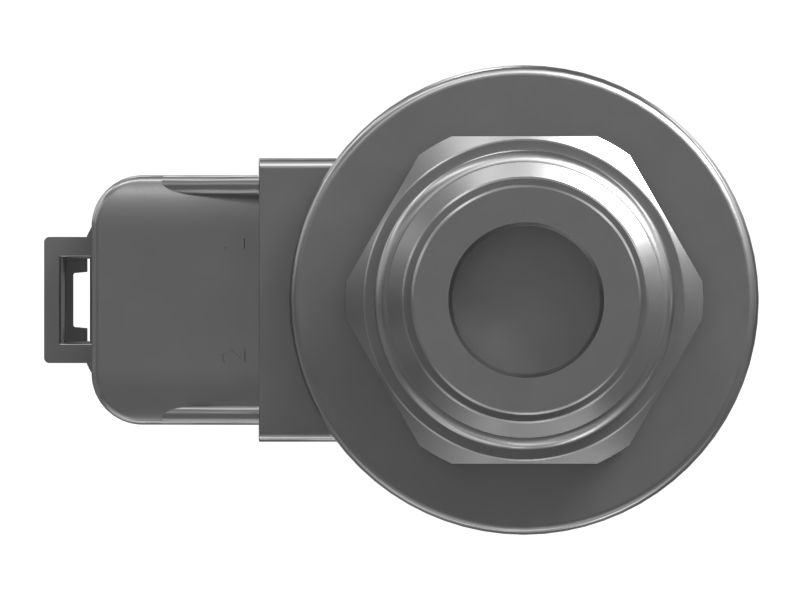

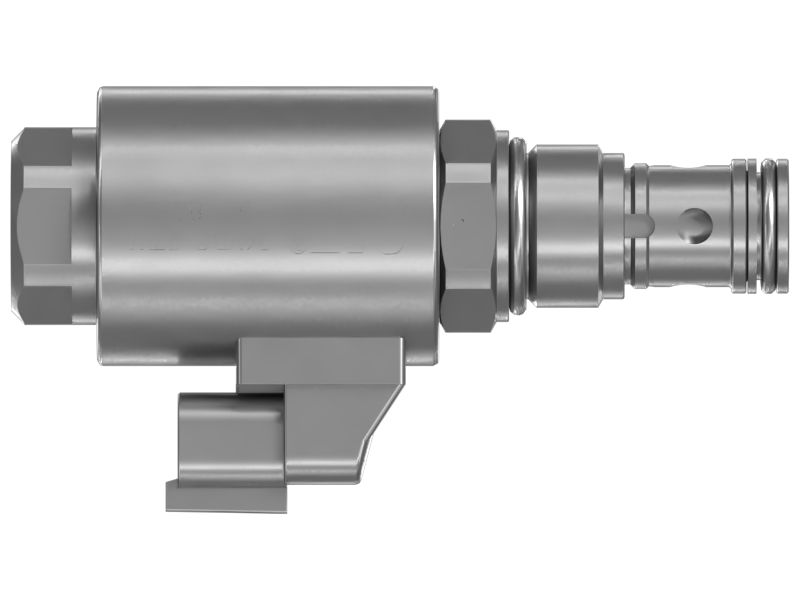

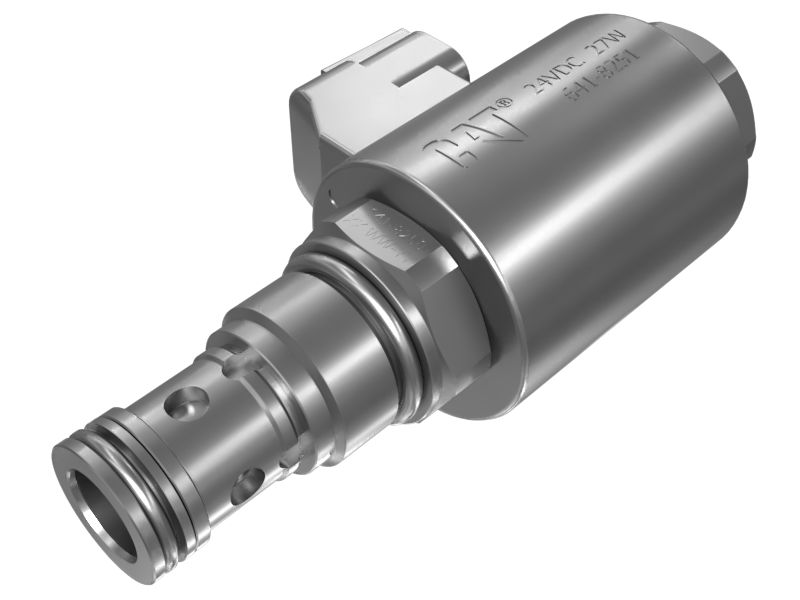

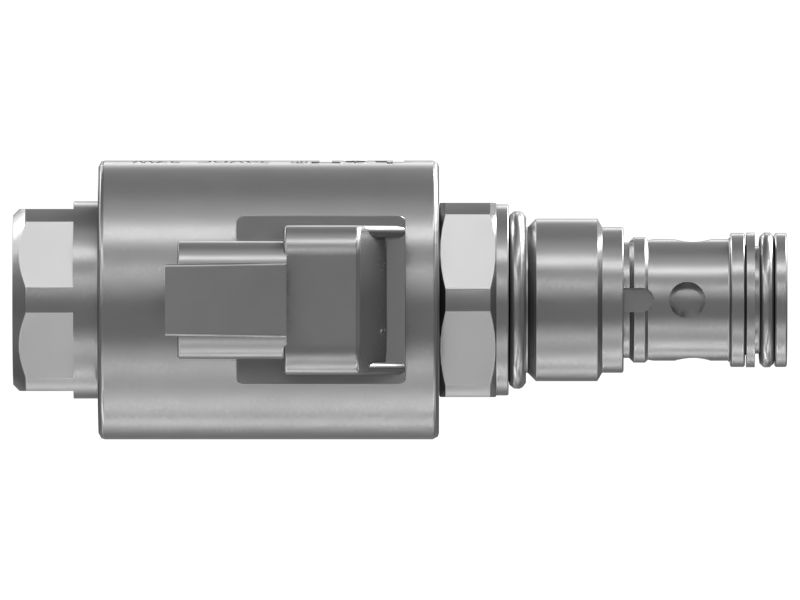

641-8250: 24 Volts Hydraulic Cold Start Solenoid Valve

The Hydraulic Cold Start Solenoid Valve is used to manage the flow of hydraulic fluid within the system. This valve is equipped with a solenoid that controls the opening and closing of the valve based on electrical signals. It maintains proper fluid flow during cold weather conditions, where hydraulic fluid may thicken and cause sluggish system performance. When activated, the solenoid ensures the valve opens, allowing the fluid to pass through freely, even in challenging low-temperature environments by ensuring proper flow in harsh conditions, it allows the hydraulic system to operate smoothly and prevents damage from inadequate fluid circulation.

Attributes:
• Ensures smooth hydraulic system performance.
• Provides a nominal flow rate of 180 liters per minute.
• Ensures smooth transition from cold to normal operations.

Applications:
The Hydraulic Cold Start Solenoid Valve is located within the hydraulic system, near the pump or reservoir to regulate hydraulic fluid flow, ensuring reliable operation in low temperatures.

• Weight (kg): 0.74

• Weight (lb): 1.62

• Voltage (volts): 24

• Temperature (°C): -30 °C to +110 °C

• Temperature (°F): -22°F to 230 °F

• Operating Pressure (kPa): 28000

• Operating Pressure (psi): 406.11

• Length (mm): 129

• Length (in): 5.08

• Width (mm): 70.3

• Width (in): 2.77

• Thread: 1-1/16"-12

• Flow Range (GPM): 47.55

• Flow Range (LPM): 180

• Material: Alloy Zinc,Carbon Steel
