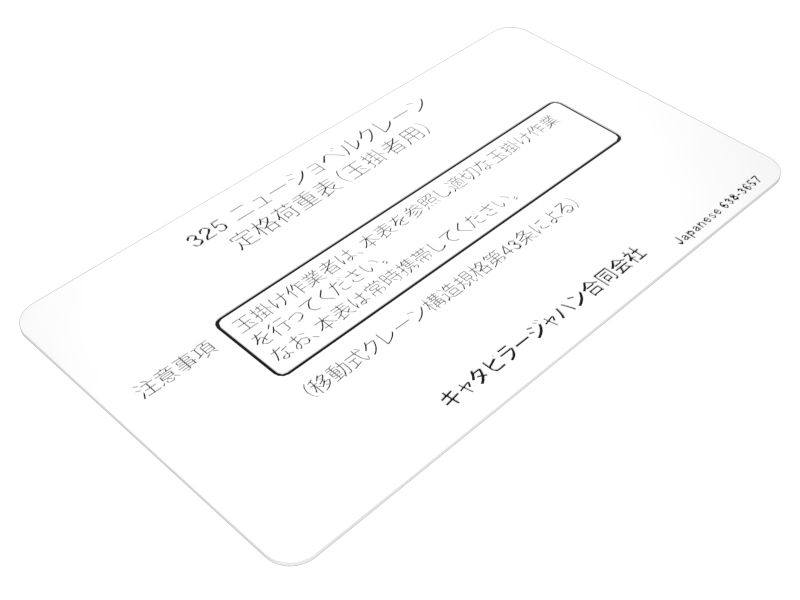

638-3657: Shovel Crane Rated Lift Capacity Instruction Plate

The Grade Wiring Extended Plate is used to enhance the routing of the blade sensor harness in the equipment. This component serves as an extension to the cover plate, offering additional length necessary for the secure attachment of the harness. Adding this length prevents the harness from experiencing excessive tension or strain, which leads to premature wear or failure. The extended plate ensures that the harness remains in place even under rigorous operating conditions, contributing to the overall reliability of the equipment. It effectively manages the harness routing, reducing the risk of damage and ensuring consistent performance of the blade sensors by keeping them properly connected.

Attributes:
• Provides a secure extension to the cover plate for enhanced harness routing.
• Resistant to vibrations, ensuring proper positioning.

Applications:
The Grade Wiring Extended Plate is used to provide a reliable and secure method for extending the cover plate, allowing for additional length and proper strain relief of the blade sensor harness, ensuring that the harness is correctly routed and protected, which in turn preserves the accuracy and reliability of the blade sensor.

• Length (in): 4.92

• Length (mm): 125

• Material: Plastic,Polycarbonate Plastic

• Thickness (in): 0.03

• Thickness (mm): 0.8

• Weight (lb): 0.01

• Width (in): 2.76

• Width (mm): 70
