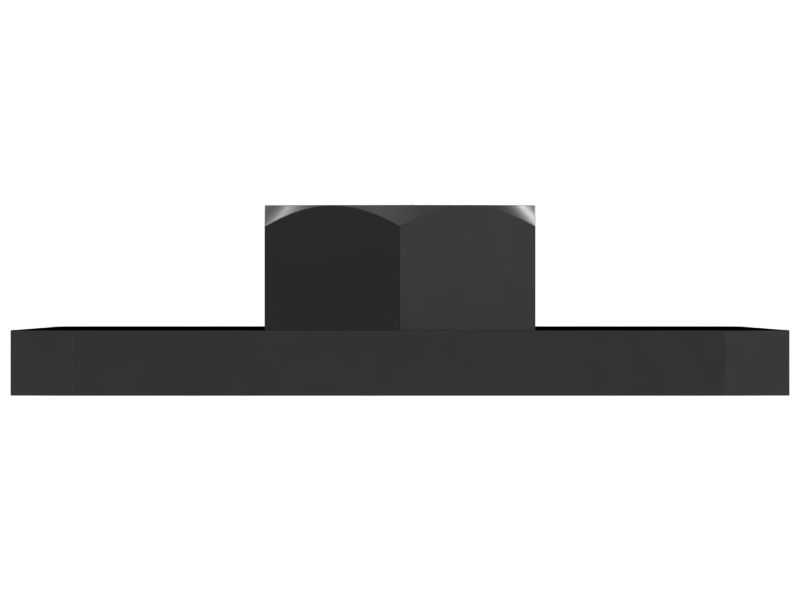

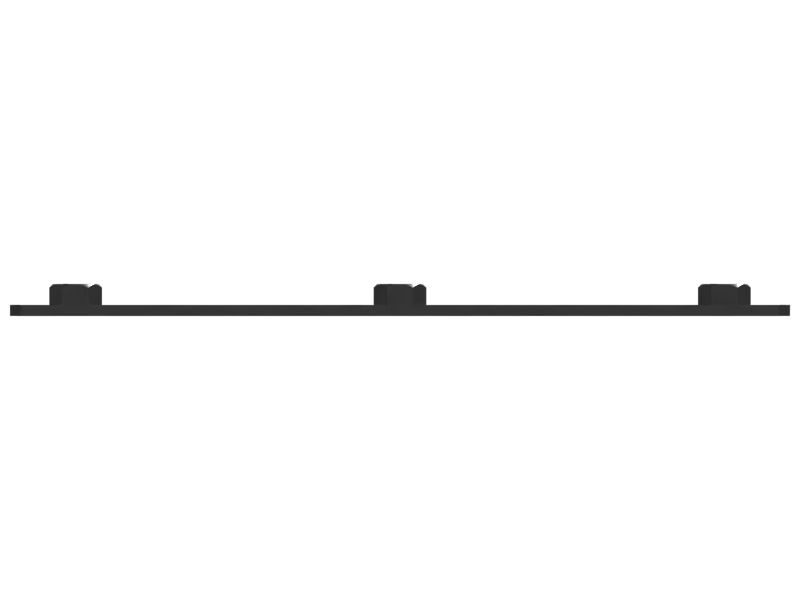

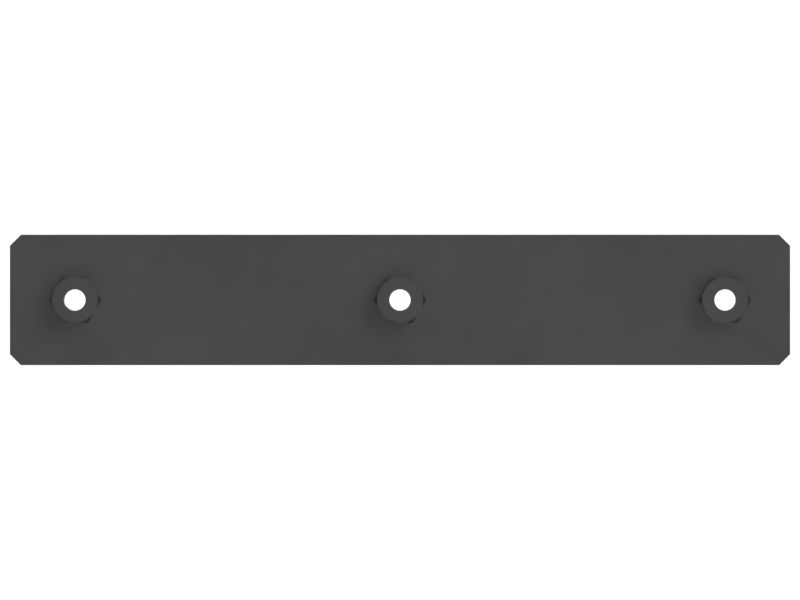

636-6077: 5mm Thick Exhaust Support Sheet

The Primary Engine Arrangement is a comprehensive system that organizes and connects the main engine components, including the crankshaft, pistons, cylinders, and fuel system. It serves as the core structure of the equipment, providing support and alignment for the engine parts while facilitating the transfer of power generated by combustion. It integrates fuel injection, ignition, and exhaust systems to facilitate smooth operation, its function is paramount, as it translates fuel energy into rotational force. This arrangement ensures smooth functionality and maximizes power output.

Attributes:
• Provides 157.6 brake horsepower at 1800 revolutions per minute.
• Advanced engine management system for control.
• Withstands high loads and high torque.
• Reinforced mounting points for stability.
• Ensures proper lubrication of engine components to reduce friction and wear.

Applications:
The Primary Engine Arrangement is centrally located within the equipment to house and organize the engine components compactly and efficiently, ensuring proper alignment and functionality facilitating power generation through combustion, and transmitting it to other mechanical components for different operations.

• Internal Thread: M12x1.75

• Overall Height (in): 0.58

• Overall Height (mm): 14.7

• Overall Length (in): 14.17

• Overall Length (mm): 360

• Overall Width (in): 2.36

• Overall Width (mm): 60

• Thickness (in): 0.2

• Thickness (mm): 5

• Weight (kg): 0.89

• Weight (lb): 1.97

• Material: Alloy Mixed
