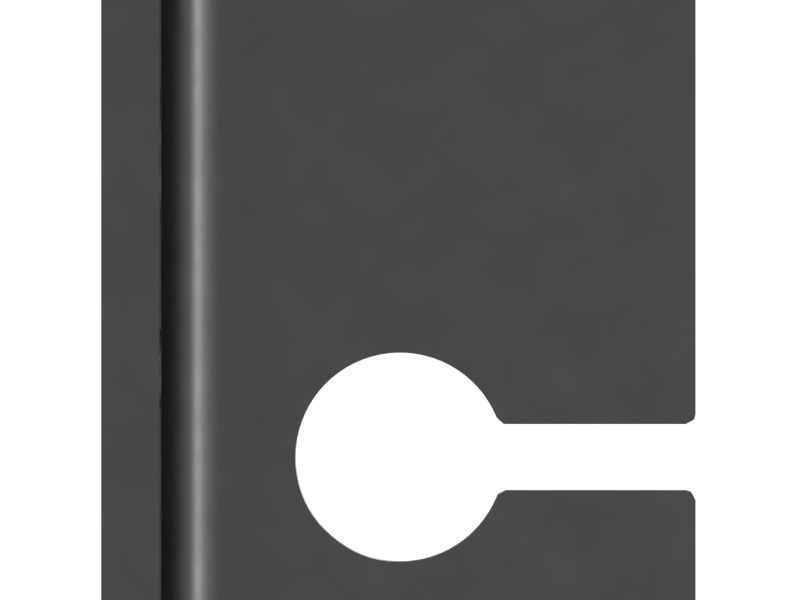

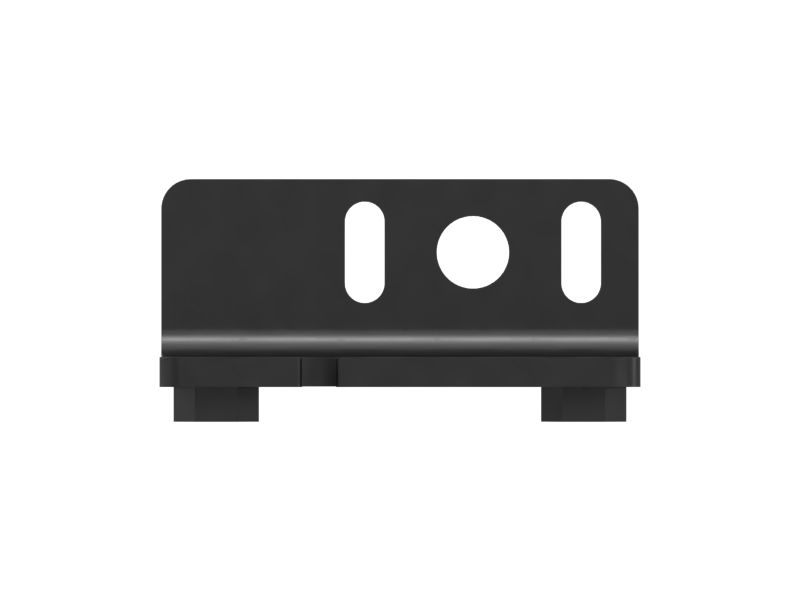

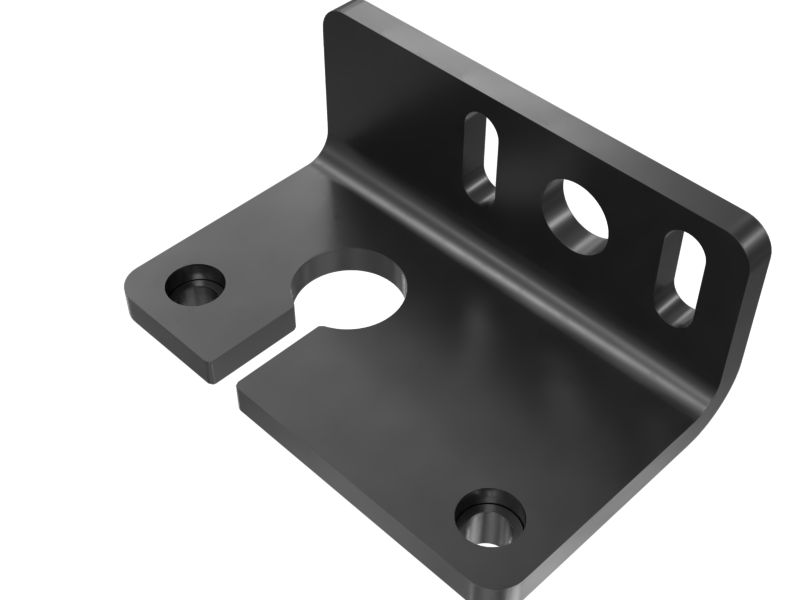

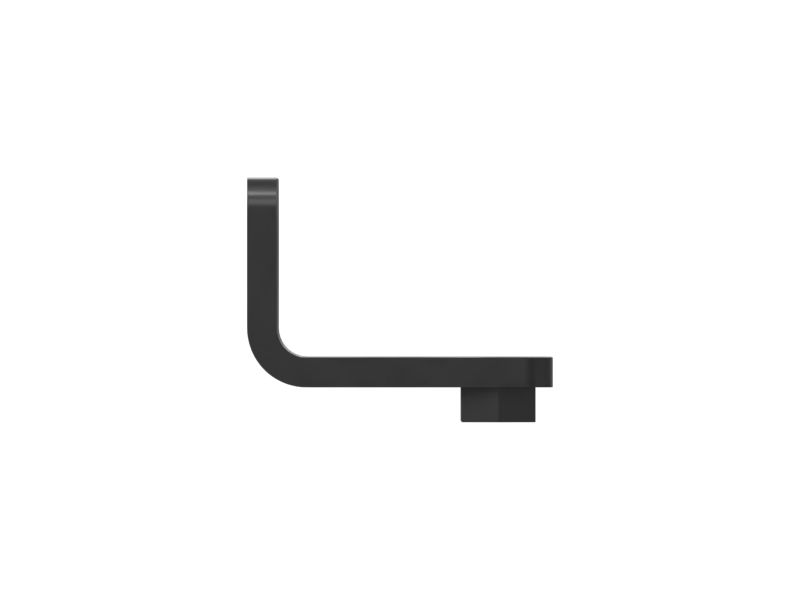

635-3809: Coupler Harness Bracket

The Wiring Support Bracket is designed to provide secure support for wiring harnesses and cables. This bracket organizes and manages the electrical unit, ensuring that the wiring remains properly routed and protected from damage. It allows for easy installation and adjustment, facilitating efficient setup and maintenance of the electrical connections. By securely holding the wiring in place, it enhances the reliability and safety of the electrical unit, contributing to the overall performance of the equipment.

Attributes:
• Designed to withstand environmental factors like temperature and humidity.
• Corrosion-resistant materials for long-lasting durability.
• High-quality materials for enhanced durability and longevity.
• Weather-resistant properties for durability.

Applications:
The Wiring Support Bracket is installed within the electrical unit of equipment, securely holding wiring harnesses and cables in place to optimize their performance and reliability during operation.

• Overall Length (mm): 98

• Overall Length (in): 3.86

• Overall Height (mm): 62

• Overall Height (in): 2.44

• Overall Width (mm): 49.6

• Overall Width (in): 1.95

• Material Thickness (mm): 6

• Material Thickness (in): 0.24

• Nut Type: Weld Nut

• Thread Size (dia x pitch) (mm): M8 x 1.25 (2x)

• Color: Medium Gloss Black

• Material: Carbon Steel,Alloy Mixed

• Weight (kg): 0.39

• Weight (lb): 0.87
