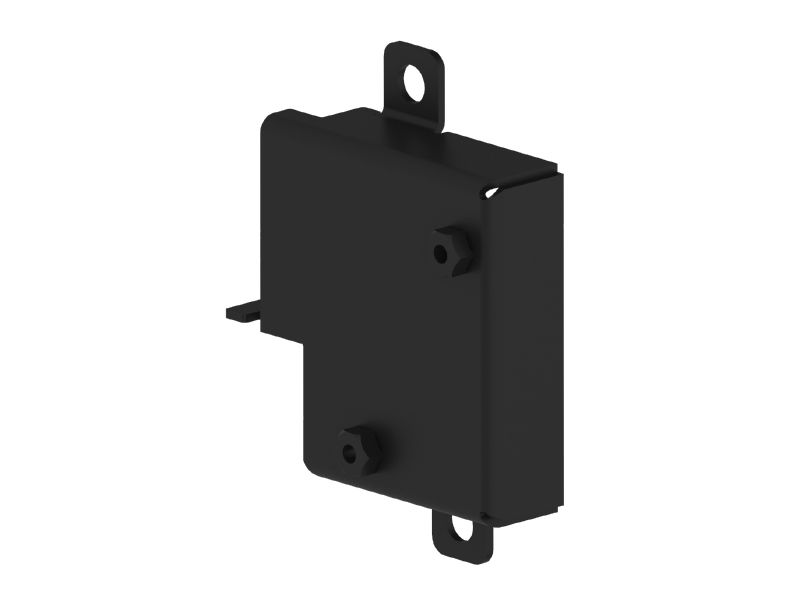

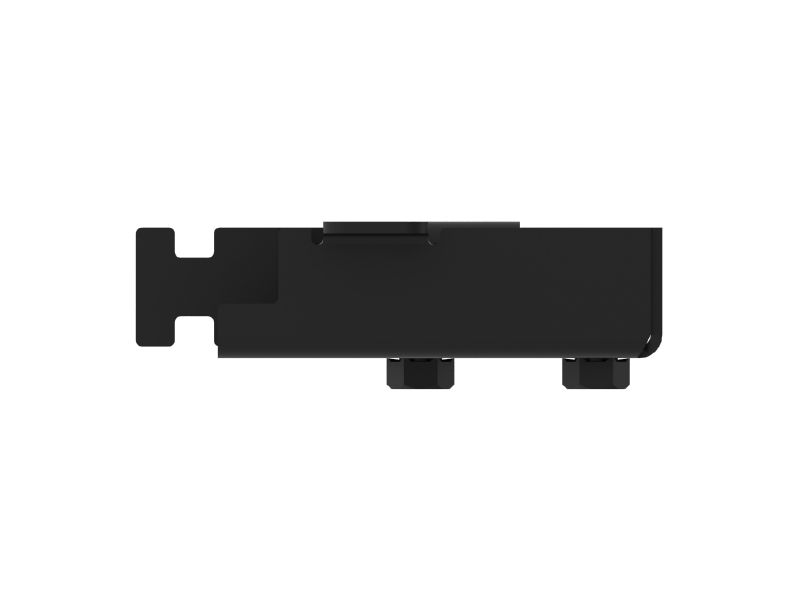

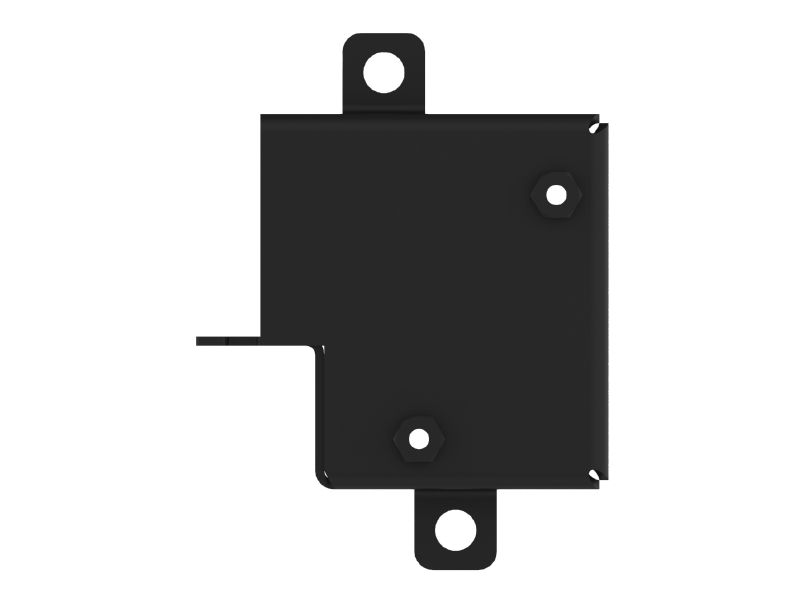

635-3119: Position Sensor Mounting Bracket

The Position Sensor Mounting Bracket is a component used to securely attach position sensors and provide a stable and reliable mounting platform for position sensors, which are instrumental in monitoring the movement and position of different equipment components, this bracket ensures that position sensors remain securely in place, even under harsh operating conditions. The accurate design of the mounting bracket allows for accurate positioning of sensors, optimizing their performance and ensuring accurate monitoring and control of equipment operations.

Attributes:
• Robust build for stability and durability.
• Resistant to corrosion and environmental factors.
• Designed to withstand mechanical stress and vibration.

Applications:
The Position Sensor Mounting Bracket is installed at designated points within the equipment to securely hold the position sensor in place and optimize its performance during operation.

• Overall Length (mm): 135

• Overall Length (in): 5.31

• Overall Height (mm): 176

• Overall Height (in): 6.93

• Overall Width (mm): 42.9

• Overall Width (in): 1.69

• Material Thickness (mm): 3

• Material Thickness (in): 0.12

• Nut Type: Weld Nut

• Thread Size (dia x pitch) (mm): M8X1.25 (2x)

• Approx. Weight (kg): 0.61

• Approx. Weight (lb): 1.34

• Material: Carbon Steel,Alloy Mixed
