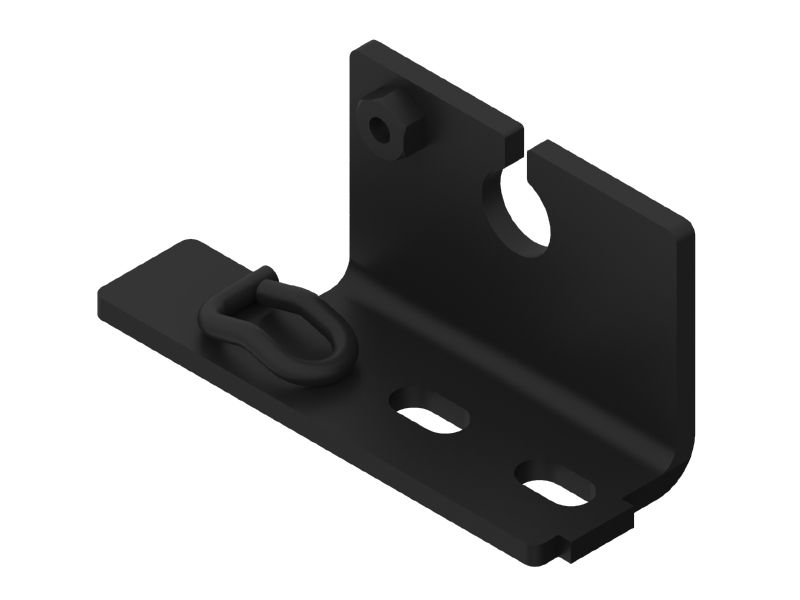

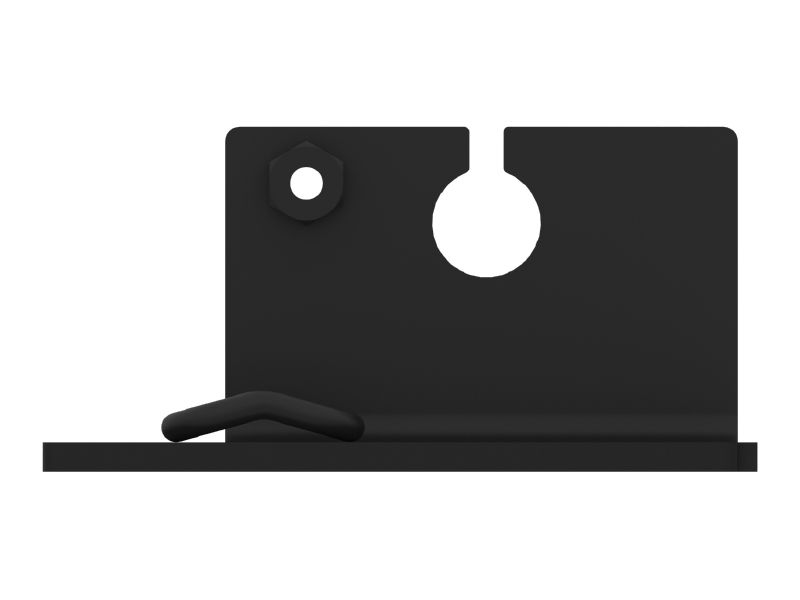

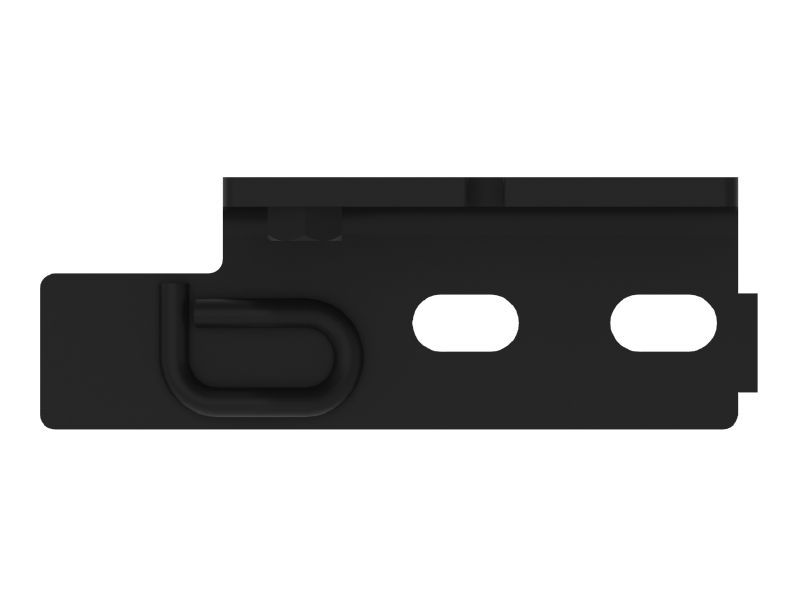

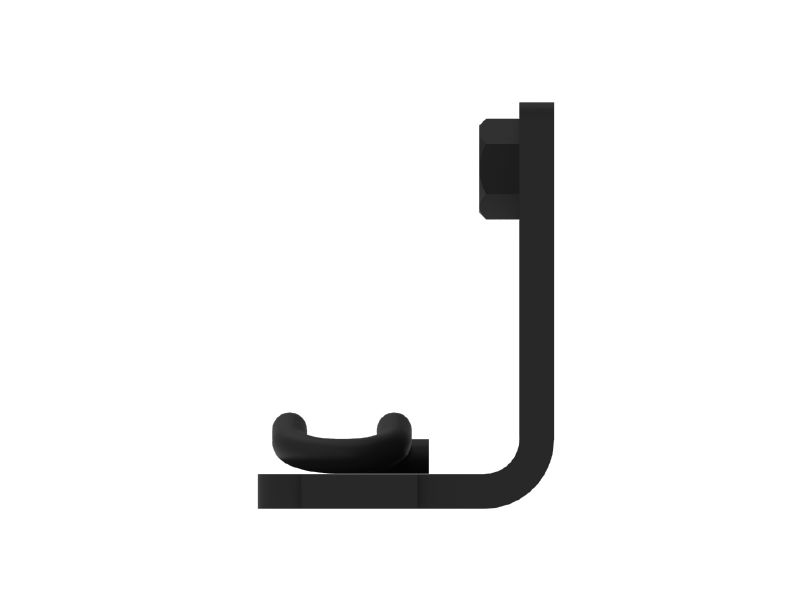

635-3103: 6mm Sensor Harness Mounting Bracket

The Position Sensor Harness Mounting Bracket is designed to provide a stable and secure mounting solution for the position sensor harness, this bracket ensures the position sensor harness remains properly positioned to facilitate accurate sensing of different parameters for equipment operation, maintaining the integrity of the sensor harness and preventing damage and dislocation during operation. By securely holding the sensor harness in place, this mounting bracket enhances reliability and performance, contributing to the overall efficiency of the equipment.

Attributes:
• Resistant to corrosion and environmental factors.
• Provides strain relief to prevent wire damage.
• Designed to withstand mechanical stress and vibration.
• Secure fit to prevent accidental dislodging.

Applications:
The Position Sensor Harness Mounting Bracket is installed at designated points within the equipment's frame to securely hold the position sensor harness in place and provide stability, ensuring proper positioning of the sensor harness for optimal sensing performance.

• Overall Length (mm): 145

• Overall Length (in): 5.71

• Overall Height (mm): 70

• Overall Height (in): 2.76

• Overall Width (mm): 51

• Overall Width (in): 2.01

• Material Thickness (mm): 6

• Material Thickness (in): 0.24

• Nut Type: Weld Nut

• Thread Size (dia x pitch) (mm): M8X1.25

• Approx. Weight (kg): 0.59

• Approx. Weight (lb): 1.3

• Material: Carbon Steel,Alloy Mixed
