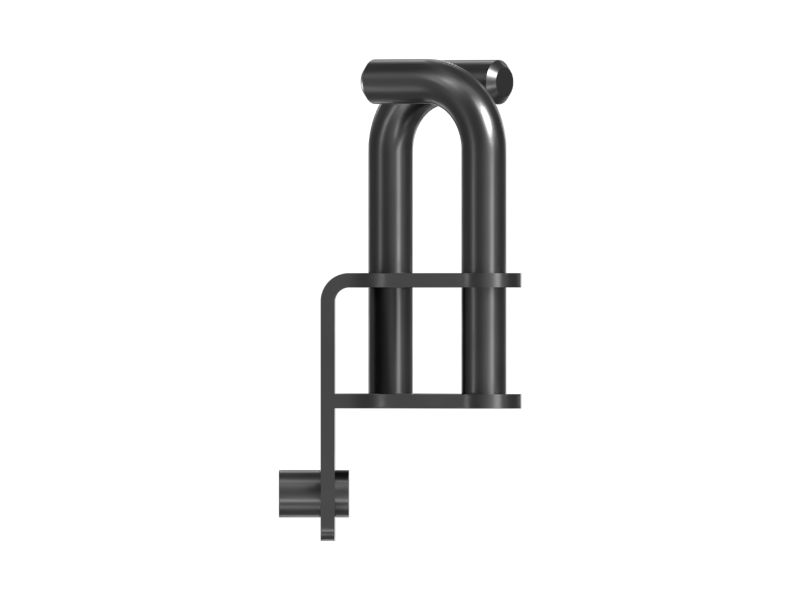

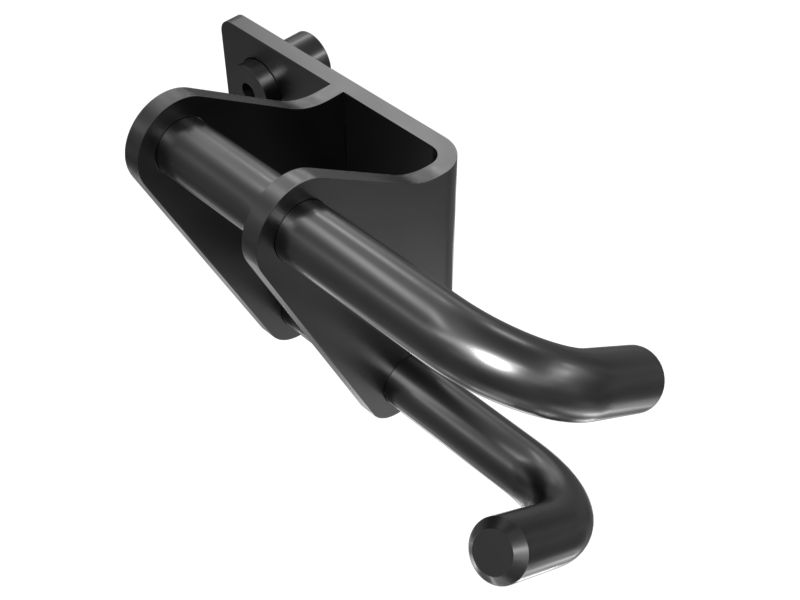

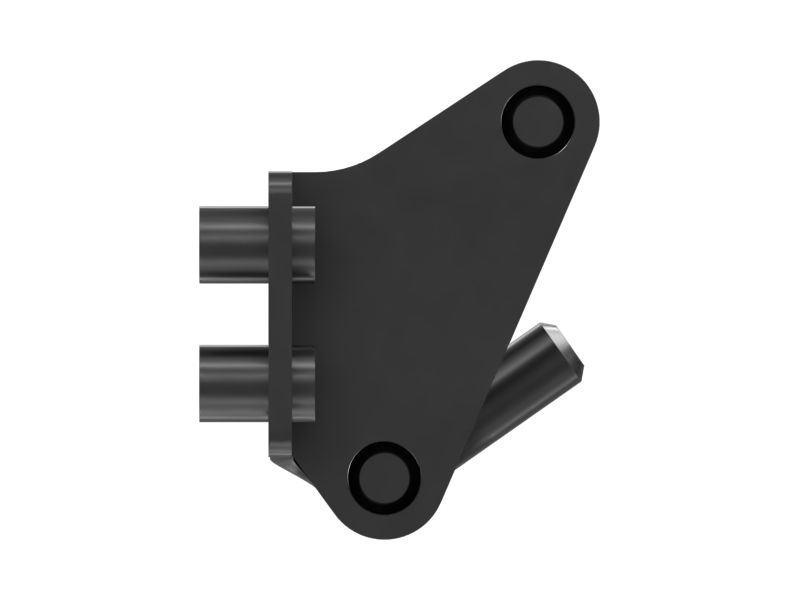

634-2822: Hydraulic Hose Bracket

The Hose Guide Bracket is designed to guide and organize hoses effectively, this bracket ensures secure mounting and positioning of hoses, preventing tangling, kinking, and damage during operation. It facilitates quick and hassle-free setup of hoses, minimizing downtime and optimizing workflow, by providing a reliable guide for hoses, the bracket enhances safety and efficiency, contributing to the overall performance of the equipment.

Attributes:
• Resistant to impacts and vibrations.
• Weather-resistant materials for outdoor use.
• Designed to minimize kinks and tangles in hoses.
• Designed to reduce hose wear and prolong lifespan.

Applications:
The Hose Guide Bracket is installed at points along the equipment's frame, providing guidance and support for hoses in areas where they need to be routed and organized, enhancing safety and efficiency during operation.

• Overall Length (mm): 125

• Overall Length (in): 4.92

• Overall Height (mm): 207

• Overall Height (in): 8.15

• Overall Width (mm): 104

• Overall Width (in): 4

• Thread Size (dia x pitch) (mm): M8 x 1.25 (2x)

• Rod Diameter (mm): 19.5

• Rod Diameter (in): 0.77

• Approx. Weight (kg): 1.57

• Approx. Weight (lb): 3.45

• Material: Alloy Steel,Alloy Zinc
