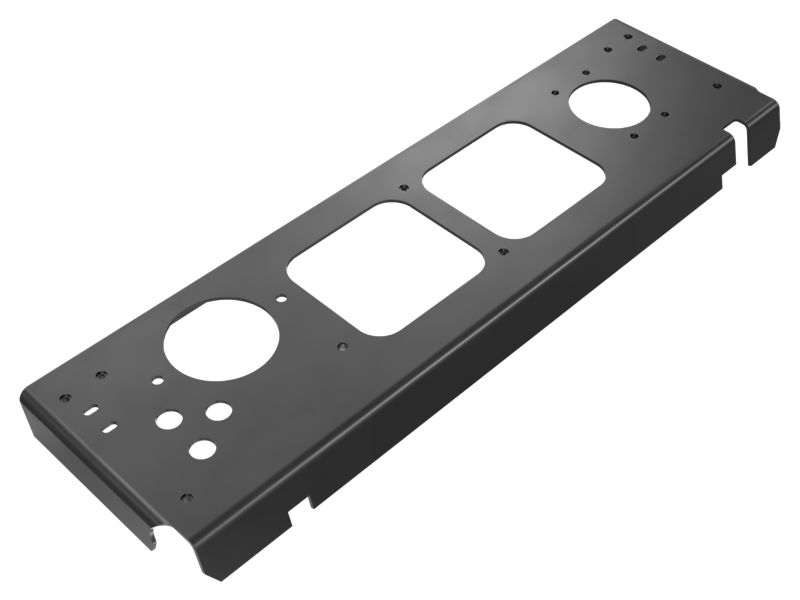

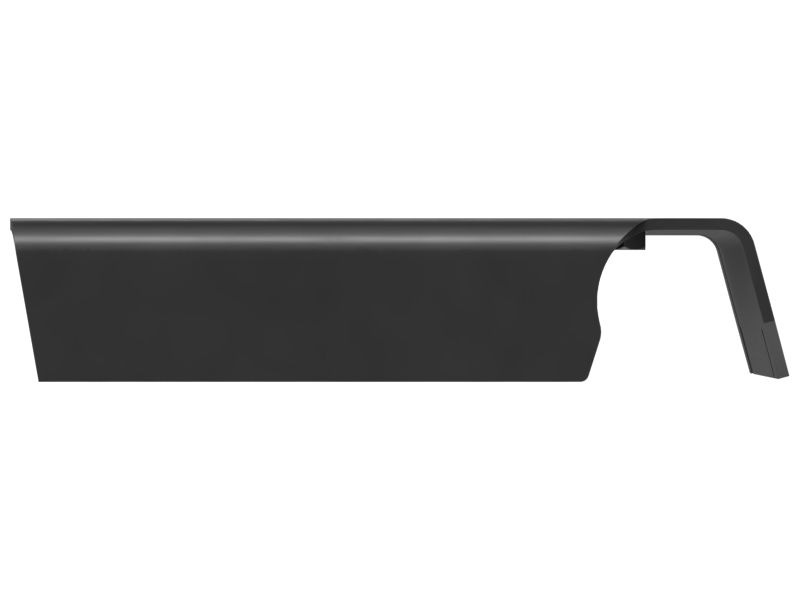

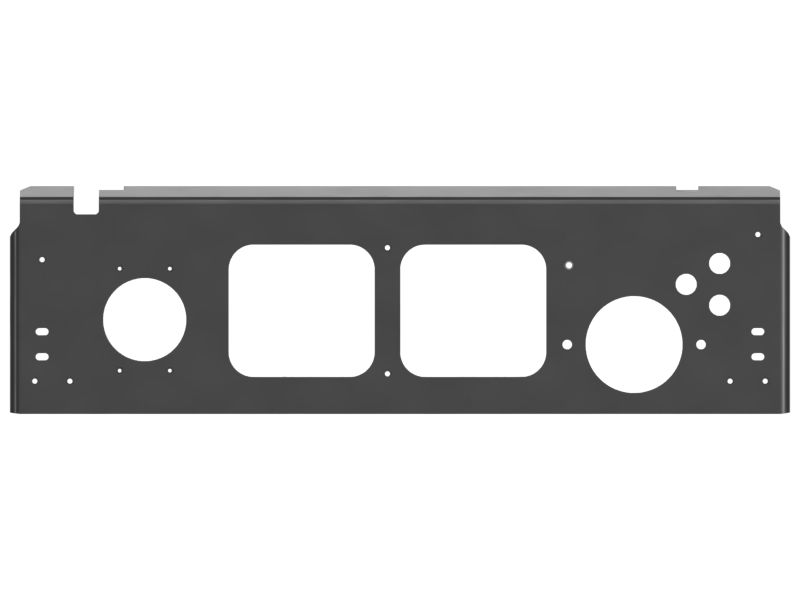

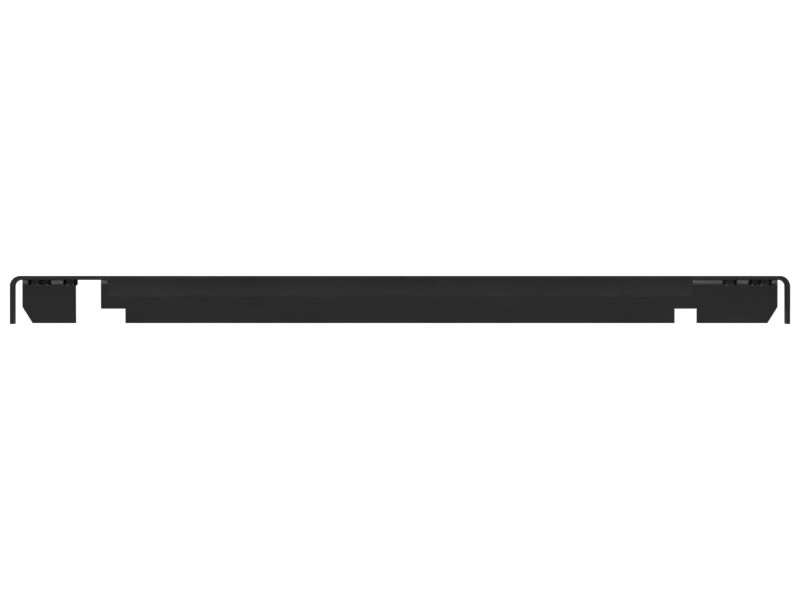

632-8066: Cooler Enclosure Plate

The Hybrid Lines connected to the jacket water heater are integral to the engine’s thermal management system. These lines are used to efficiently circulate coolant through the jacket water heater, which is responsible for maintaining the engine's temperature within optimal limits. The hybrid lines ensure that coolant is properly routed to and from the heater, allowing for effective heat exchange and temperature control. This process is necessary to prevent the engine from overheating or operating at suboptimal temperatures, both of which can lead to decreased performance and potential damage. The accurate routing of these lines helps in achieving a uniform temperature distribution throughout the engine, ensuring that all components operate within their designated thermal range.

Attributes:
• Equipped with reinforced layers to handle high-pressure conditions.
• Ensures consistent fluid flow for stable heating performance.
• Integrated thermal insulation minimizes heat loss and improves efficiency.

Applications:
The Hybrid Lines connected to the jacket water heater are used in the engine cooling system of equipment to regulate engine temperature. They ensure efficient coolant circulation to maintain optimal engine performance.

• Hole Size (in): 0.47, 1.02, 3.94

• Hole Size (mm): 12, 25.8, 100

• Internal Thread: M8x1.25

• Overall Height (in): 10.71

• Overall Height (mm): 272

• Overall Length (in): 36.73

• Overall Length (mm): 933

• Overall Width (in): 2.21

• Overall Width (mm): 56.1

• Weight (kg): 7.58

• Weight (lb): 16.72

• Material: Carbon Steel,Alloy Steel,Alloy Mixed
