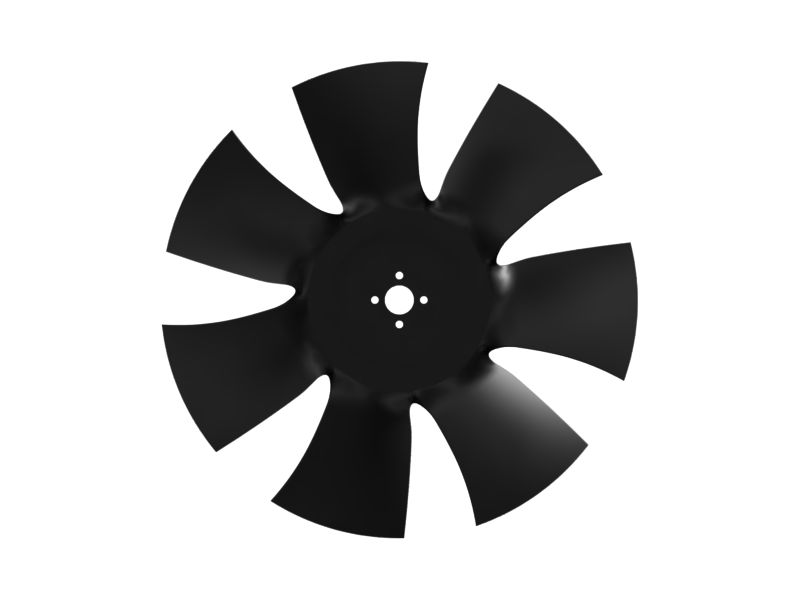

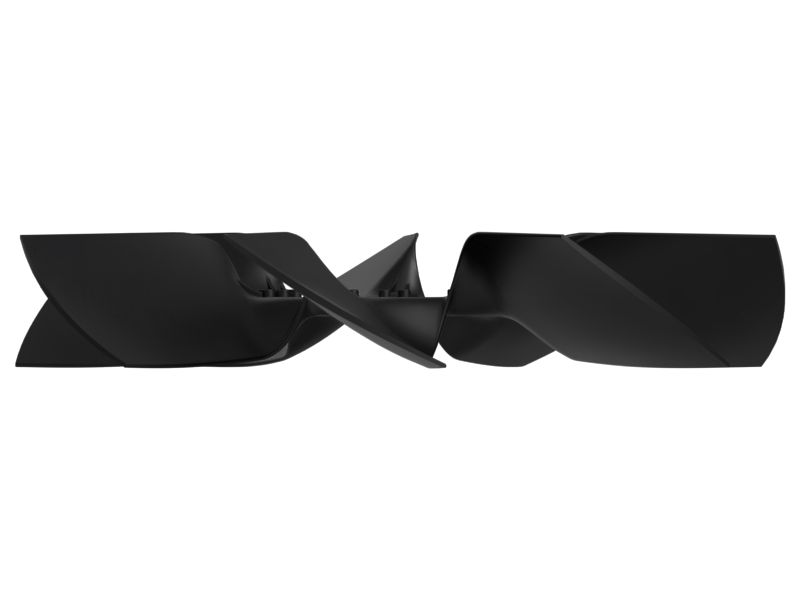

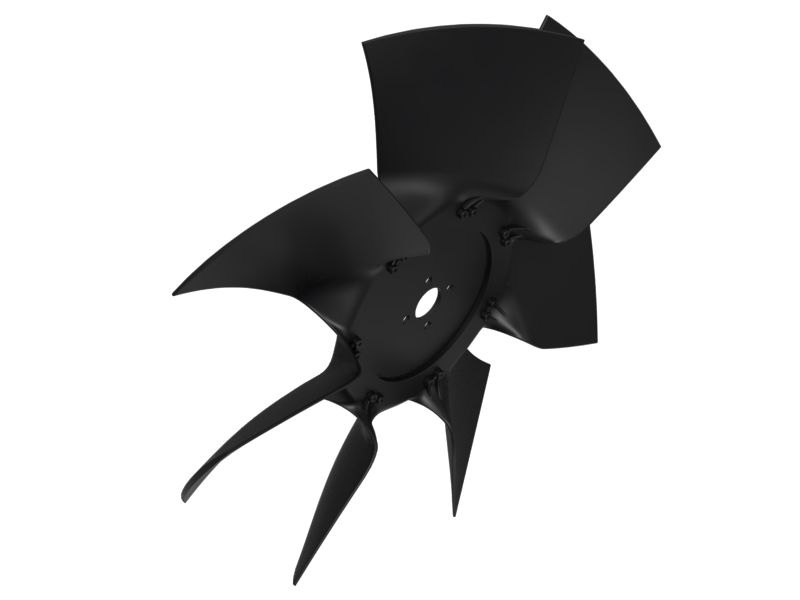

632-6268: 7 Blade Cooling Fan

The Chassis Frame forms the backbone that supports and connects different systems and components. It withstands substantial loads and stresses, ensuring the equipment's overall stability and operational efficiency. The Chassis Frame maintains structural integrity under demanding conditions, distributing the weight of the equipment and the loads it carries across its entire framework.

Attributes:
• Resistant to bending and deformation under loads.
• Provides a base for the attachment of operator cab.
• Helps in distributing the weight of the equipment evenly.

Applications:
The Chassis Frame is the structural component that runs along the base of equipment, forming the platform to which all other components, like engines, transmissions, and hydraulic systems, are attached.

• Hole Size (in): 0.26

• Hole Size (mm): 6.5

• Inner Diameter (in): 0.95

• Inner Diameter (mm): 24

• Outer Diameter (in): 15.35

• Outer Diameter (mm): 390

• Weight (kg): 0.99

• Weight (lb): 2.18

• Material: Plastic Plastic,Corrosion Preventative Fluid
