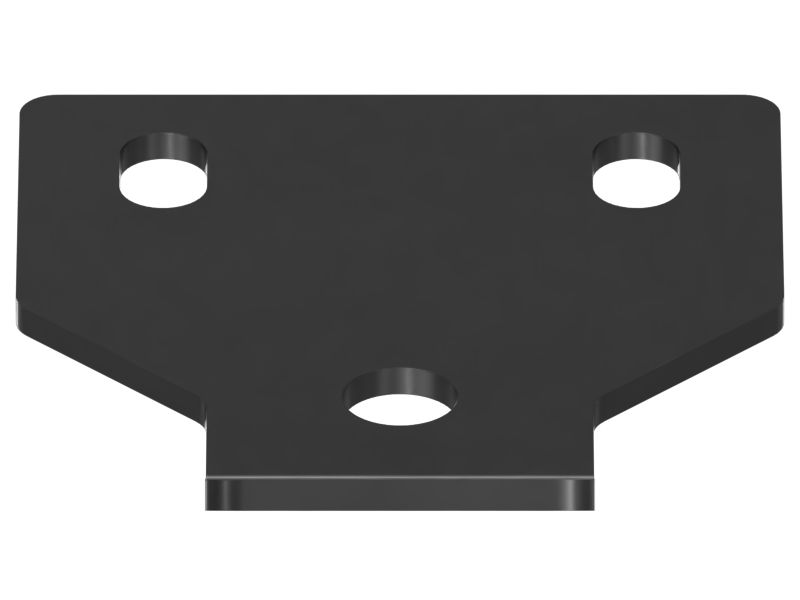

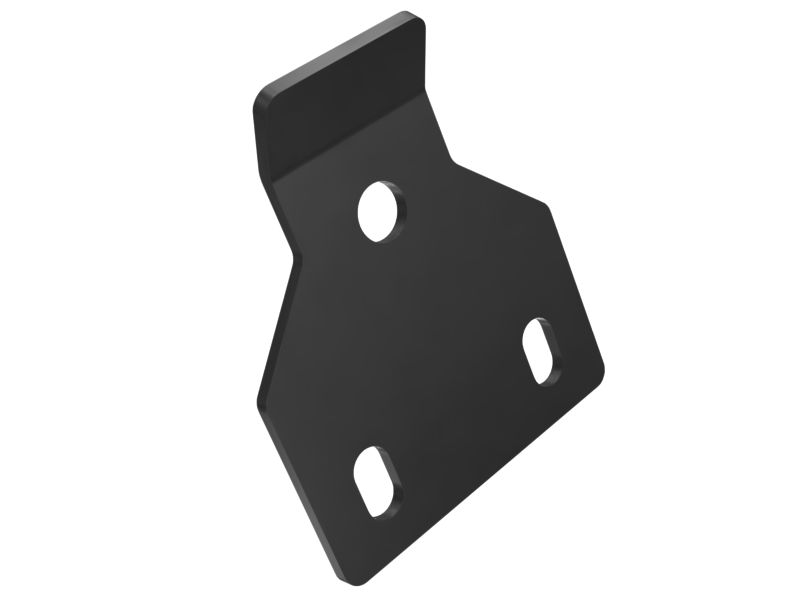

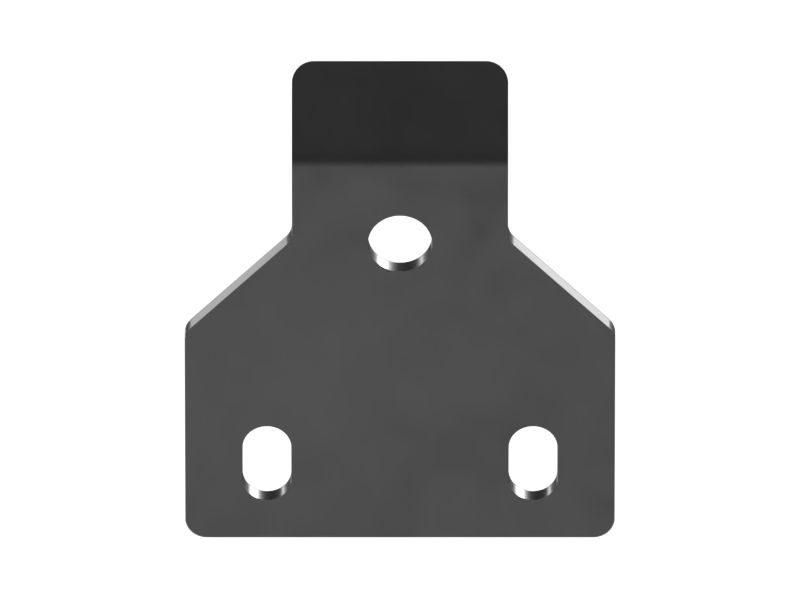

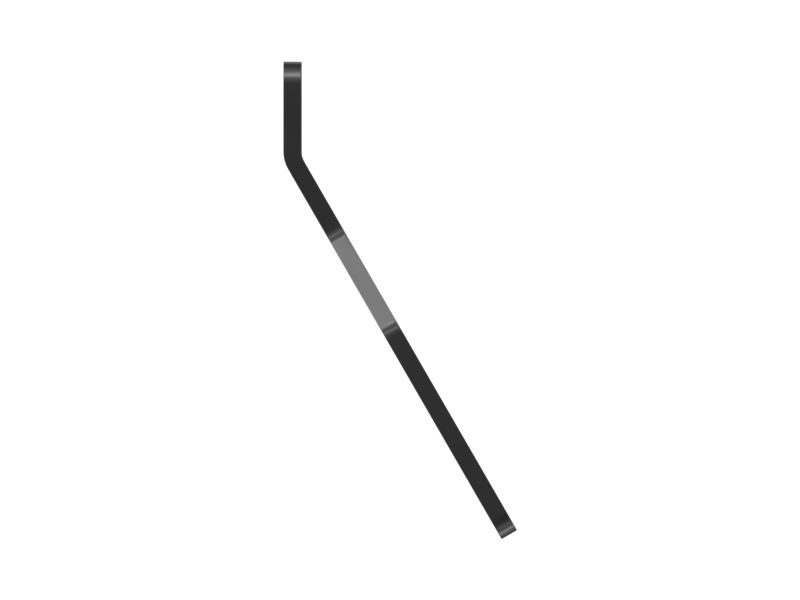

632-2151: Access Door Latch Receiver Plate

An Access Door Latch Receiver Plate serves to support the latch assembly in securing the access door of the compartment along with the help of fasteners. The plate is made of durable steel and consists of mounting holes to attach the plate to the cover assembly. It is used to lock the spring latch assembly, preventing excessive movement or opening of the access door, and ensuring a secure connection. This plate ensures that the latch engages securely when the door is closed.

Attributes:
• Prevents unwanted rattling or vibration of the spring latch within the access door during operation
• Transfers the forces and stresses generated during machine operation, preventing deformation, sagging, or failure of the latch

Applications:
An Access Door Latch Receiver Plate is used to securely lock the access door's latch in place within the compartment in the engine after-treatment unit, preventing any unwanted movement or dislocation during operation by providing a stable connection with the latch.

• Material: Steel,Carbon Steel

• Height (mm): 100

• Height (in): 3.937

• Width (mm): 15

• Width (in): 0.59

• Thickness (mm): 4

• Thickness (in): 0.16

• Hole Size (mm): 15

• Hole Size (in): 0.59

• Weight (kg): 0.28

• Weight (lb): 0.617
