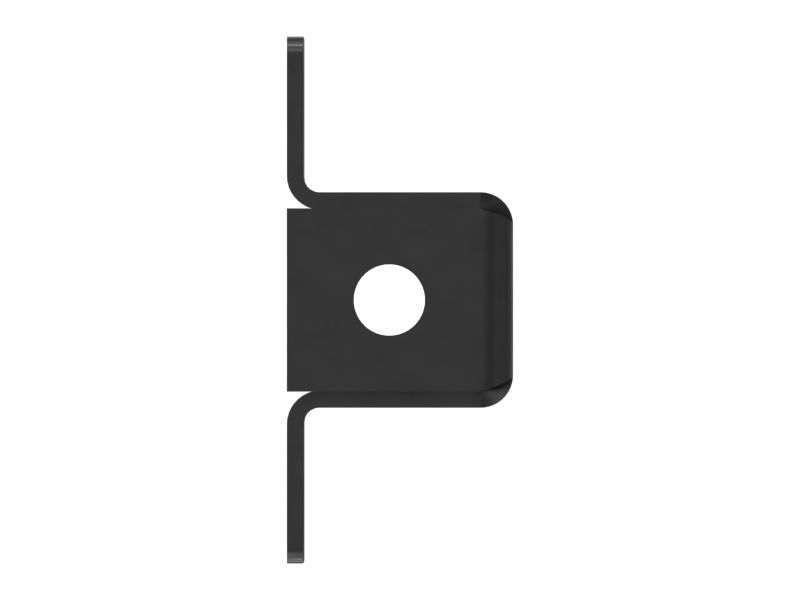

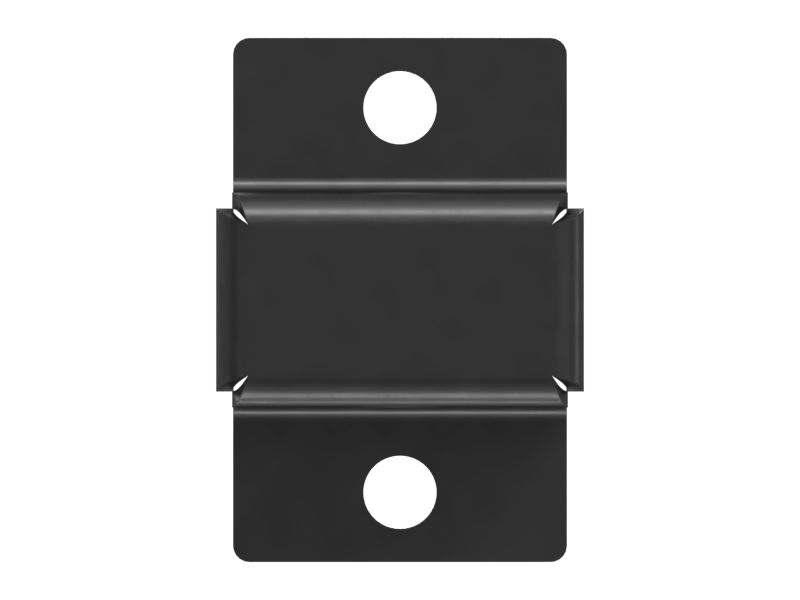

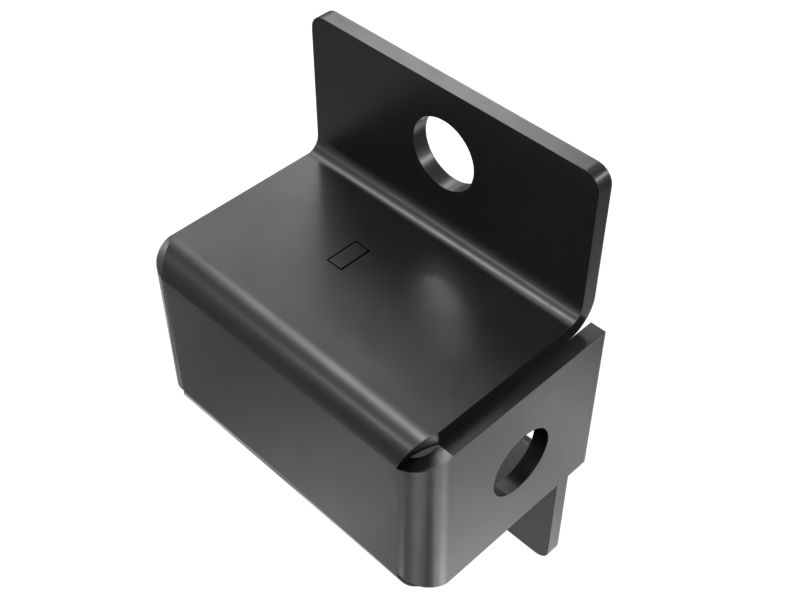

632-2150: Access Door Spring Latch Mounting Bracket

An Access Door Spring Latch Mounting Bracket is used to attach the latch assembly to the access door of a compartment. It provides a secure mounting point for the latch assembly, enabling the easy opening and closing of the access door while ensuring it remains securely closed when needed. It includes a bracket and plates that are made of durable steel to withstand the forces exerted during operation. The mounting bracket is positioned on the access door, allowing the latch to be attached securely and aligned properly.

Attributes:
• Provided with 2 in-line holes of diameter 13.5mm to attach the rod and spring assembly to the bracket
• Prevents unwanted rattling or vibration of the latch during operation

Applications:
An Access Door Spring Latch Mounting Bracket is used to provide a robust base for attaching the spring latch to the access door of the compartment in the engine after-treatment unit. It ensures a strong and reliable connection, preventing the latch from becoming loose or disengaged during operation.

• Material: Steel,Carbon Steel,Alloy Steel

• Overall Length (mm): 68.4

• Overall Length (in): 2.692

• Overall Height (mm): 98

• Overall Height (in): 3.858

• Overall Width (mm): 42

• Overall Width (in): 1.653

• Thickness (mm): 3

• Thickness (in): 0.12

• Weight (kg): 0.3

• Weight (lb): 0.665
