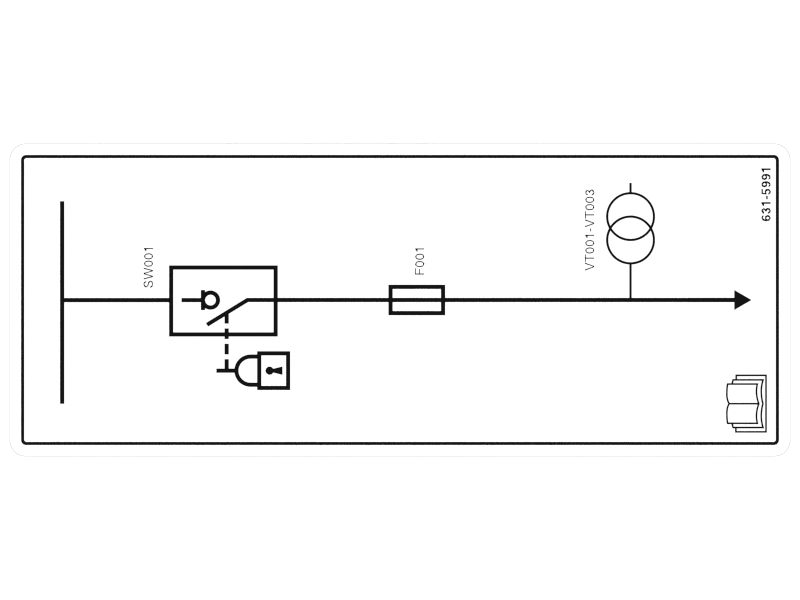

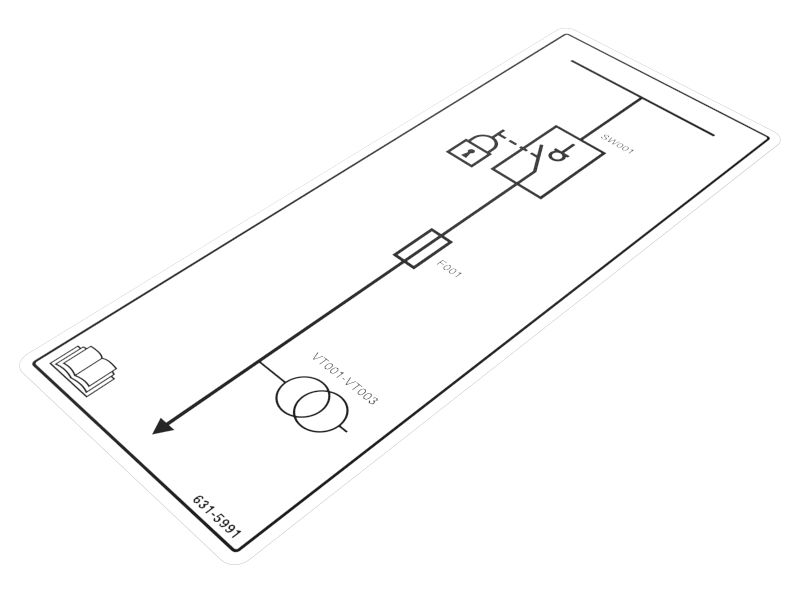

631-5991: Wiring Schematic Film

The Wiring Schematic Film provides a roadmap for operators to navigate the complex network of electrical components. By referencing the film, operators can pinpoint the location of specific wires, connectors, and components, enabling systematic troubleshooting and repair procedures. Its detailed connections streamline maintenance tasks, minimizing downtime and maximizing productivity.

Attributes:
• Provides accurate depiction of wiring layouts and connections.
• Clearly labeled markings for easy identification of components.
• Designed for long-term durability and reliability.
• Resistant to water, oil, and other fluids.

Applications:
The Wiring Schematic Film serves as a detailed visual guide to the intricate electrical connections within the equipment, facilitating efficient troubleshooting and maintenance operations while ensuring compliance with standards and regulations.

• Material: Polycarbonate Plastic
