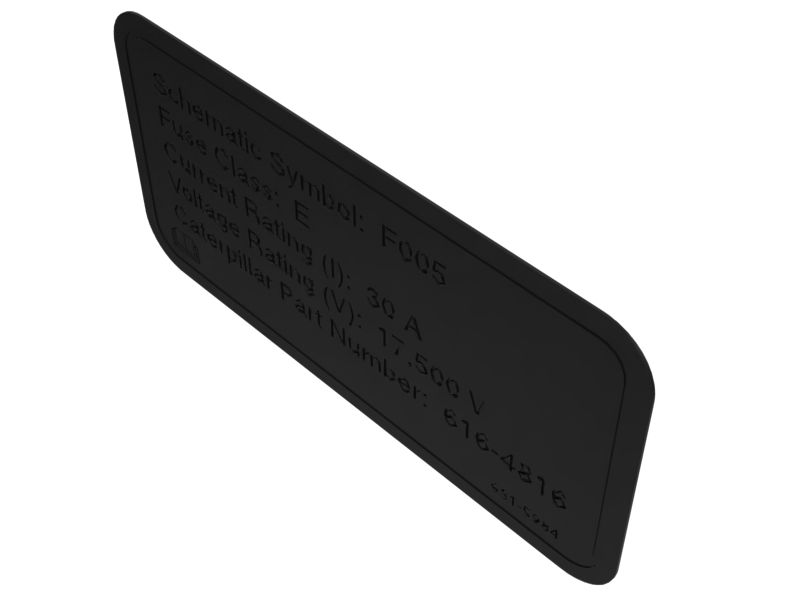

631-5984: Capacitor Fuse Identification Film

The Capacitor Fuse Identification Film is designed to provide comprehensive details about the capacitor fuse used in the power correction factor fuse box. The inclusion of the schematic symbol, fuse class, current rating, voltage rating, and Caterpillar part number ensures that operators and maintenance personnel have all the necessary information for quick and accurate identification.

Attributes:
• Features the schematic symbol "F005" for quick visual recognition.
• Identifies the fuse class as "E" for classification purposes.
• Provides the current rating and the voltage rating of the capacitor fuse as 30 Ampere and 17,500 Volts respectively.

Applications:
The Capacitor Fuse Identification Film is part of the power correction factor fuse film pasted near the capacitor fuse and serves as a visual guide, allowing operators and maintenance personnel to quickly identify and reference details about the capacitor fuse.

• Material: Polycarbonate Plastic
