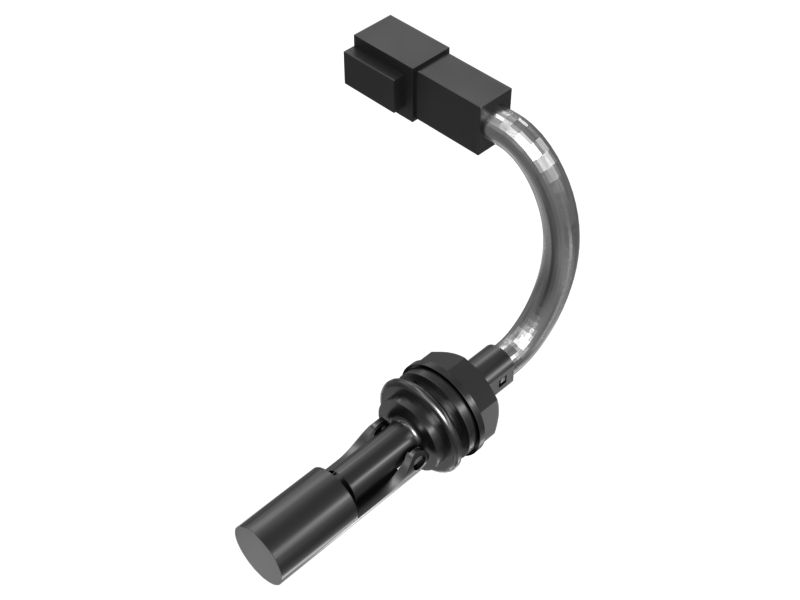

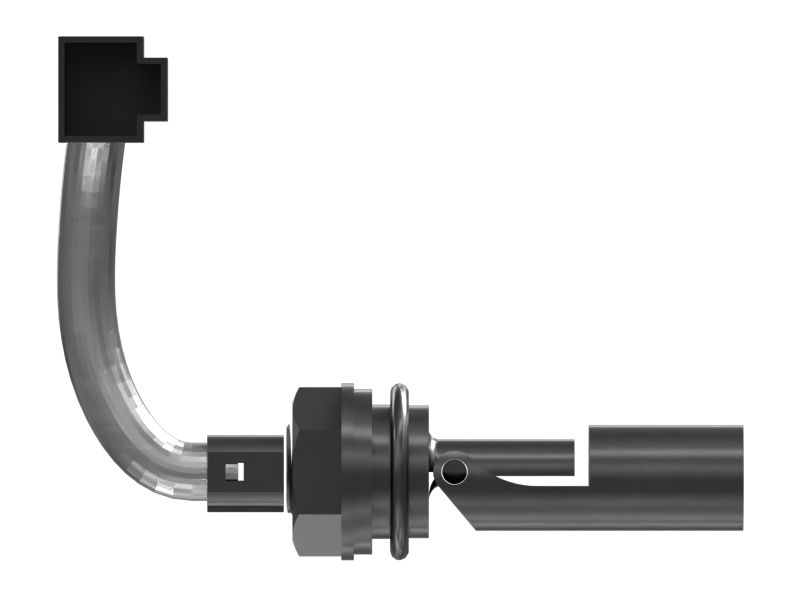

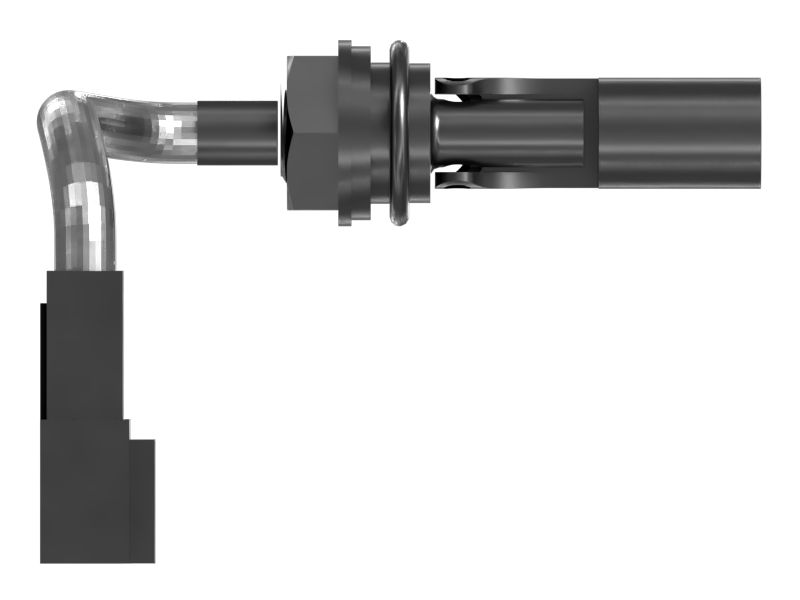

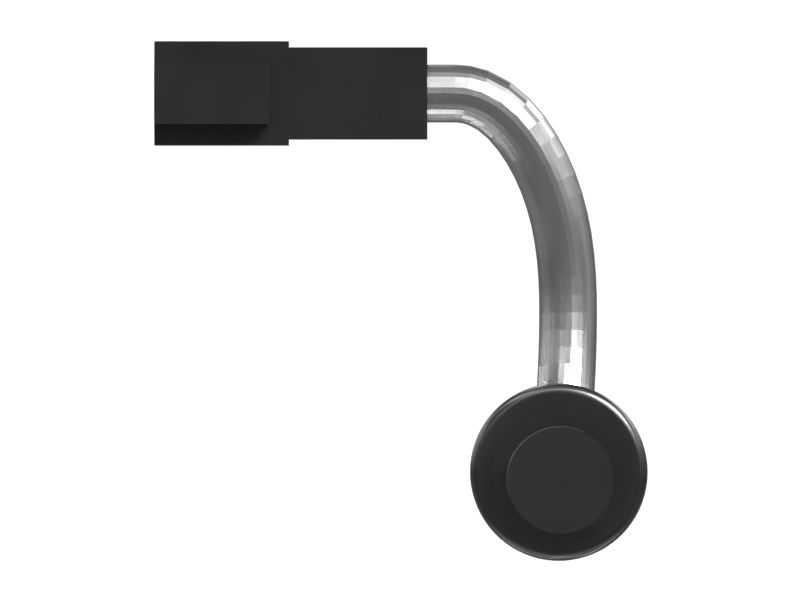

631-2845: Liquid Level Switch

The Liquid Level Switch is used in the window wiper washer system, responsible for maintaining the appropriate fluid level required for clear visibility during operation. It operates through a sensor mechanism that detects the fluid level within the reservoir and turns it on or off based on the user's command. When the level falls below a certain threshold, the switch triggers a signal, indicating the need for refilling or activating the wiper system. This ensures that the windshield remains free from debris and dirt, enhancing safety and visibility, particularly in adverse weather conditions.

Attributes:
• Glass-filled polyphenylene sulfide.
• Contact position is single pole single throw.
• Contact rating is 15 watts.
• Maximum current 1 ampere.
• Withstands sealing pressure of 400 kilopascal.
• Maximum switching voltage is 100 volts direct current.
• Initial contact resistance is 0.25 ohms.
• Operating temperature ranges from -30 degrees Celsius to 110 degrees Celsius.

Applications:
The Liquid Level Switch is used in the window wiper washer system to monitor and regulate fluid levels for clear visibility during operation.

• Material: Plastic Plastic
