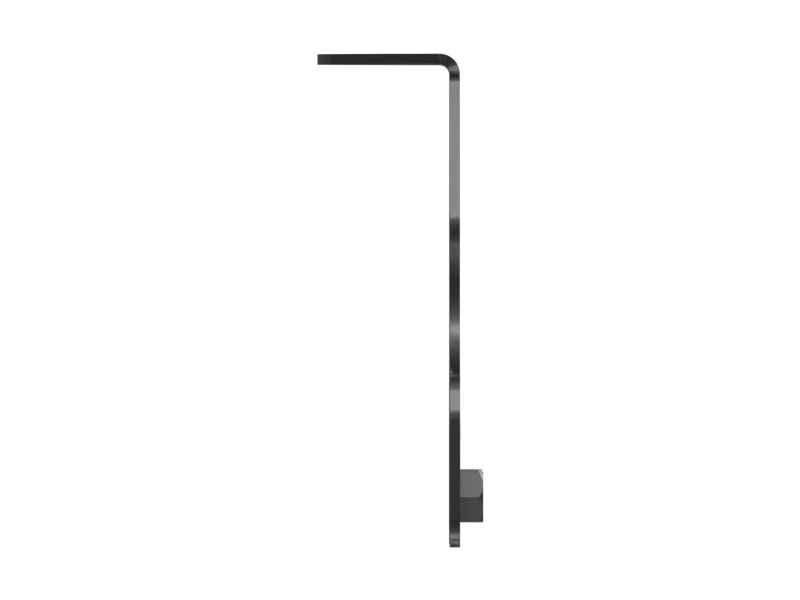

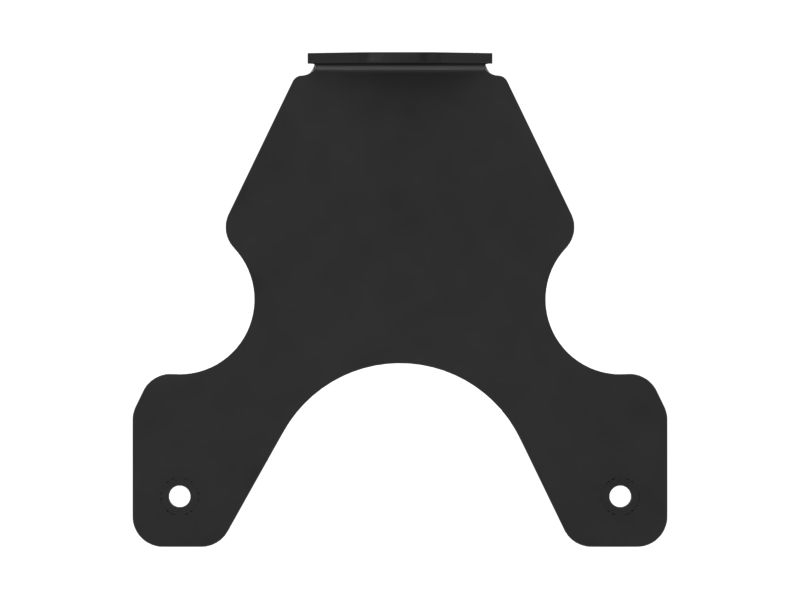

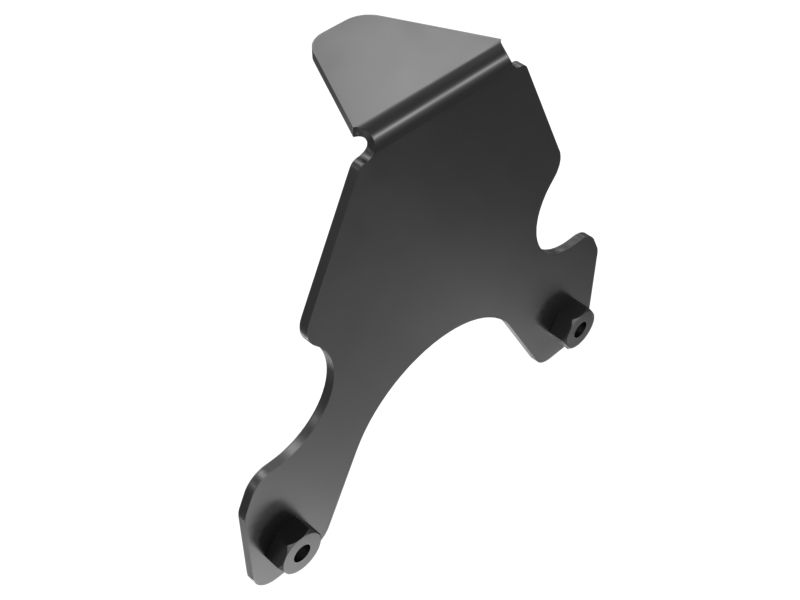

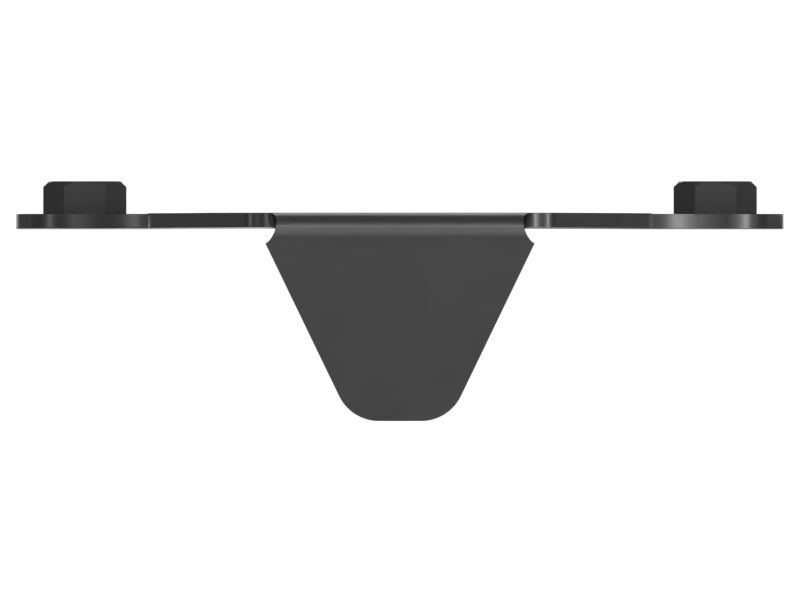

630-9604: Cab Front Grill Mounting Plate

A Guard Support Plate is used to be attached to the lamp assembly, covering the wiring harness and other components of the lamp. It is made to fit with the mounting plate in the frame, providing additional support and stability to the structure. The plate acts as a shield, protecting the lamp from debris, rocks, curbs, or other objects that could potentially damage the lighting components during operation.

Attributes:
• Provided with high strength, wear resistance, and impact resistance
• Provided with weld nuts to fit the fastener of size M8

Applications:
A Guard Support Plate is used to provide additional support to the front lighting guard that protects the lamp from potential damage.

• Overall Length (mm): 160

• Overall Length (in): 6.3

• Overall Height (mm): 147.7

• Overall Height (in): 5.81

• Overall Width (mm): 49.6

• Overall Width (in): 1.95

• Material Thickness (mm): 3

• Material Thickness (in): 0.12

• Material: Carbon Steel,Alloy Mixed

• Color: Medium Gloss Black

• Weight (kg): 0.3

• Weight (lb): 0.67
