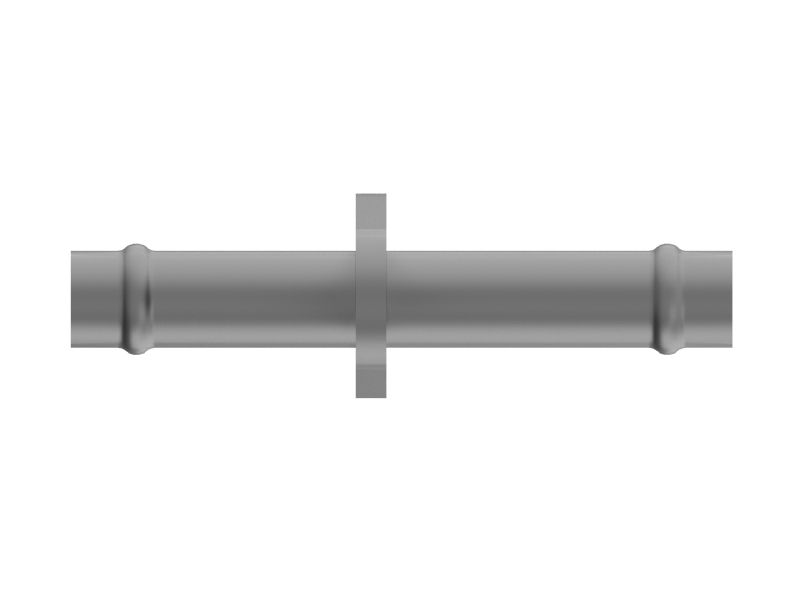

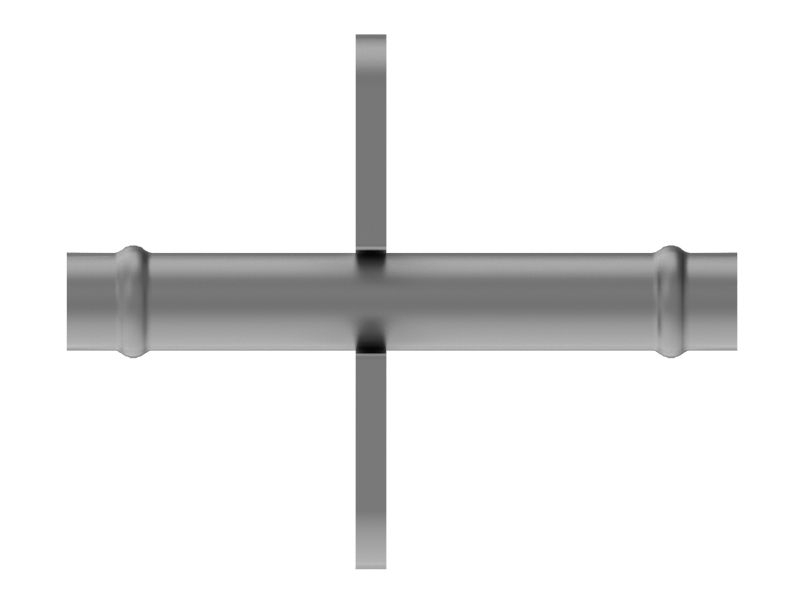

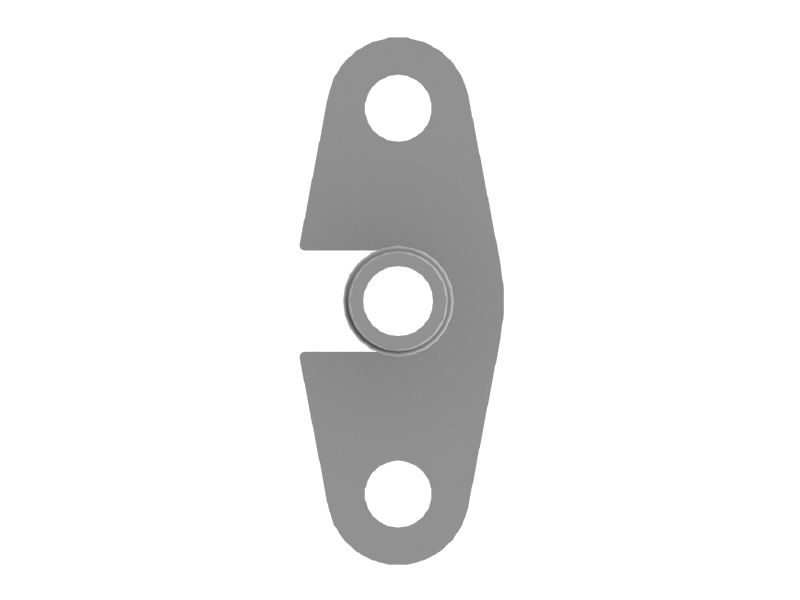

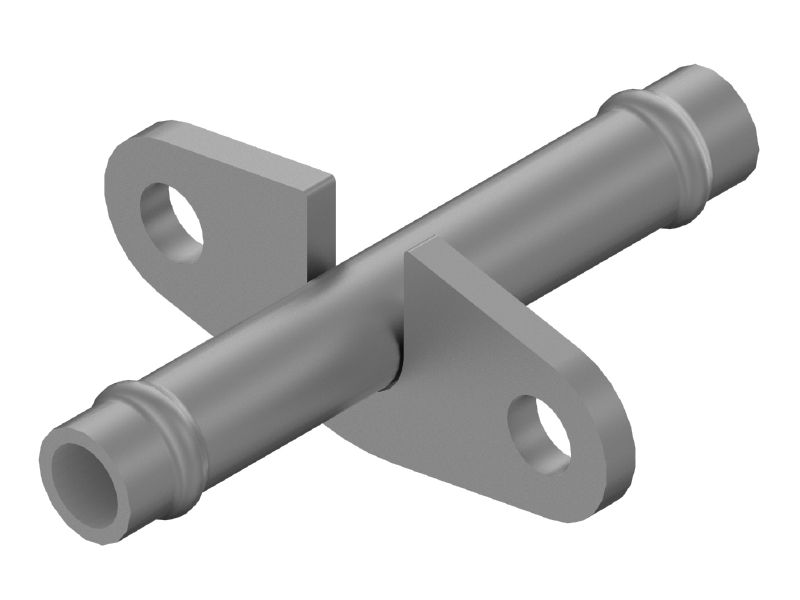

630-0580: Engine Coolant Lines Bulkhead

An Engine Coolant Lines Bulkhead is designed to provide a sealed passage for coolant lines passing through a barrier. By creating a sealed connection between the engine compartment and the interior of the equipment, the bulkhead allows coolant lines to pass through without compromising the integrity of the barrier. This helps maintain the separation of compartments and prevents coolant leaks, and contamination from entering the interior.

Attributes:
• Capable to withstand exposure to engine heat, coolant pressure, and environmental elements.
• Provides a secure seal to prevent coolant leakage.
• Resistant to vibration and mechanical stress to maintain integrity.

Applications:
An Engine Coolant Lines Bulkhead is used to provide a secure passage for coolant lines through the bulkhead, ensuring efficient heat transfer between the engine and the cabin heating system.

• Overall Length (mm): 65

• Overall Length (in): 2.56

• Overall Height (mm): 52

• Overall Height (in): 2.05

• Overall Width (mm): 20.1

• Overall Width (in): 0.79

• Approx. Weight (kg): 0.03

• Approx. Weight (lb): 0.07

• Material: Alloy Steel,Stainless Steel
