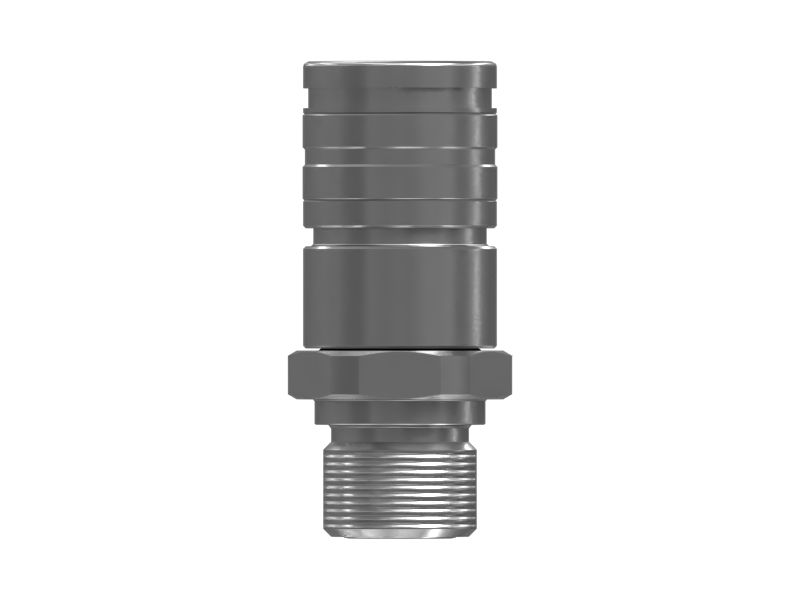

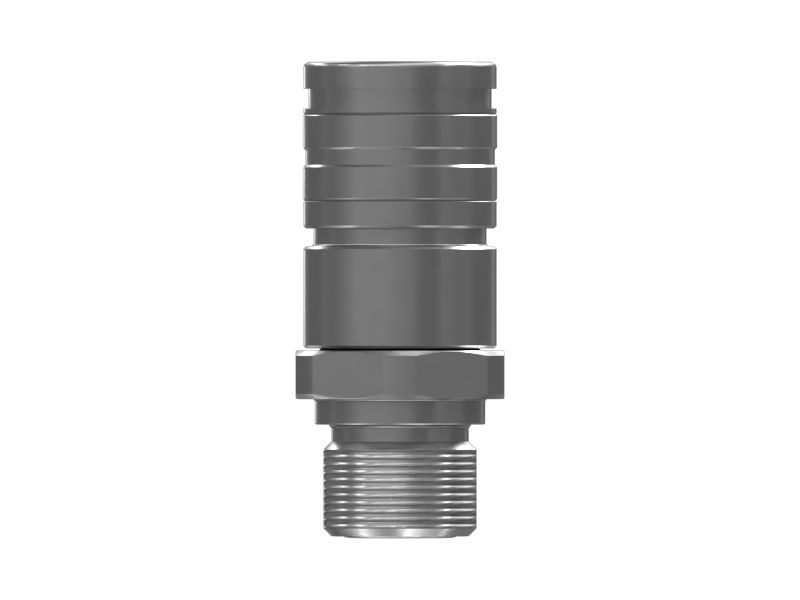

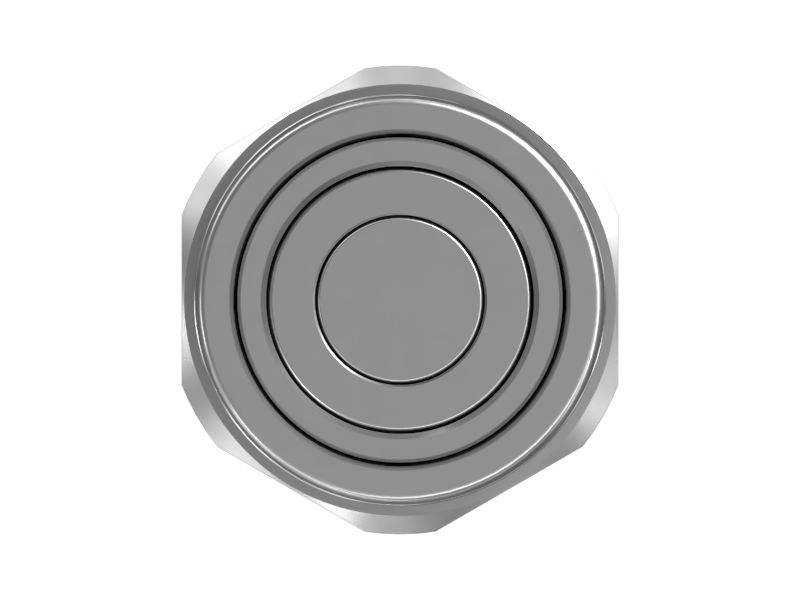

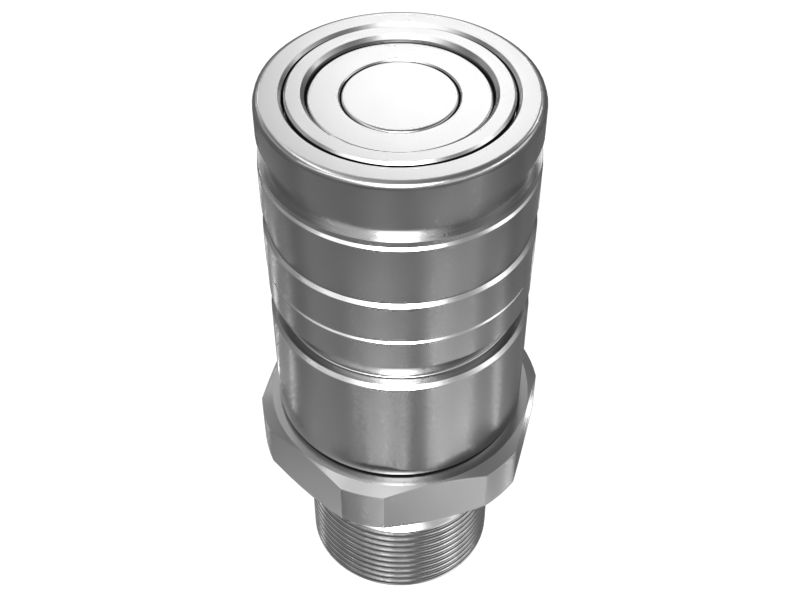

629-9028: Auxiliary Hydraulic Lines Quick Disconnect Coupler

An Auxiliary Hydraulic Lines Quick Disconnect Coupler incorporates sealing to ensure a tight and secure connection between hydraulic lines. It helps prevent hydraulic fluid leaks, maintaining the integrity of the hydraulic system and reducing the risk of contamination or fluid loss. It incorporates safety features to prevent accidental disconnection during operation, which could lead to hydraulic fluid spray or loss of system control.

Attributes:
• Withstand the pressures and flow rates encountered in hydraulic systems
• Withstand the harsh operating conditions and mechanical stresses encountered in hydraulic systems
• Provided with minimum burst pressure 140 MPa and rated pressure 35 MPa to handle high pressures and flow rate of 45 liters per minute

Applications:
An Auxiliary Hydraulic Lines Quick Disconnect Coupler allows for the rapid and convenient connection and disconnection of auxiliary hydraulic lines. It enables efficient assembly setup, maintenance, and troubleshooting by reducing the time and effort required for line attachment and removal.

• Thread: 1 - 3/16 - 12

• Hex Size (mm): 41

• Hex Size (in): 1.614

• Length (mm): 93.3

• Length (in): 3.673

• Weight (kg): 0.509

• Weight (lb): 1.122

• Material: Alloy Steel
