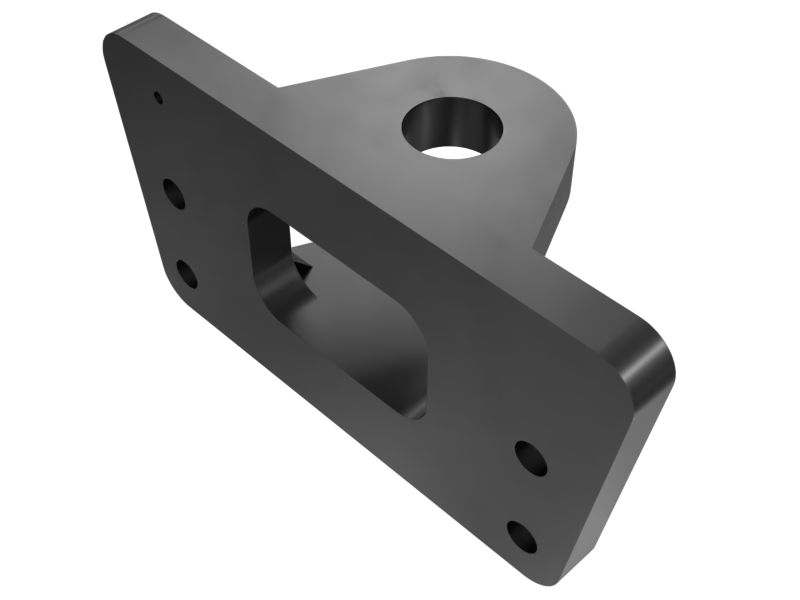

629-8319: Counterweight Drawbar Pin Support

Cat® Drawbar Support provides support to the drawbar pin in Cat® Machine. This is fixed to the rollover protective structure with the help of suitable fasteners. The Components surface finish is continuous, uniform, and free from any porosity or any other defects to enhance the performance of the part. Engineered with a specific application in mind, every Cat® component is designed and manufactured to exact tolerances to ensure proper alignment with existing systems on your Cat® Machine. Cat® Parts are manufactured to precise specifications and are built for durability, reliability, productivity, less environmental impact and reuse.

Application:
Cat® Drawbar Support is used in counterweight balance drawbar pin of Cat® Machines. Consult your owner's manual or contact your local Cat® Dealer for more information.

• Overall Length (mm): 134.1

• Overall Length (in): 5.28

• Overall Width (mm): 125.1

• Overall Width (in): 4.93

• Overall Height (mm): 69.7

• Overall Height (in): 2.74

• Thread Size (dia x pitch) (mm): M6 x 1

• Color: Cat Yellow

• Material: Steel,Alloy Steel

• Weight (kg): 5.58

• Weight (lb): 12.3
