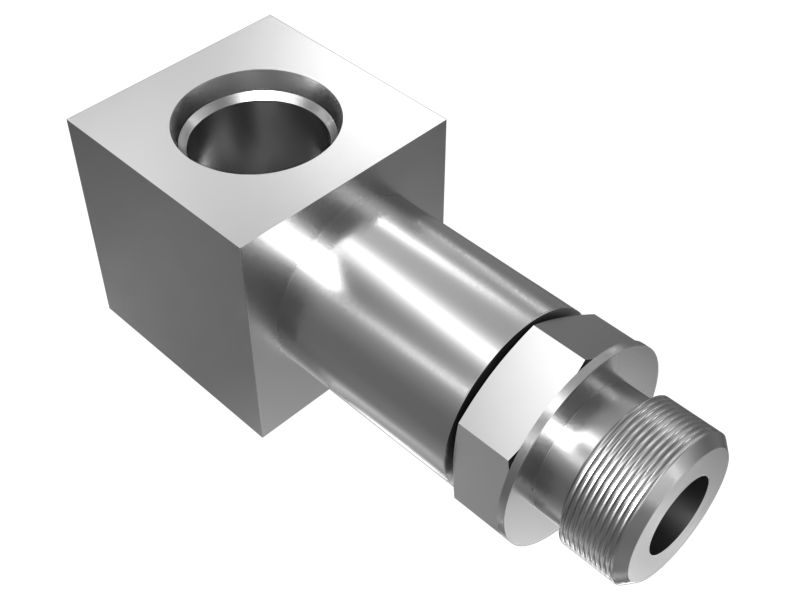

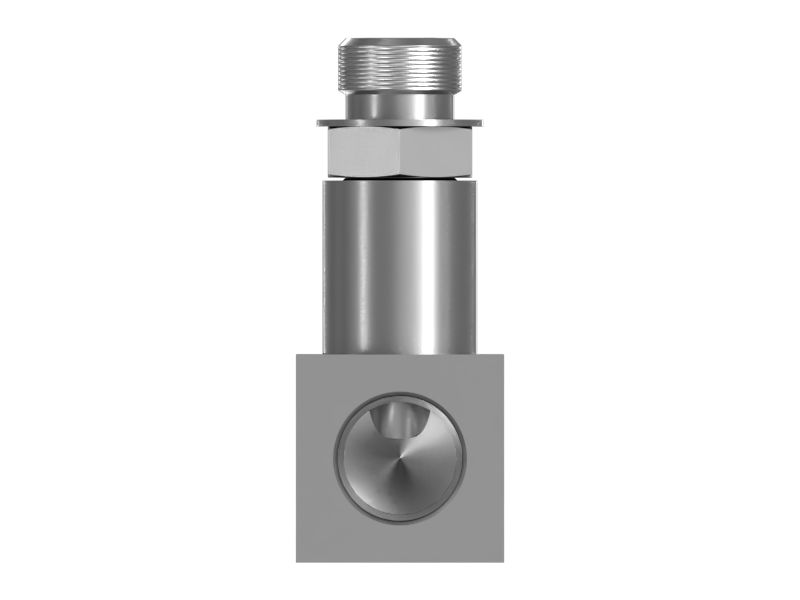

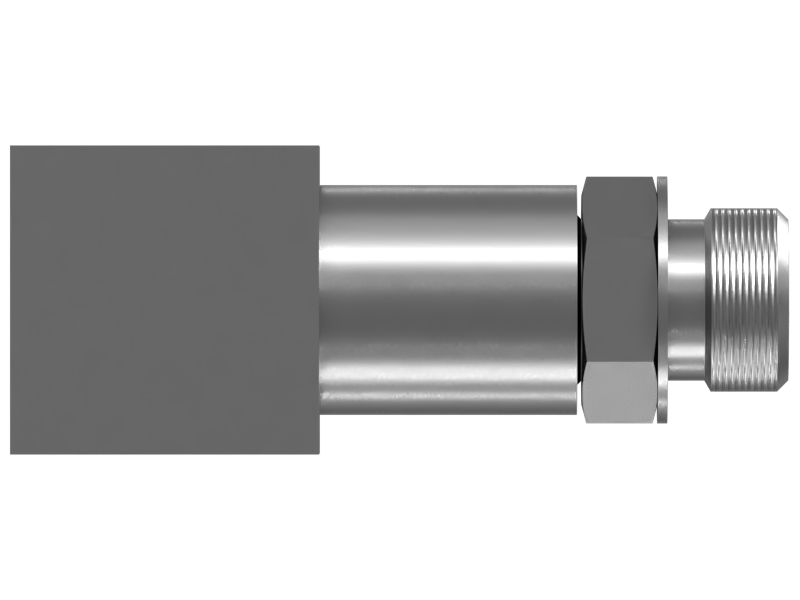

629-5584: 90° Elbow Adapter

Cat® Elbow Adapters are designed to connect fluid carrying hoses and valves to other system components. Cat® Elbow Adapters are held to the highest standards of quality and reliability. This elbow adapter is manufactured with high grade steel to exact tolerances to ensure leak free connections. The adapter is mounted with the help of suitable fasteners. Each Cat® Fluid Carrying Adapter is designed to meet or exceed industry standards for operating pressure, torque capability and wear protection to ensure a long life and proper machine functionality. They are designed to meet or exceed the performance of industry standard parts and provide leak free connections.

Application:
Cat® Elbow Adapters are used in the hydraulic systems of Cat® Machines. Consult your owner’s manual or contact your local Cat® Dealer for more information.

• Length (mm): 80.8

• Length (in): 3.18

• Height (mm): 32

• Height (in): 1.26

• Width (mm): 32

• Width (in): 1.26

• Hex Size (mm): 22.22

• Hex Size (in): 0.87

• Thread Size (in - TPI) (in): 3/4 - 16 (2x)

• Material: Carbon Steel,Alloy Steel

• Weight (kg): 0.34

• Weight (lb): 0.74
