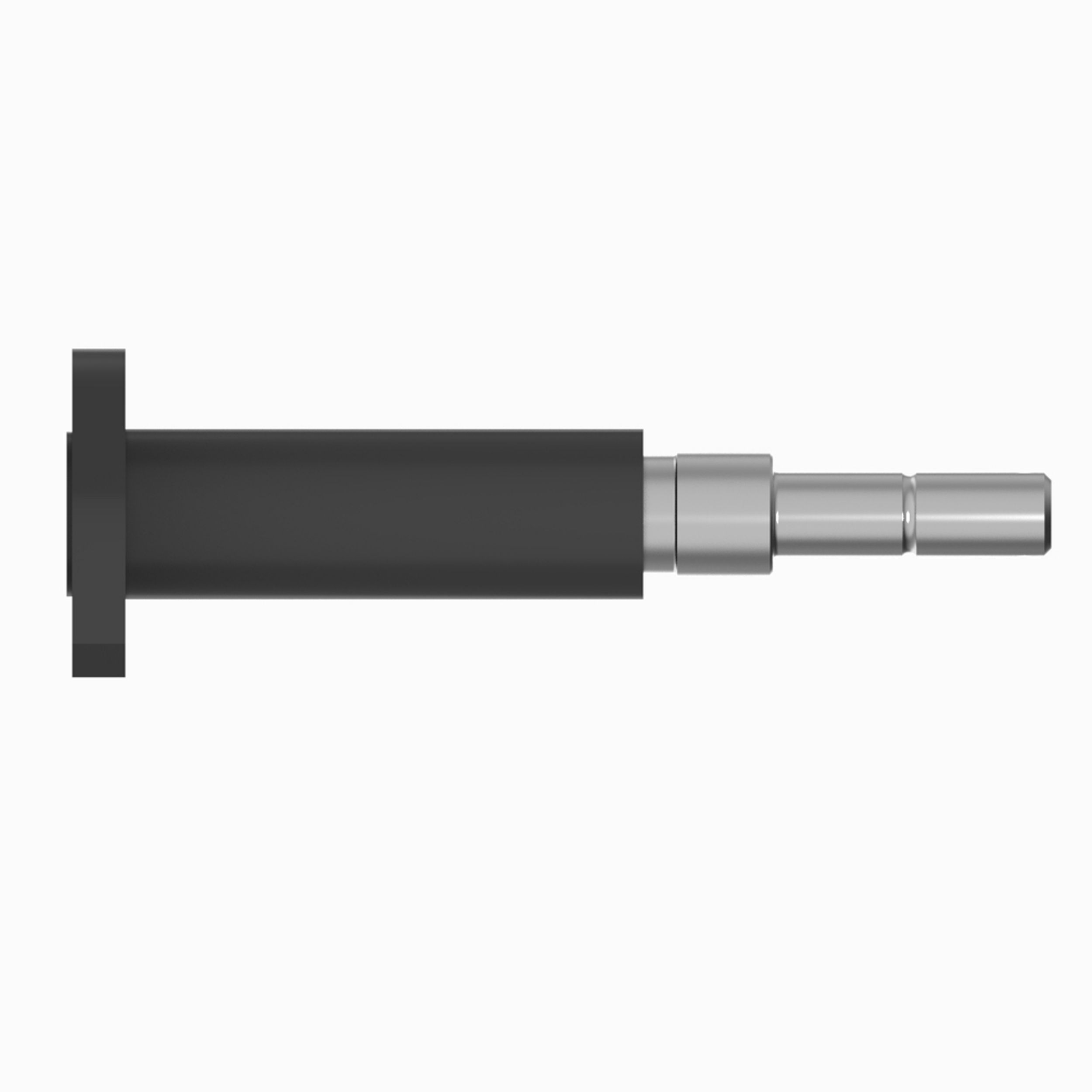

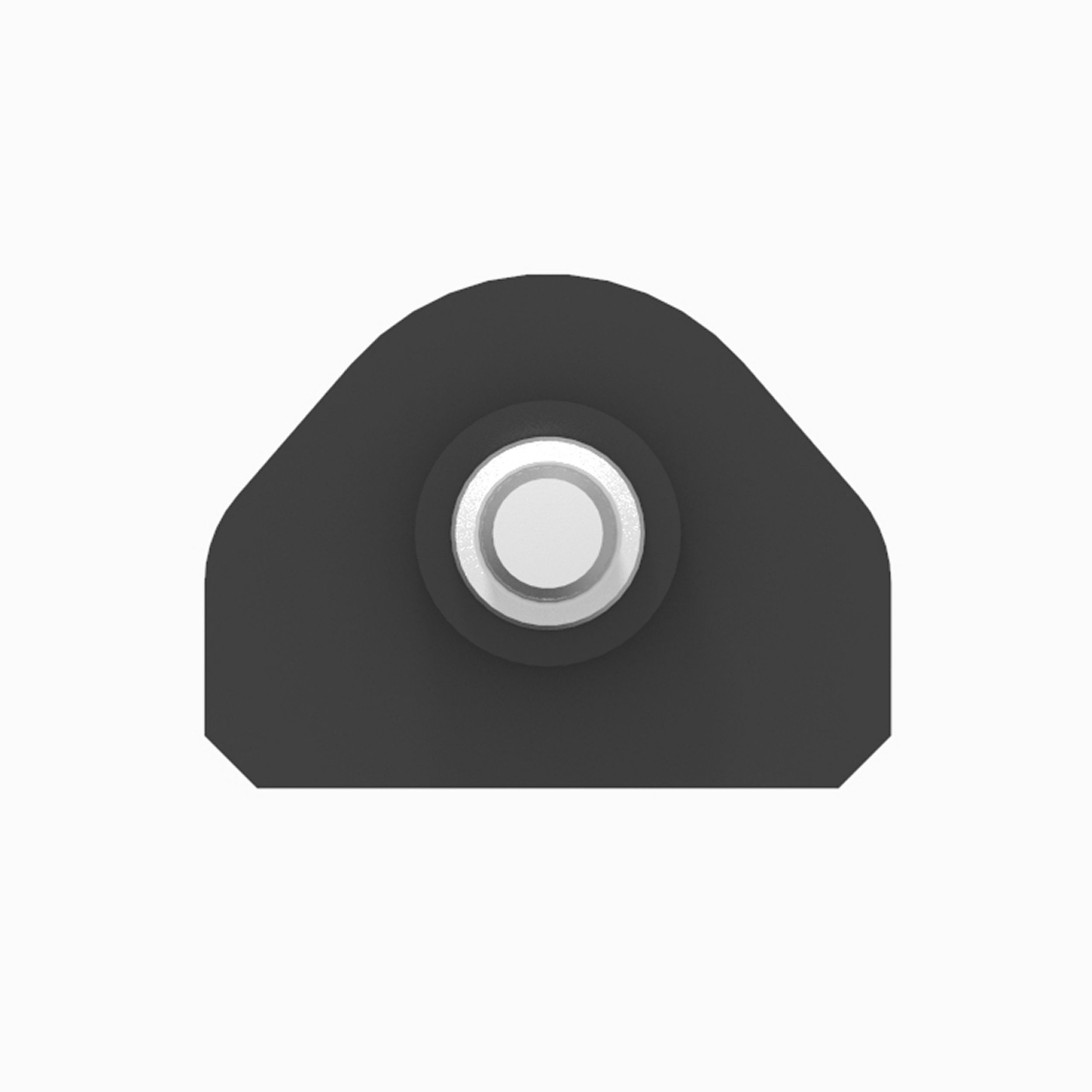

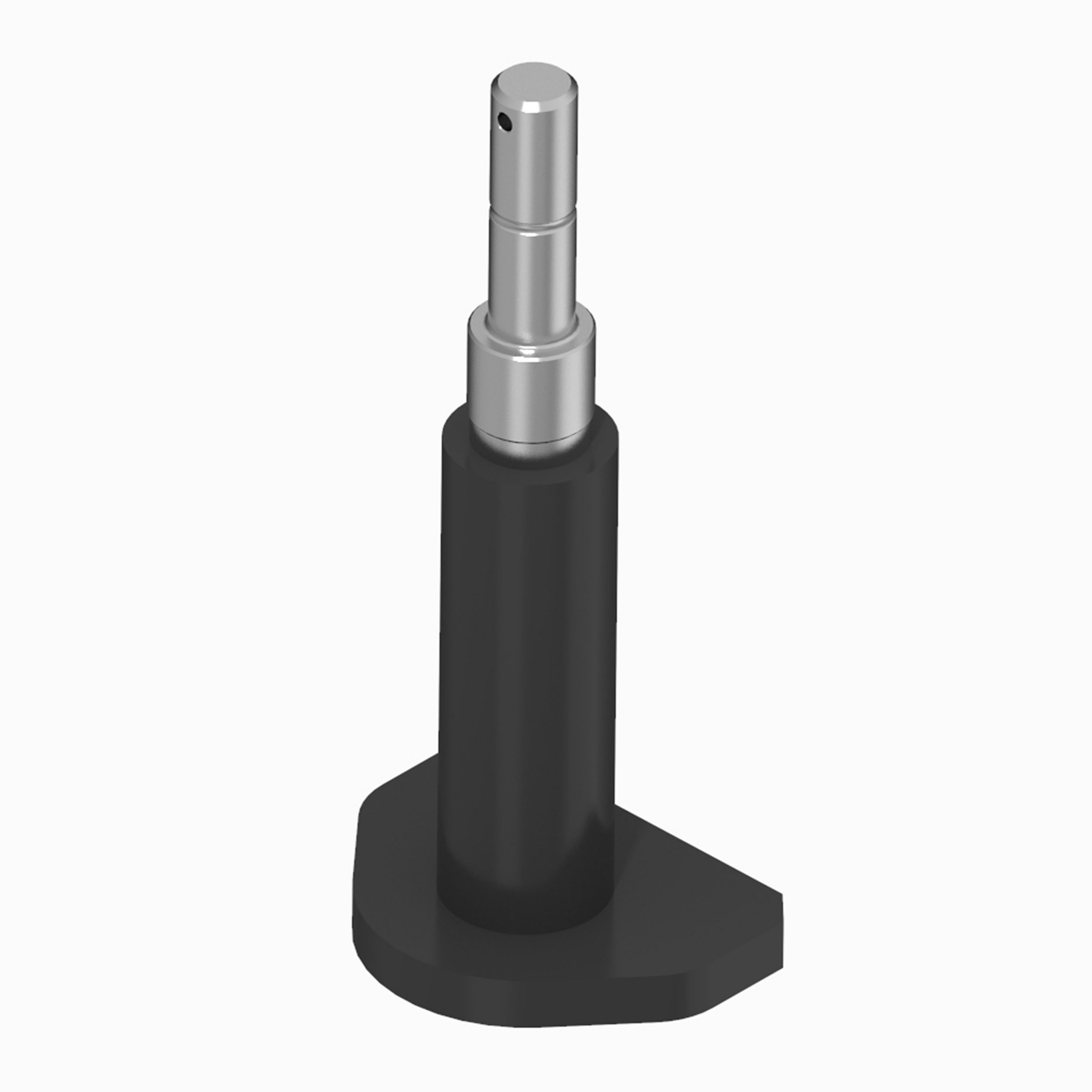

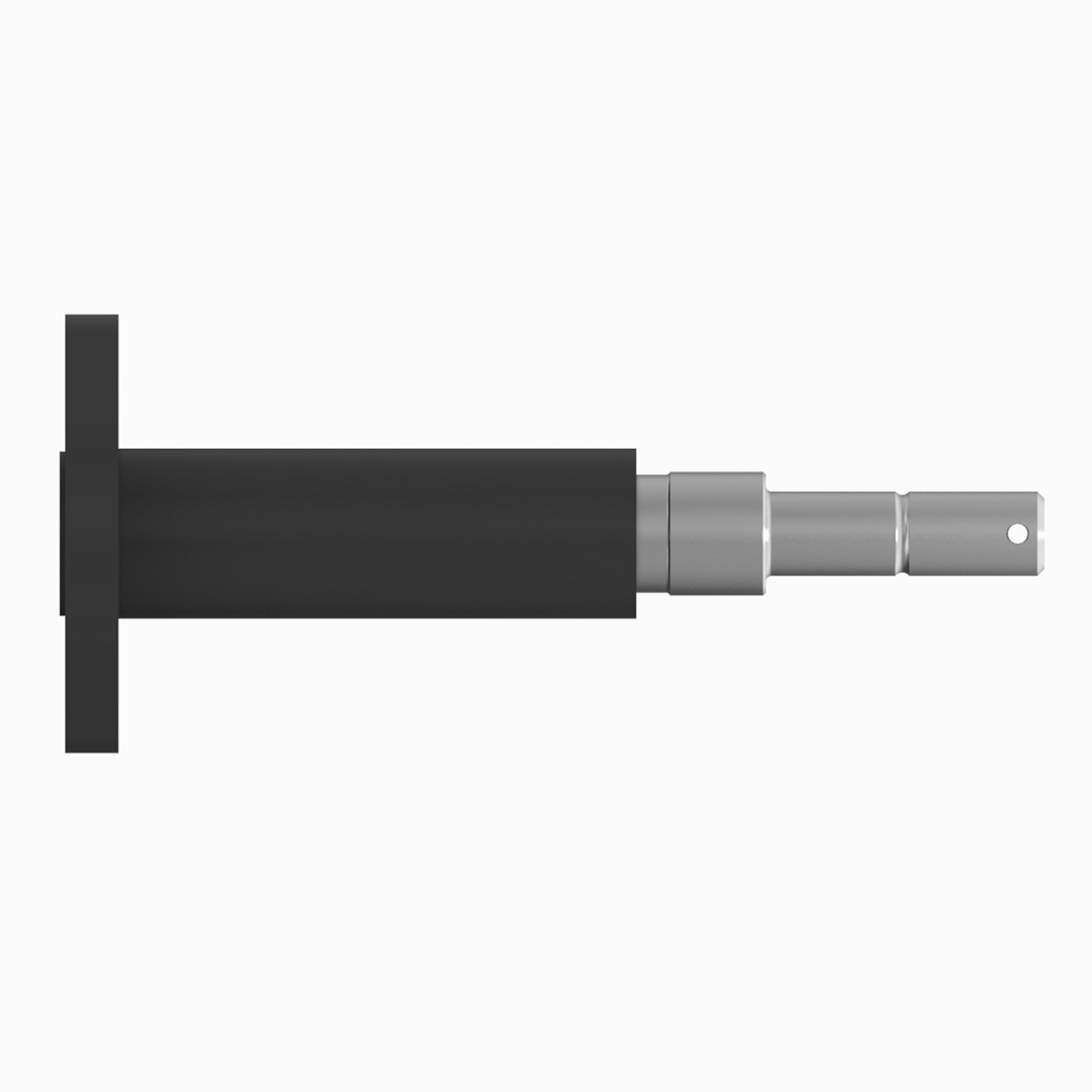

629-4976: Cylinder Assembly

Description:
Cat® Cylinder Assemblies, designed for your rugged work environment, are double acting cylinders in which the working fluid acts alternatively on both sides of the piston. Cat® Hydraulic cylinder arrangements actuate numerous machine components ranging from steering controls to refined movement of blades, buckets or other attachments. Cat® Hydraulic cylinder arrangements consist of tube and rod assemblies that are ready for installation on a machine. Cat® Cylinders are manufactured with thick tube walls that enable more service lives. This feature, when combined with exclusive Cat® Oversize Seals, can extend cylinder life in many applications.

Application:
Cat® Cylinder Assemblies are designed for specific machine applications. Used to actuate heavy-duty implements in hydraulic systems. Consult your owner's manual or contact your local Cat Dealer for more information.

• Overall Length (mm): 350

• Overall Length (in): 13.78

• Overall Height (mm): 117

• Overall Height (in): 4.61

• Overall Width (mm): 156

• Overall Width (in): 6.15

• Weight (kg): 5.51

• Weight (lb): 12.14

• Material: Alloy Steel
