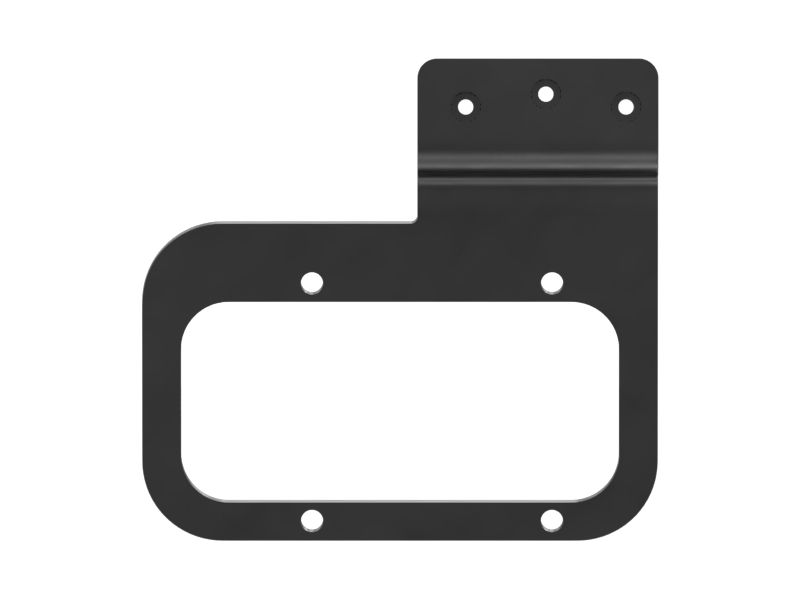

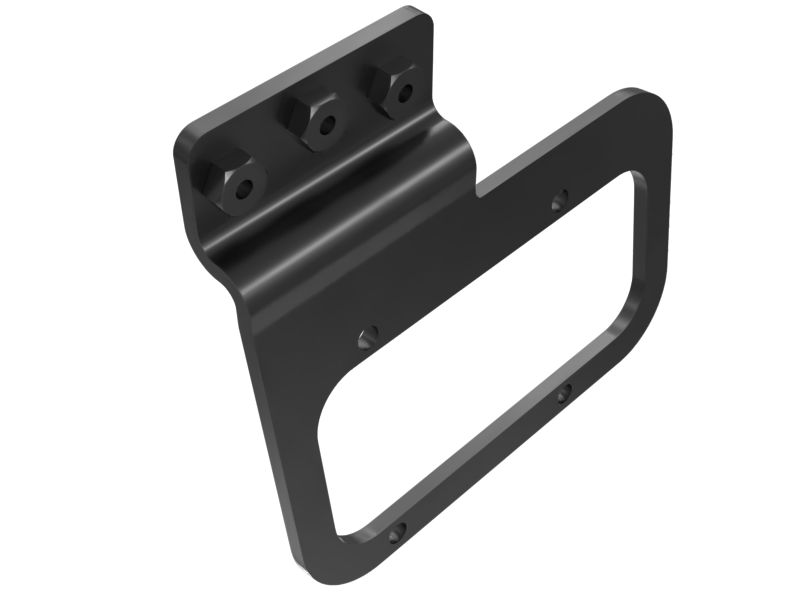

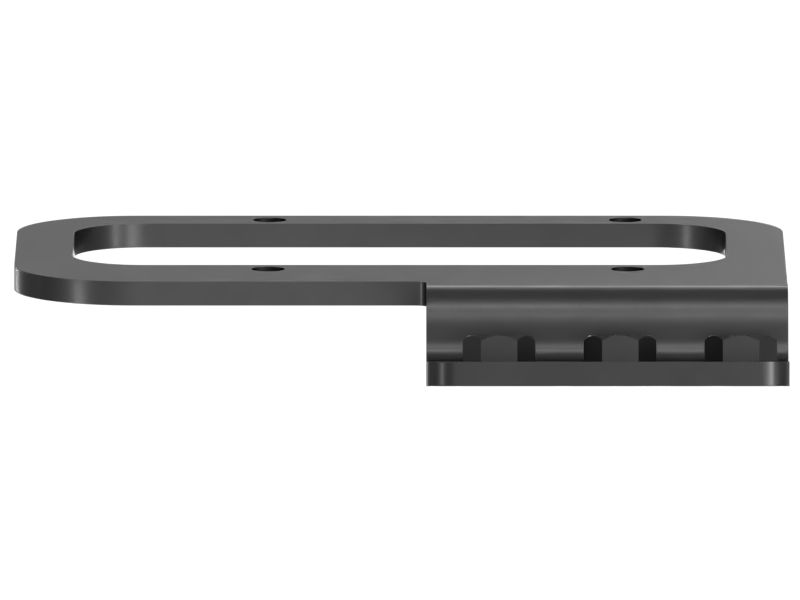

629-1226: Display Mounting Bracket

A Camera Mount Bracket helps to mount the Camera assembly onto the Roll Over Protective Structure (ROPS) along with the help of fasteners. The Bracket is made of durable material, such as steel, and includes a bracket and weld nuts that are welded together and used with holes to attach the camera. The Mounting Bracket provides a secure base for the camera and helps to ensure that it stays in place over time, even in harsh weather conditions.

Attributes:
• Manufactured to precise specifications and are built for durability and reliability
• Withstands high vibrations and forces in the ROPS

Applications:
A Camera Mount Bracket is used to hold and secure the camera of the work area visual unit onto the ROPS and provides support for the cables and wiring harnesses that are connected to the camera.

• Overall Length (mm): 161

• Overall Length (in): 6.34

• Overall Height (mm): 152.5

• Overall Height (in): 6

• Overall Width (mm): 18.1

• Overall Width (in): 0.71

• Material Thickness (mm): 5

• Material Thickness (in): 0.2

• Material: Carbon Steel,Alloy Mixed

• Color: Medium Gloss Black

• Weight (kg): 0.46

• Weight (lb): 1.02
