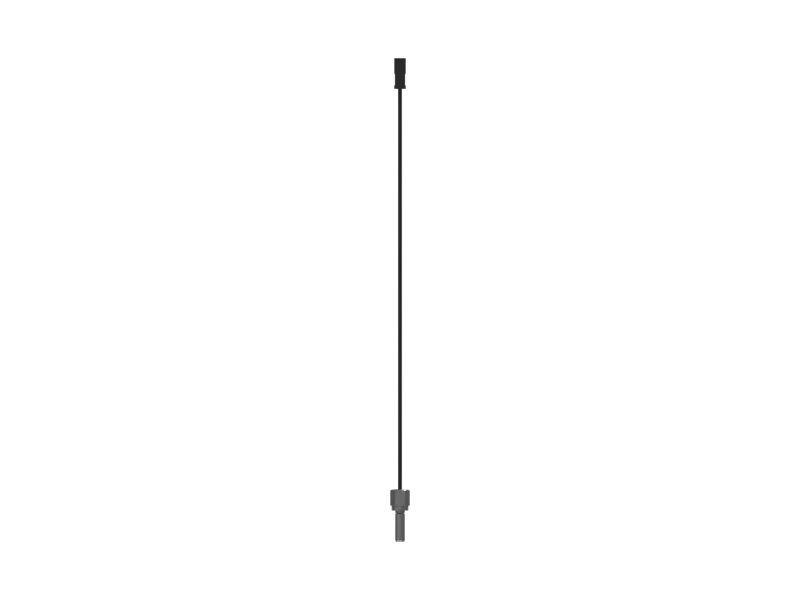

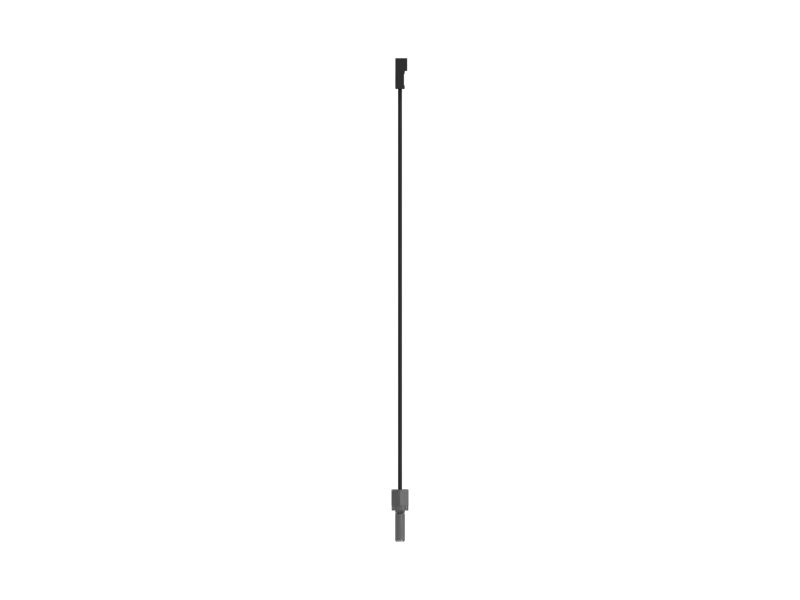

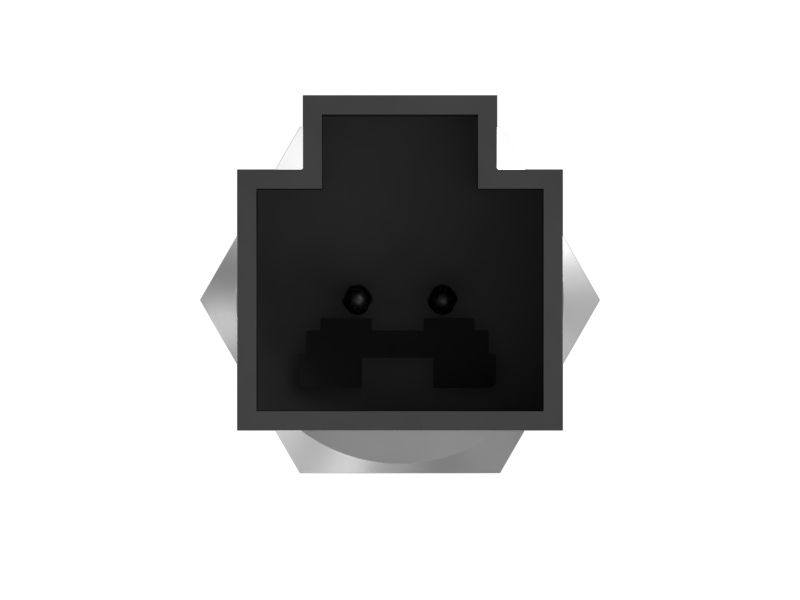

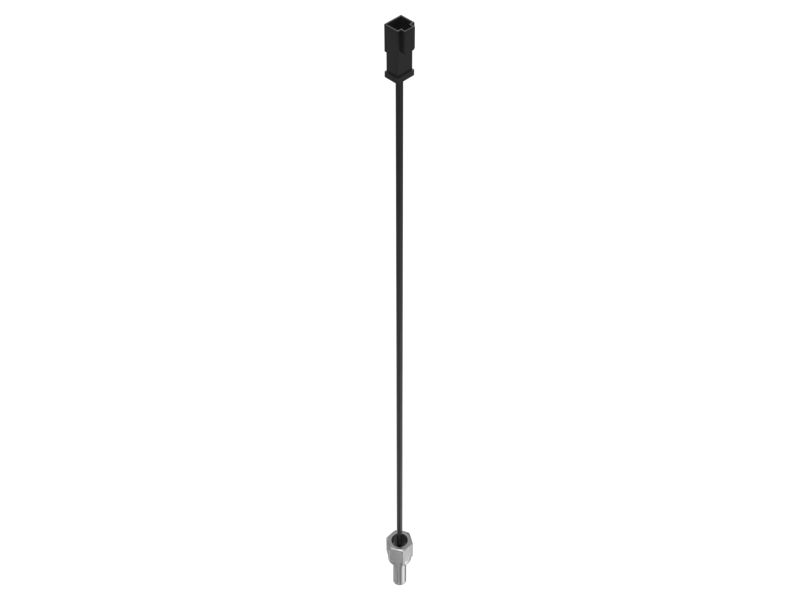

629-1113: High Output Magnetic Speed Sensor

The High Output Magnetic Speed Sensor is an advanced monitoring device for hydraulic systems, offering accurate measurement and feedback on hydraulic fluid flow within the hydraulic tank, this sensor utilizes magnetic technology to detect rotational movement with exceptional accuracy. It provides real-time data on hydraulic fluid flow rates, enabling operators to monitor hydraulic unit performance and identify potential issues promptly. Its seamless integration with the hydraulic unit enhances efficiency.

Attributes:
• Maximum operating frequency 15 kilohertz type.
• Electronic control module input impedance is 20kiloohms.
• Inductance 29 millihenry normal at 1-kilohertz series measured in free air conditions.
• Storage temperature is -40 degrees Celsius to 90 degrees Celsius.
• Tip Pressure blind shell greater than 34.5 kilopascals.
• Optimum operating air gap 0.127 millimeters to 0.635 millimeters.
• Resistant to temperature fluctuations and environmental factors.
• Resistant to vibration and mechanical stress.

Applications:
The High Output Magnetic Speed Sensor is installed within the hydraulic tank of equipment, positioned to accurately monitor the speed of hydraulic fluid circulation to provide real-time data on fluid movement, enabling operators to assess system performance.

• Material: Carbon Steel
