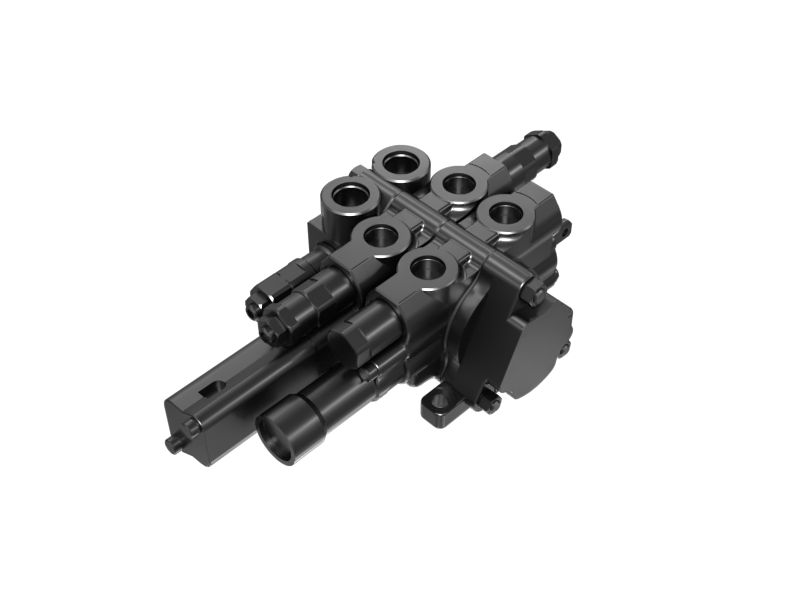

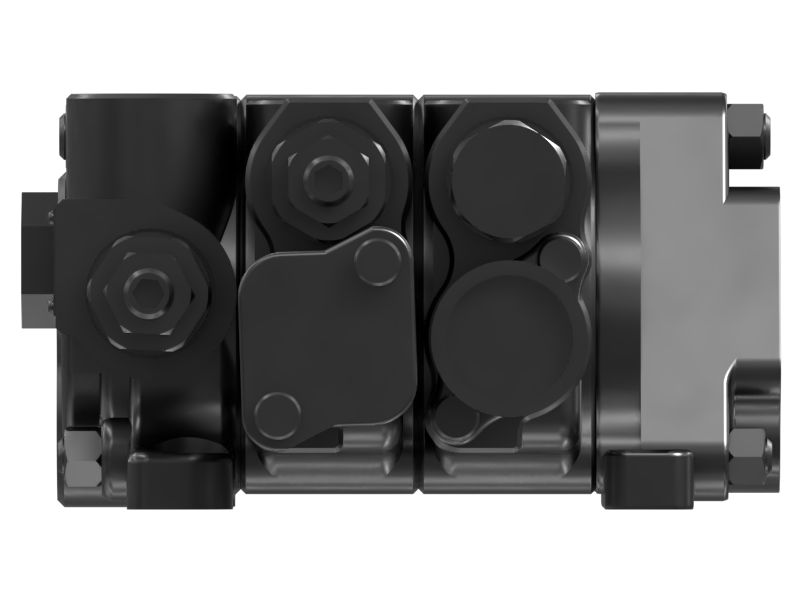

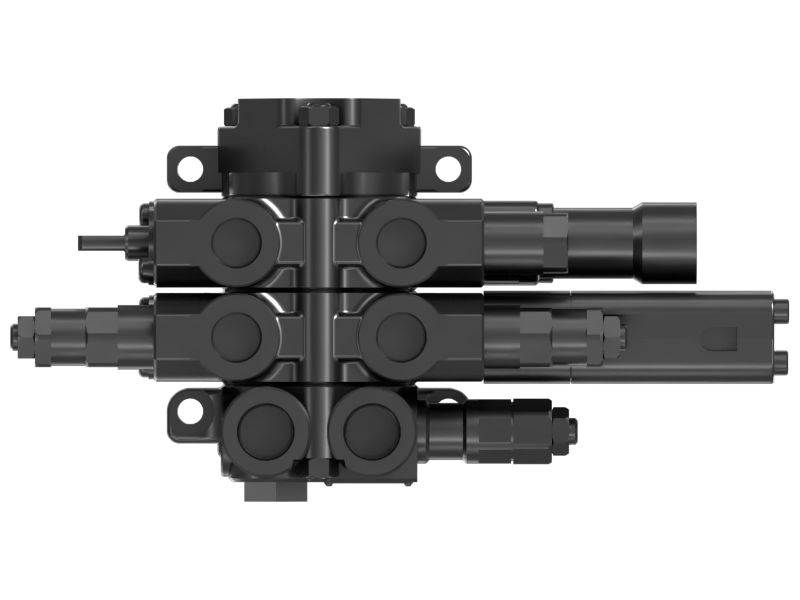

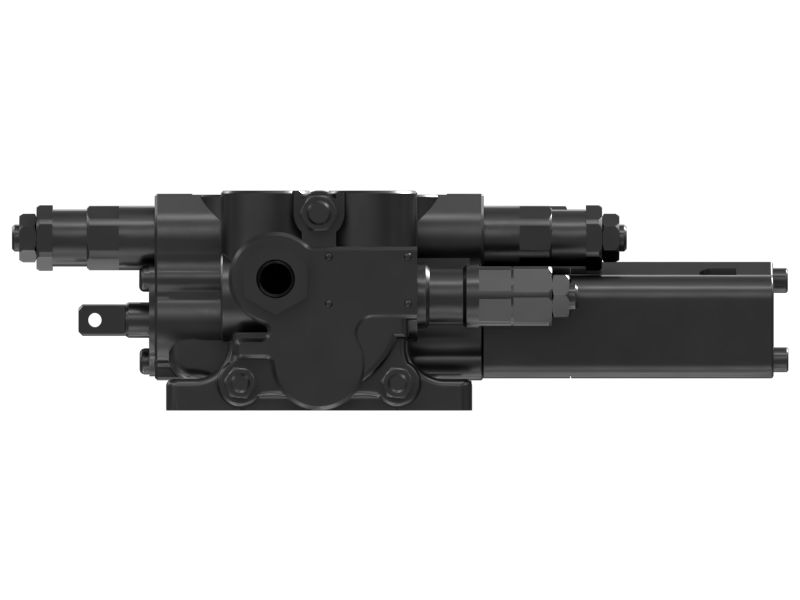

628-5237: 2 Bank Hydraulic Control Valve

The 2 Bank Hydraulic Control Valve regulates the flow and pressure of hydraulic fluid within the system. This accurate control ensures that the equipment operates smoothly, with optimal performance. Its durability and efficient design contribute to the overall reliability of hydraulic systems in required operating environments.

Attributes:
• Spool 1 electromagnetic detent force of 185 to 324 newton at 12 volt direct current.
• Spool 2 float detent force of 78 to 177 newton.
• Electromagnetic detent:12 volt direct current,
• Power consumption 4 watt maximum at 12 volt direct current.
• Spool one return spring force: neutral 80 newton, full stroke 110 newton.
• Spool two return spring force: neutral 100 newtons, full stroke 139 newtons.
• Maximum pressure of 18.5 megapascals.
• Maximum Flow of 15 liter per minute.
• Main relief valve setting pressure of 18.5 megapascals at 45 liters per minute.
• Overload relief valve setting pressure of 22.6 megapascals at 5 liters per minute.
• Oil temperature of -29 to 93 degree Celsius.

Applications:
The 2 Bank Hydraulic Control Valve serves as a regulator, managing hydraulic fluid flow and pressure to optimize performance in the hydraulic system, ensuring seamless operation and reliability.

• Overall Length (mm): 167.2

• Overall Length (in): 6.58

• Overall Height (mm): 314.9

• Overall Height (in): 12.4

• Overall Width (mm): 88.8

• Overall Width (in): 3.5

• Pressure Capacity (kPa): 18500

• Pressure Capacity (psi): 2683.2

• Flow Range (LPM): 60

• Flow Range (GPM): 13.2

• Material: Carbon Steel Casting,Carbon Steel

• Color: Cat Yellow

• Weight (kg): 8.1

• Weight (lb): 17.86
