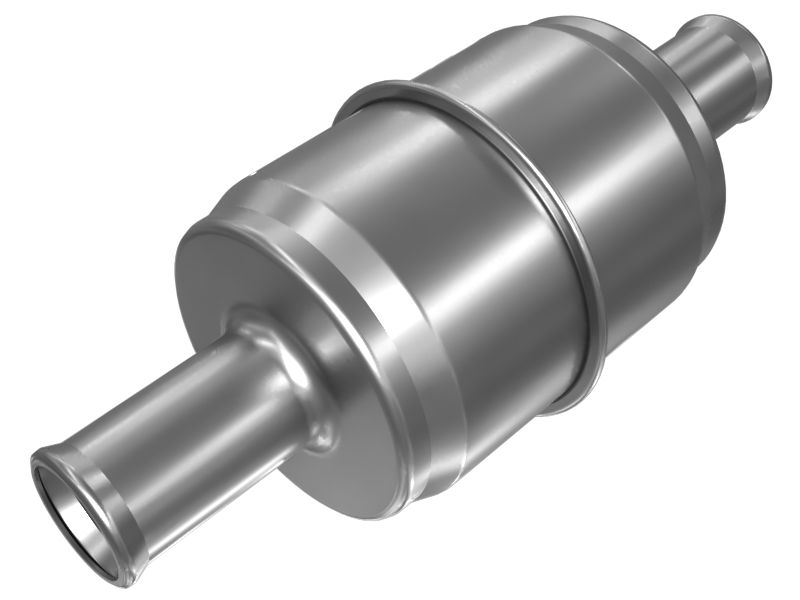

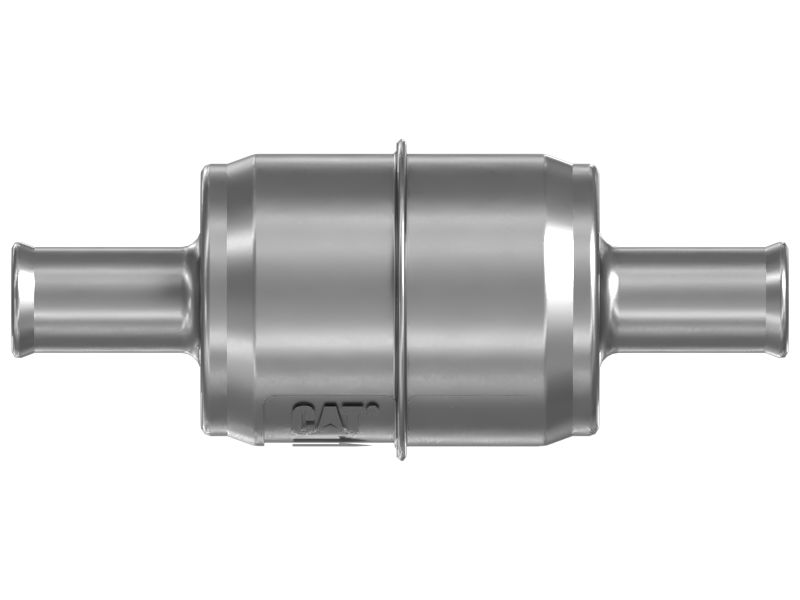

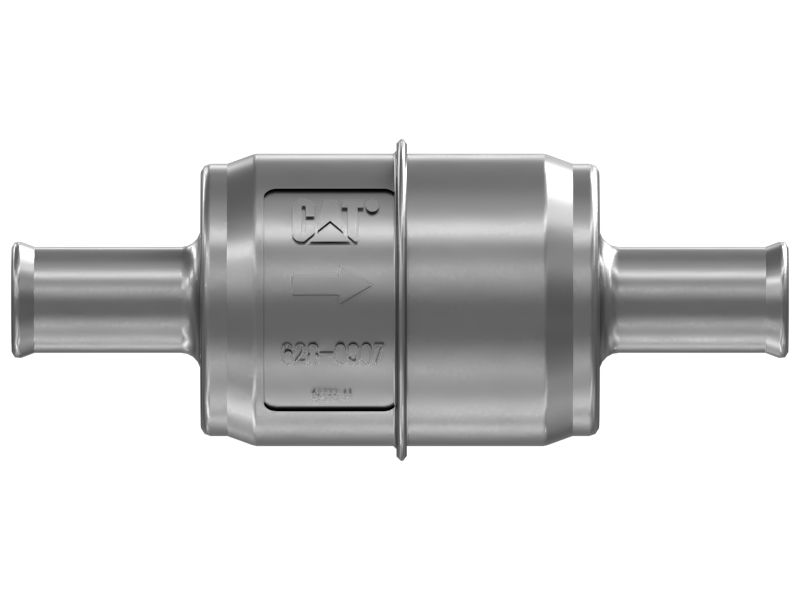

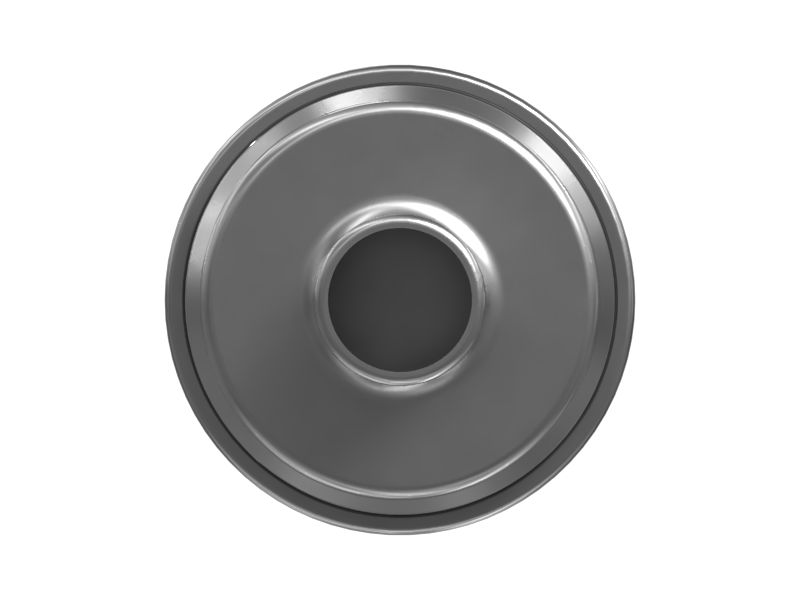

628-0907: Coolant Screen

The Coolant Screen filters coolant fluid to remove debris and contaminants. It ensures that the coolant circulating through the engine remains clean, which is necessary for preventing clogging and potential damage to the engine components. It features a fine mesh and perforated surface that effectively traps particles while allowing coolant to flow freely.

Attributes:
• Features a mesh wire screen with an 80 mesh count for fine filtration.
• Filters coolant to remove debris and contaminants.
• Provided wire diameter of 0.12 millimeters for high-efficiency filtering.
• Effective at trapping particles and debris as small as 280 microns.

Applications:
The Coolant Screen is installed within the coolant system of equipment, often near the coolant reservoir, to filter coolant fluid before it enters the engine.

• Length (mm): 117

• Length (in): 4.606

• Outer Diameter (mm): 48.5

• Outer Diameter (in): 1.909

• Weight (kg): 0.13

• Weight (lb): 0.3

• Material: Carbon Steel,Alloy Zinc
