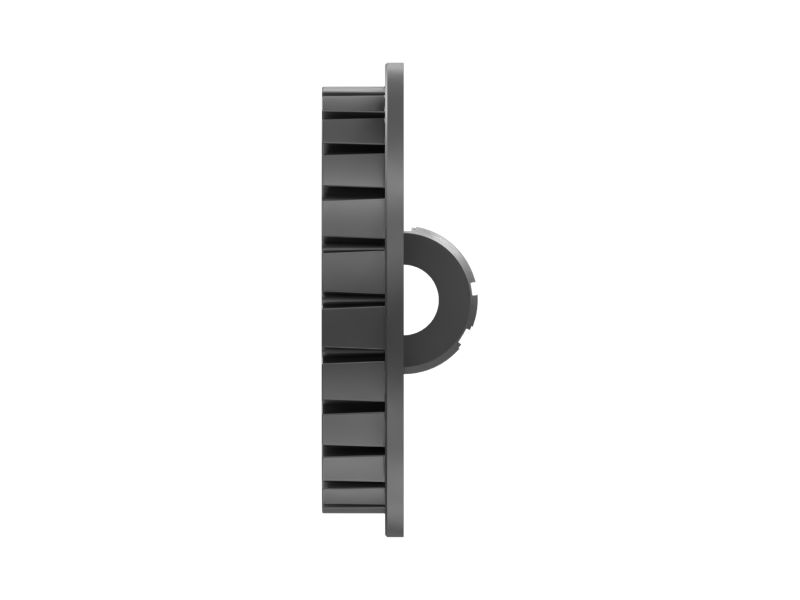

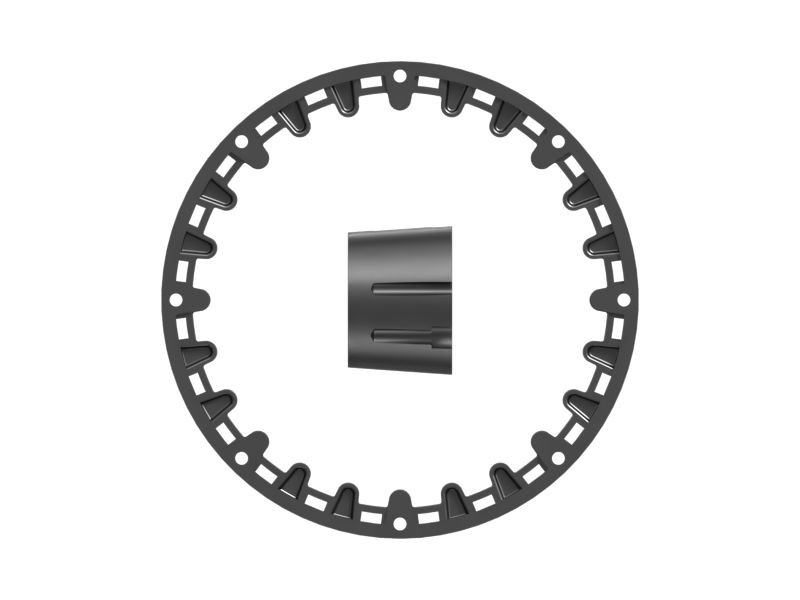

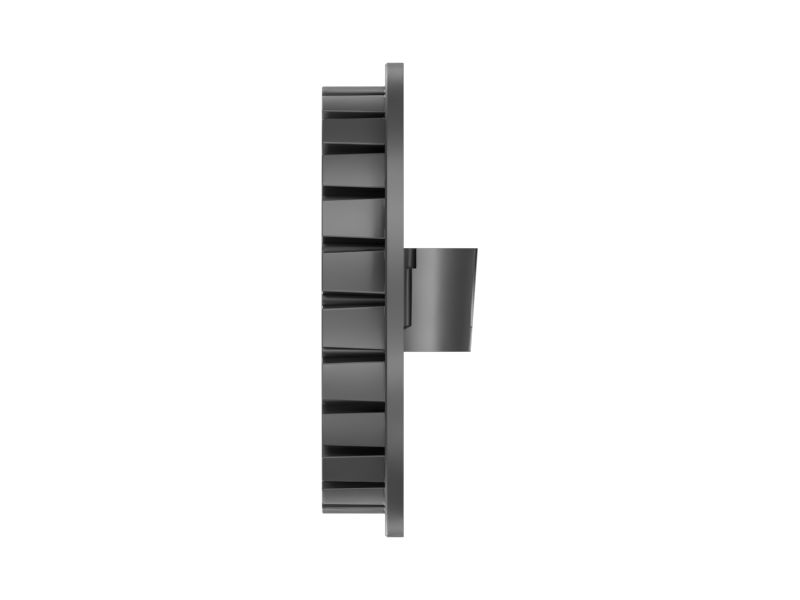

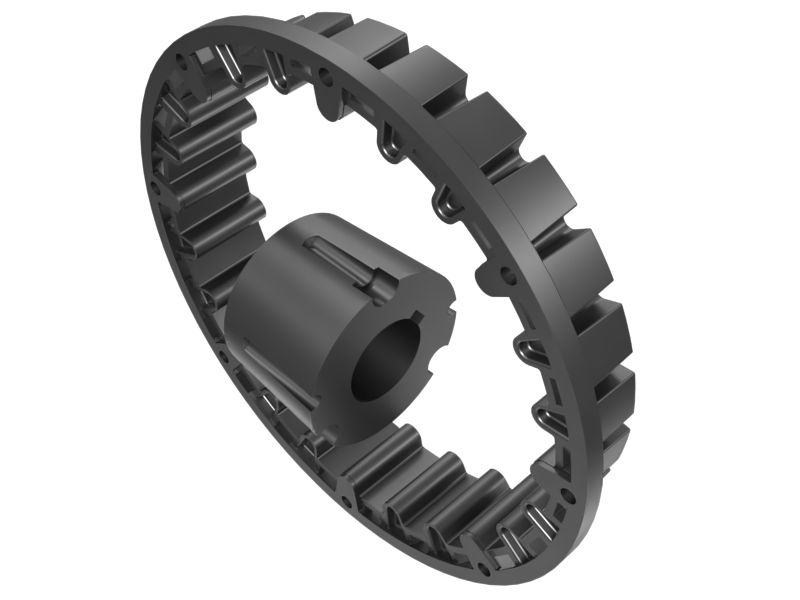

627-6999: 466.7mm Outer Diameter Torsional Coupling

The Torsional Coupling is used to transfer torque from one shaft to another within the equipment, its function is to accommodate the rotational movement of shafts while compensating for angular and parallel misalignments between them. This capability not only ensures efficient torque transmission but also helps in reducing vibration and shock loads that occur during equipment operation by absorbing these torsional forces, the coupling enhances the overall stability and performance of the equipment, minimizing wear and extending the lifespan of connected components.

Attributes:
• Absorbs and dampens torsional vibrations between connected shafts.
• Facilitates misalignment compensation between shafts.
• Allows axial, radial, and angular misalignment compensation.
• Provides torsional flexibility to accommodate varying loads.

Applications:
The Torsional Coupling is installed at the junction where two shafts meet, allowing for the transfer of torque between them to accommodate misalignments between the shafts while transmitting rotational force effectively.

• Speed (Rpm): 3000

• Inner Diameter (mm): 69.85

• Inner Diameter (in): 2.75

• Outer Diameter (mm): 466.7

• Outer Diameter (in): 18.374

• Overall Width (mm): 92

• Overall Width (in): 3.622

• Hole Size (mm): 13

• Hole Size (in): 0.512

• Weight (kg): 31.8

• Weight (lb): 70.107

• Material: Alloy Aluminum
