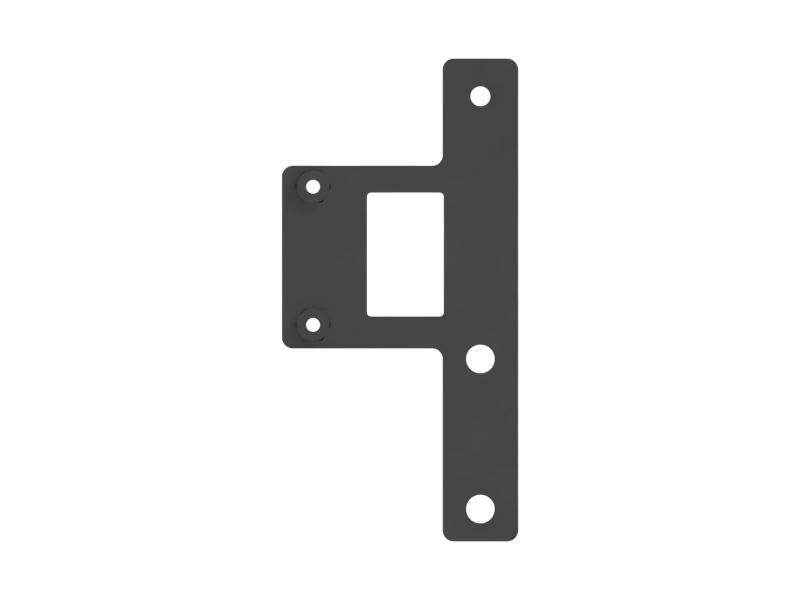

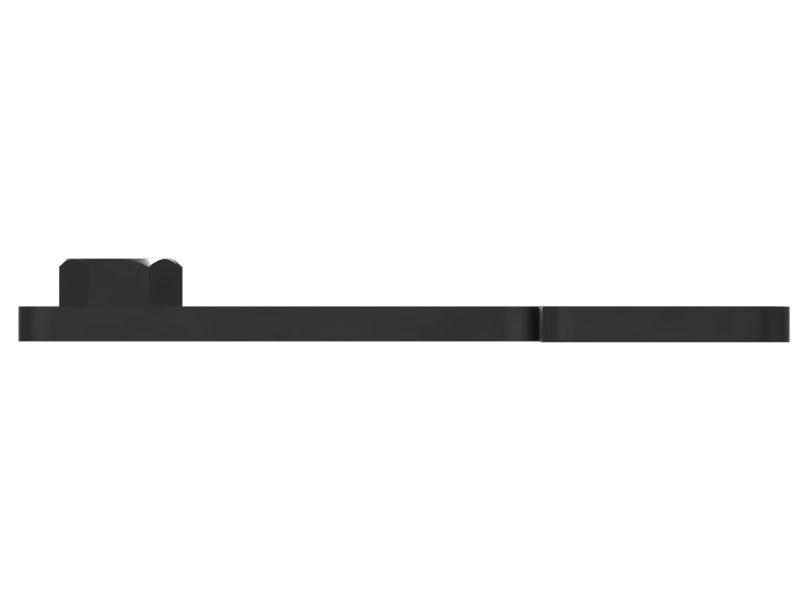

627-6156: Heater Valve Mounting Bracket

A Heater Lines Support Bracket is a sturdy bracket that supports the fluid-carrying hose or tube of the air conditioner and heater lines. It consists of a bracket and a weld nut that is welded together to be fitted with the frame or support assembly along with the help of fasteners, providing a mounting point for the clamp that secures the hose or tube to be fitted.

Attributes:
• Provided with a mounting weld nut to fit the fastener of size M10
• Provided with high strength and wear resistance

Applications:
A Heater Lines Support Bracket is used to provide additional support to hold and secure the clamp that supports the hose or tube in the air conditioner and heater lines, ensuring proper alignment.

• Overall Length (mm): 225

• Overall Length (in): 8.86

• Overall Width (mm): 11.9

• Overall Width (in): 0.47

• Overall Height (mm): 110

• Overall Height (in): 4.33

• Material Thickness (mm): 5

• Material Thickness (in): 0.2

• Nut Type: Weld Nut

• Thread Size (dia x pitch) (mm): M8 x 1.25

• Color: Cat Yellow

• Material: Carbon Steel,Alloy Mixed

• Approx. Weight (kg): 0.47

• Approx. Weight (lb): 1.04
