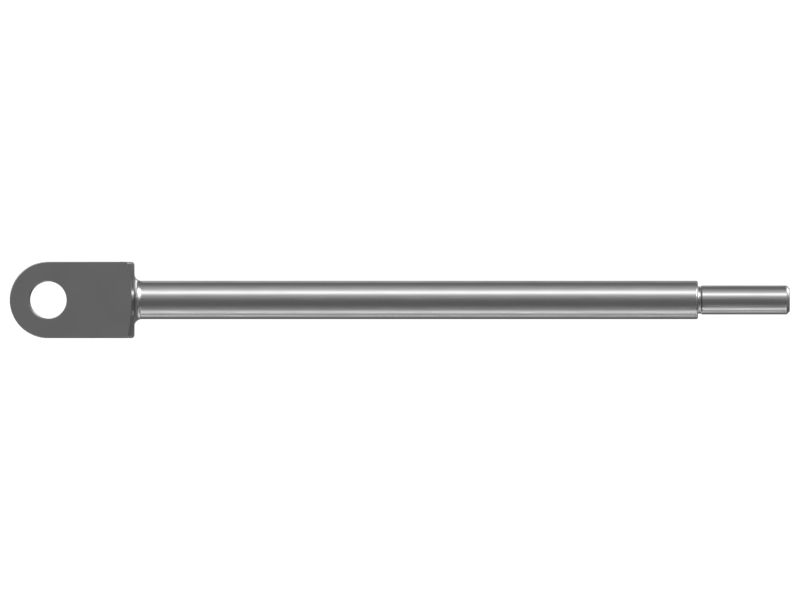

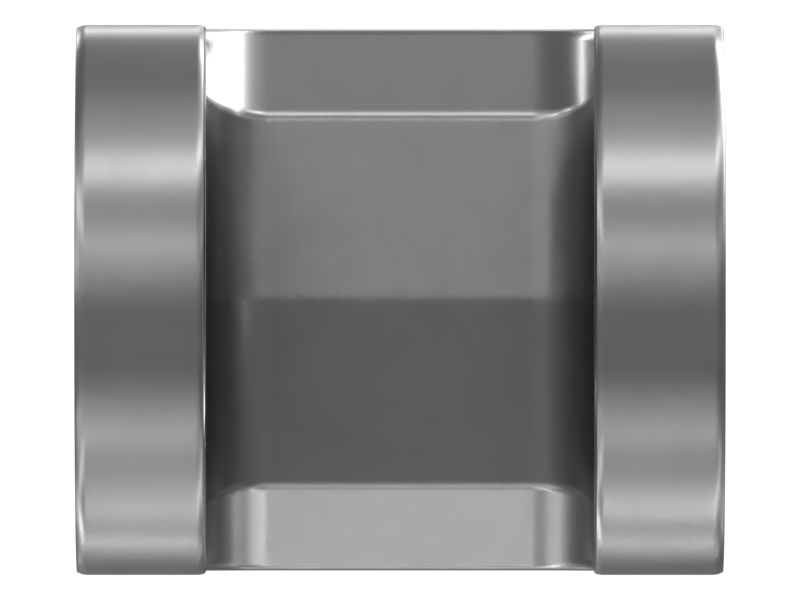

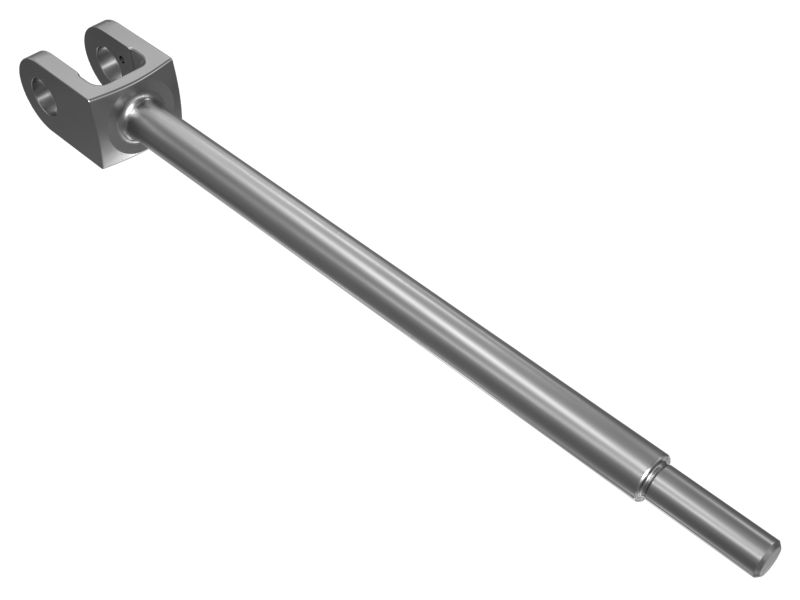

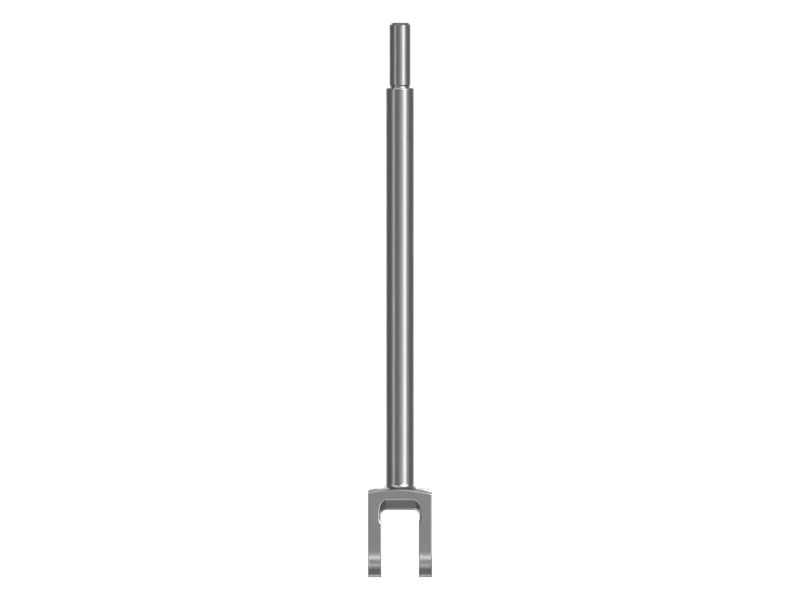

627-4701: Hydraulic Cylinder Rod

The Tilt Cylinder Rod facilitates the tilting movement of specific components and attachments of the equipment. Extending and retracting in response to hydraulic pressure, enables the controlled adjustment of the angle and orientation of these attachments, allowing for accurate positioning and operation of the equipment.

Attributes:
• Built with high-strength materials.
• Corrosion resistant for longevity.
• Has 495.5mm stroke length.
• Withstands extreme temperatures.
• Reduces vibration and noise.
• Suitable for 70mm bore diameter hydraulic cylinder.

Applications:
The Tilt Cylinder Rod is placed in the hydraulic system of equipment, adjacent to the attachment and component requiring tilting to prevent excessive movement of attachments and components during operation.

• Overall Length (mm): 822.5

• Overall Length (in): 32.38

• Overall Height (mm): 94

• Overall Height (in): 3.7

• Overall Width (mm): 80

• Overall Width (in): 3.15

• Rod Diameter (mm): 40

• Rod Diameter (in): 1.57

• Thread Size (dia x pitch) (mm): M33 x 3

• Material: Steel,Carbon Steel

• Weight (kg): 9.09

• Weight (lb): 20.04
