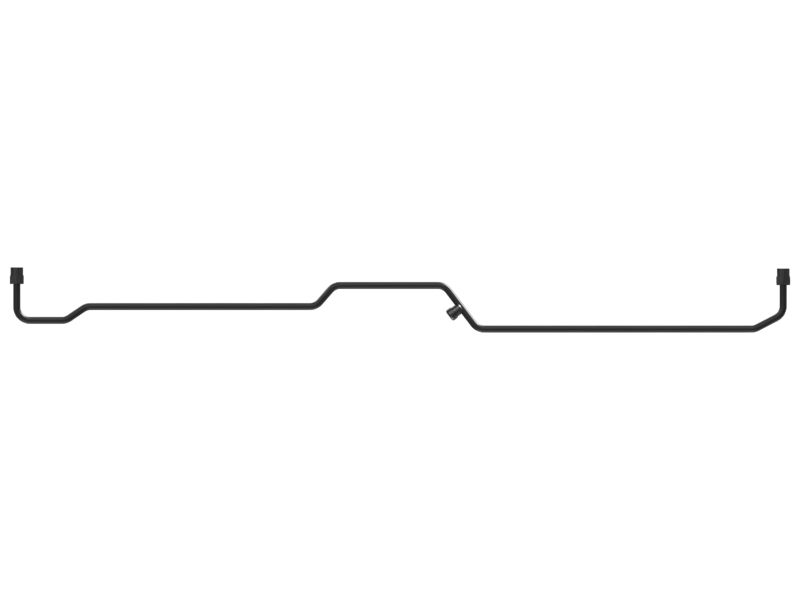

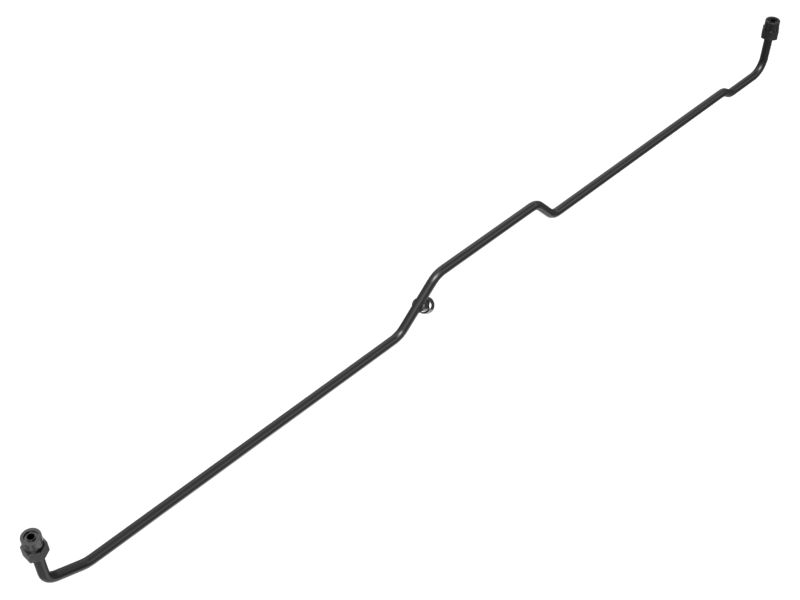

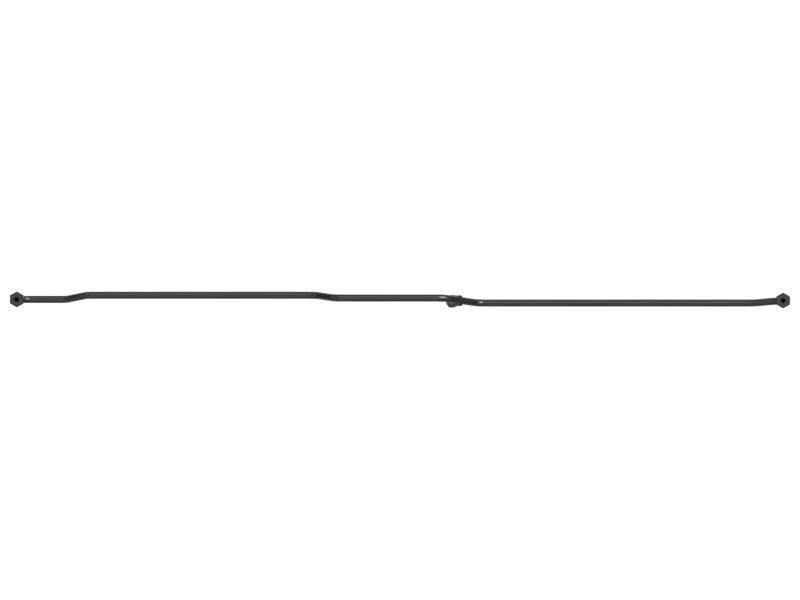

627-4513: 7.04mm Inner Diameter Grapple Bucket Lines Tube

The Base Frame Mounting Angle facilitates the secure attachment of the base frame to the primary structure of the equipment. It plays a necessary role in maintaining the alignment and stability of the equipment during operation. By providing a robust connection point, this part helps to distribute the weight and forces exerted on the base frame, ensuring smooth and efficient performance. The mounting angle is engineered to endure the stresses and vibrations that occur during operations, preventing any misalignment or loosening that compromises the equipment's overall function.

Attributes:
• Features a robust design that ensures durability under high loads.
• Provides a strong connection point between the base frame and structure.
• Supports the weight and forces exerted on the base frame.

Applications:
The Base Frame Mounting Angle is situated at the junction between the base frame and the main structure, facilitating a secure and stable connection within the equipment.

• Inner Diameter (in): 0.28

• Inner Diameter (mm): 7.04

• Outer Diameter (in): 0.38

• Outer Diameter (mm): 9.52

• Radial Thickness (mm): 1.24

• Weight (kg): 0.42

• Weight (lb): 0.92

• Working Pressure (kPa): 7000

• Working Pressure (psi): 1015.27

• Material: Alloy Mixed
