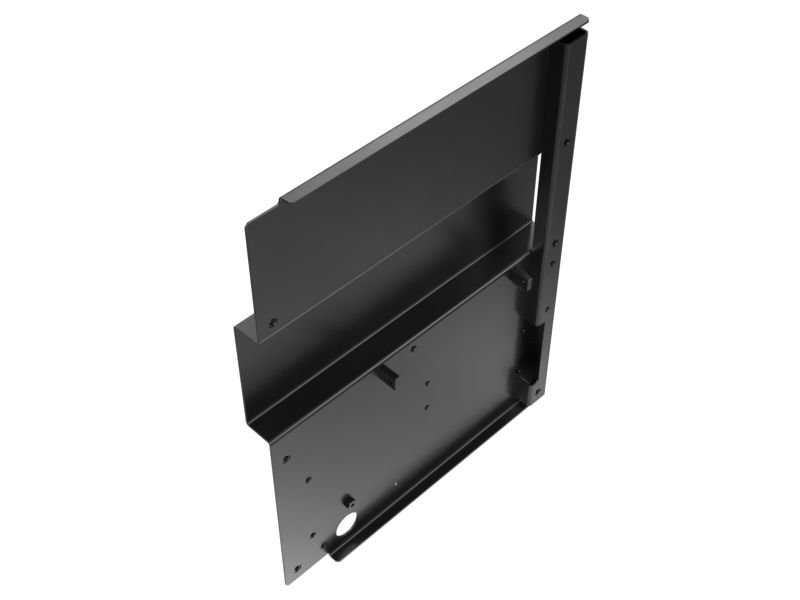

627-3208: Engine Hood Guard Sheet

The Terrain Drilling Upgrade Arrangement is used to optimize the installation and functionality of display and enclosure components in drilling equipment. This arrangement facilitates seamless integration of display systems and protective enclosures, ensuring all components are securely mounted and wired for reliable operation. The enhanced setup aids in maintaining optimal equipment performance, reducing downtime and maintenance requirements.

Attributes:
• For use with large blast hole drills, tall and short rotary blast holes for input and output drills.
• Provides a structured setup for mounting display screens and enclosures.
• Manages wiring connections for streamlined operation.
• Ensures reliable operation of terrain drilling equipment.

Applications:
The Terrain Drilling Upgrade Arrangement is used in the control panel area of terrain drilling equipment and organizes the mounting of display screens and protective enclosures while managing the wiring connections to ensure efficient and reliable operation.

• Internal Thread: M12

• Overall Height (in): 31.61

• Overall Height (mm): 803

• Overall Length (in): 24.41

• Overall Length (mm): 620

• Overall Width (in): 3.47

• Overall Width (mm): 88

• Weight (kg): 15.29

• Weight (lb): 33.71

• Material: Sealants / Adhesives Adhesive,Alloy Mixed
