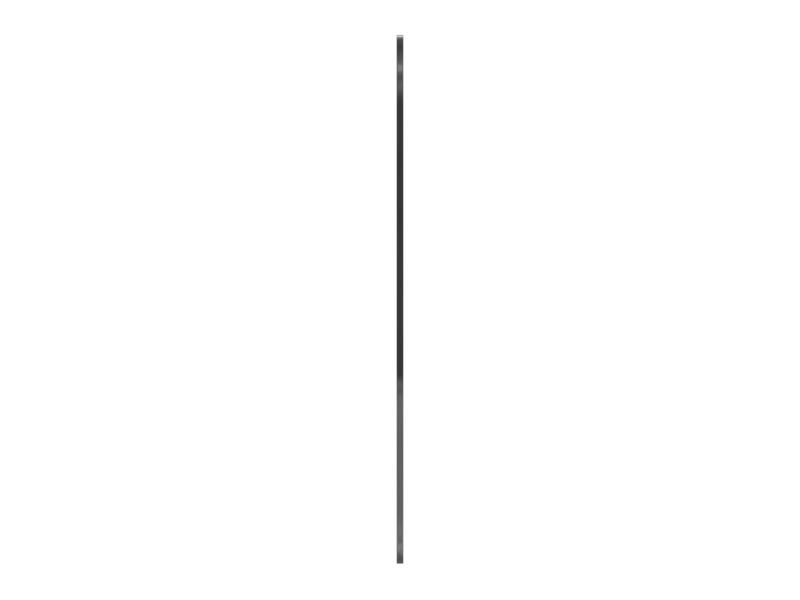

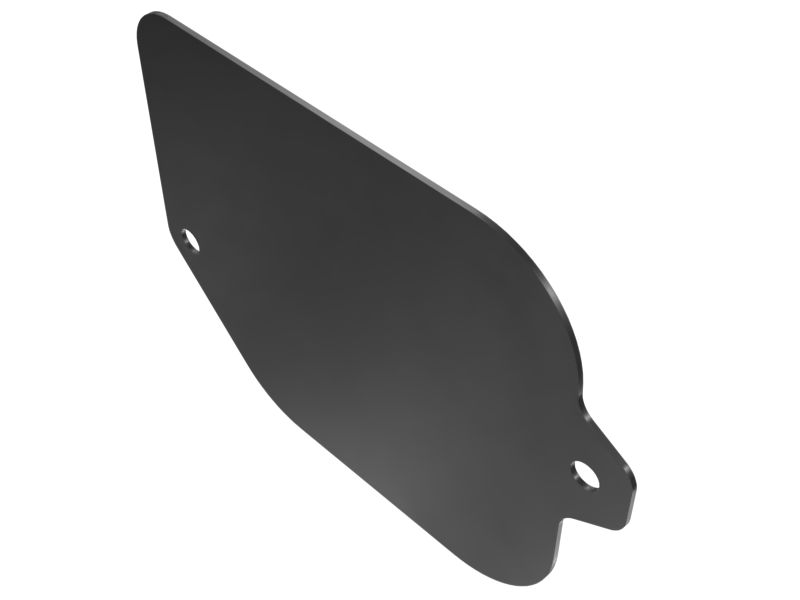

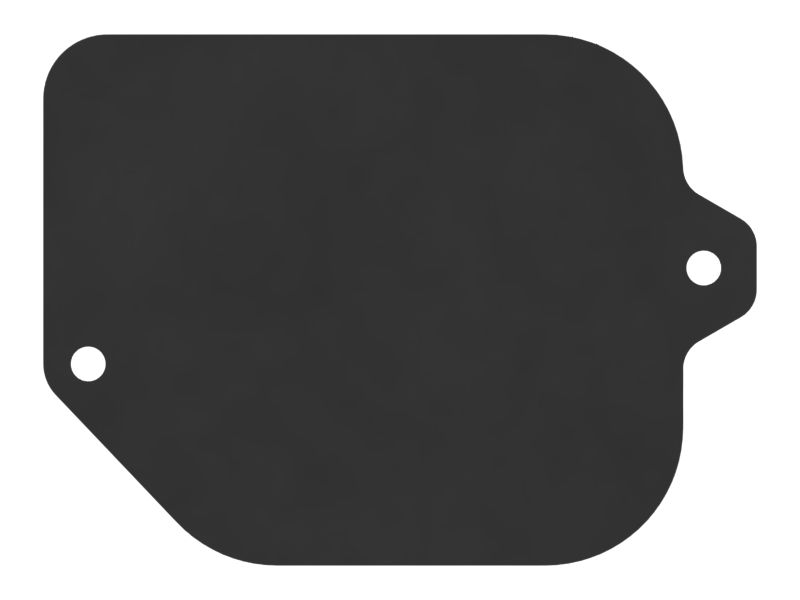

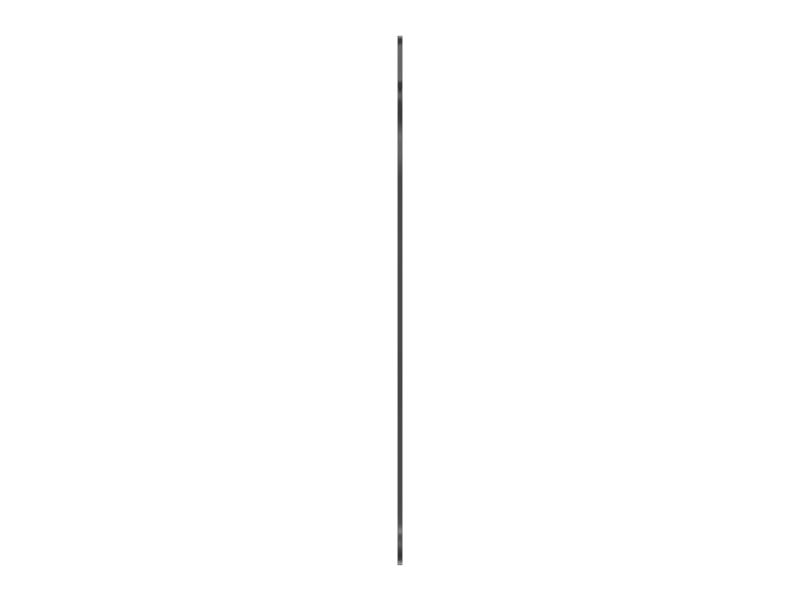

627-2409: Exhaust System Access Door

A Frame Cover Plate is a part that provides a safe, ergonomic, and secure platform on which the associated parts can be mounted. The shape, form, size, and materials are carefully chosen carefully for the intended application. They are manufactured using cutting-edge manufacturing processes and are tested to provide a prolonged service life.

Attributes:
• Provides structural support or attaches one component to another
• Distribute loads and reduce stress concentrations to increase the overall structural strength

Application:
A Frame Cover covers the cavity in the frame of the machine. These prevent the ingress of dirt, dust, and debris by the operation of the machine.

• Length (mm): 223

• Length (in): 8.78

• Height (mm): 166

• Height (in): 6.54

• Material Thickness (mm): 2

• Material Thickness (in): 0.08

• Material: Carbon Steel

• Color: Yellow

• Weight (kg): 0.49

• Weight (lb): 1.08
