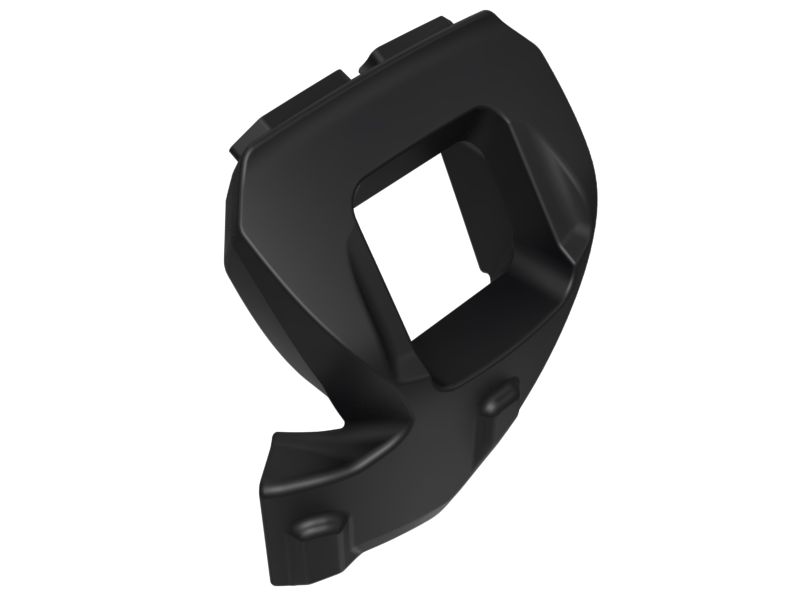

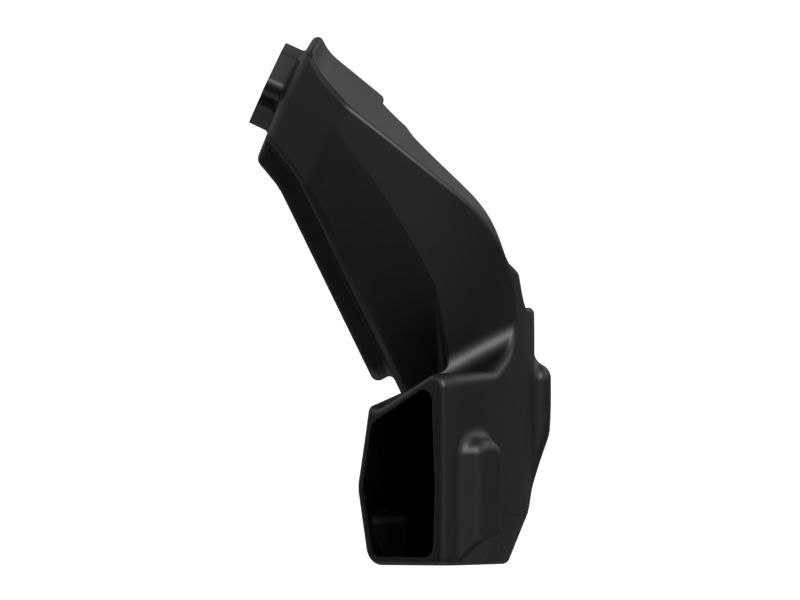

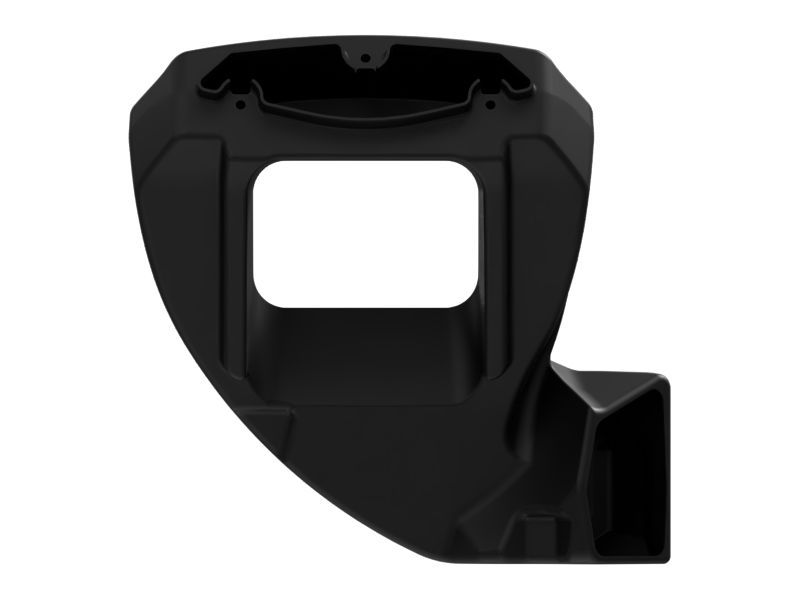

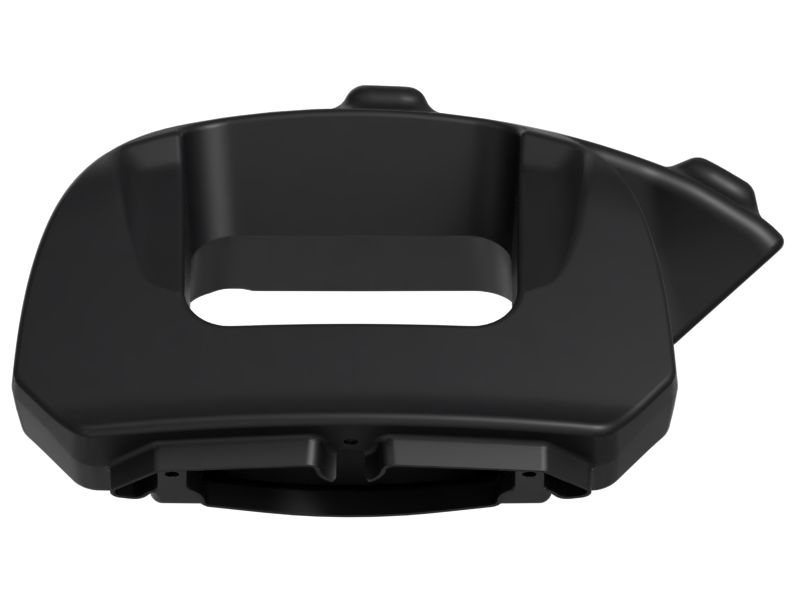

626-7501: Air Conditioner Duct

Cat® Air Conditioner Duct in Cat® Machine is used to supply air to the cabin from the conditioner unit. The air conditioner unit is mounted behind the cab, and the vents are located above and below the operator’s seat. An air conditioner duct is an essential component of the air conditioning system to transfer the air. It provides comfort and safety for the operator in hot or humid environments. The cover, made of plastic has continuous, uniform surface finish and free from any porosity or any other defects to enhance the performance of the conditioner system. A well-functioning air conditioning system can reduce fatigue, improve concentration, and prevent heat-related illnesses. Cat® Part is designed and manufactured to exact tolerances to ensure proper alignment with existing systems on your Cat® Machine. Cat® Parts are manufactured to precise specifications and are built for durability, reliability, productivity, less environmental impact and reuse.

Application:
Cat® Air Ducts are used in operator cabin of Cat® Machines. Consult your owner's manual or contact your local Cat® Dealer for more information.

• Length (mm): 552.6

• Length (in): 21.76

• Height (mm): 539

• Height (in): 21.22

• Width (mm): 309

• Width (in): 12.17

• Side Wall Thickness (mm): 3

• Side Wall Thickness (in): 0.12

• Hole Size (mm): 10.3 (3x)

• Hole Size (in): 0.41 (3x)

• Material: Polyolefin Plastic,Polyethylene Plastic

• Color: Low-Gloss Black

• Approx. Weight (kg): 1.79

• Approx. Weight (lb): 3.94
