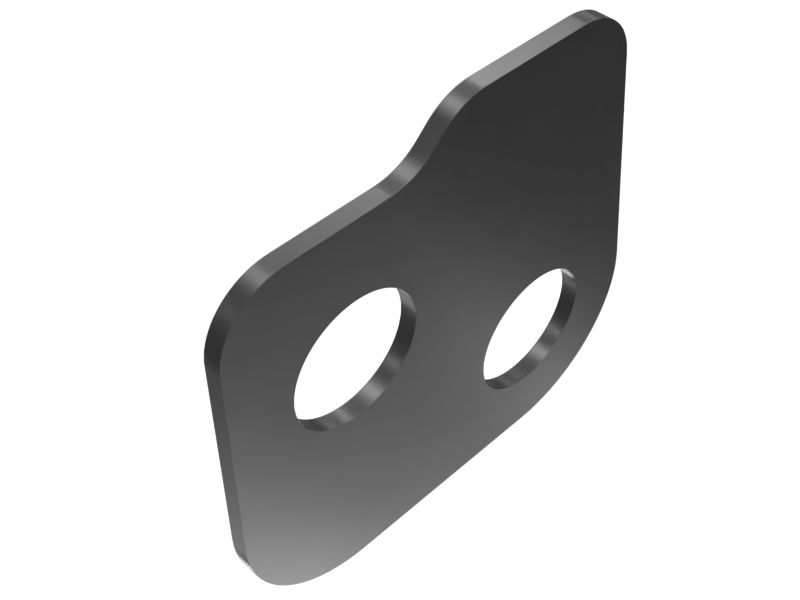

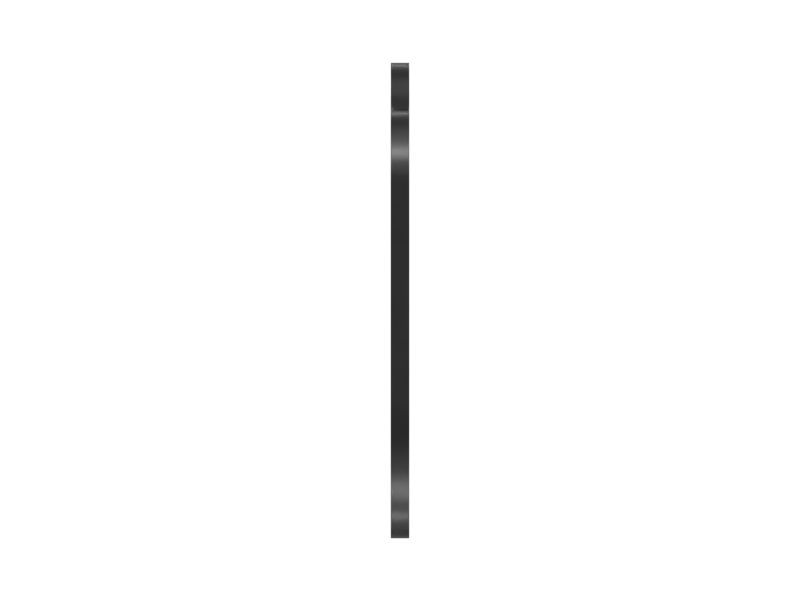

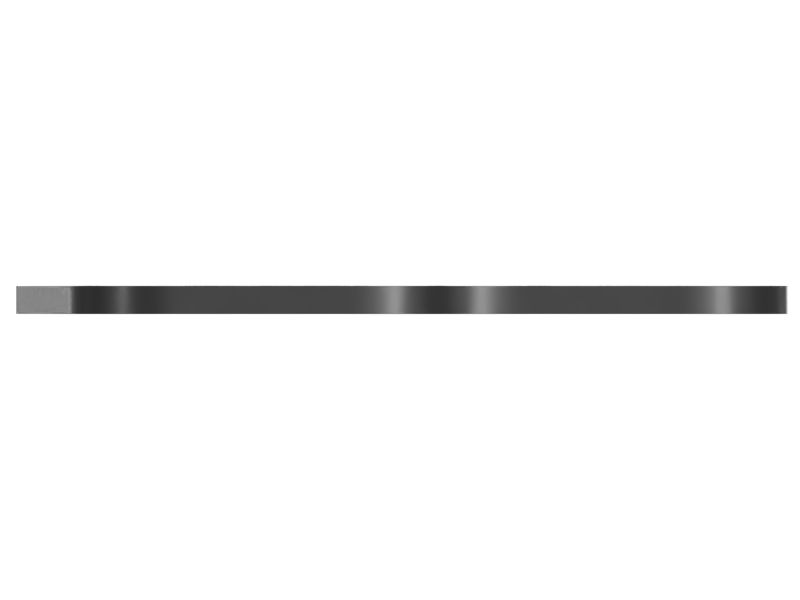

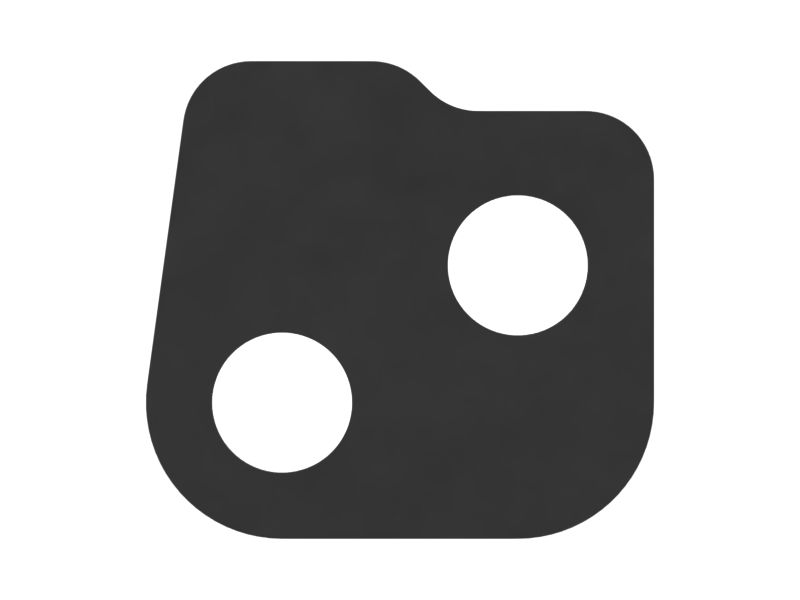

625-7696: 4mm Thick Auxiliary Lines Support Plate

An Auxiliary Lines Support Plate supports and secures the auxiliary hydraulic lines. It ensures that these lines are properly routed, preventing entanglement and damage during operation. By maintaining the organization and integrity of the auxiliary lines, it enhances the overall efficiency and safety of the equipment.

Attributes:
• Ensures stable and secure routing of the auxiliary lines.
• Enhances the safety of the lines by preventing line damage by chafing and wear.

Applications:
An Auxiliary Lines Support Plate is located along the frame of the equipment, positioned to support and organize auxiliary hydraulic lines, maintaining their integrity and preventing damage during operation.

• Length (mm): 112

• Length (in): 4.409

• Width (mm): 105.3

• Width (in): 4.146

• Thickness (mm): 4

• Thickness (in): 0.16

• Hole Size (mm): 31

• Hole Size (in): 1.22

• Weight (kg): 0.28

• Weight (lb): 0.613

• Material: Steel,Carbon Steel,Alloy Zinc
