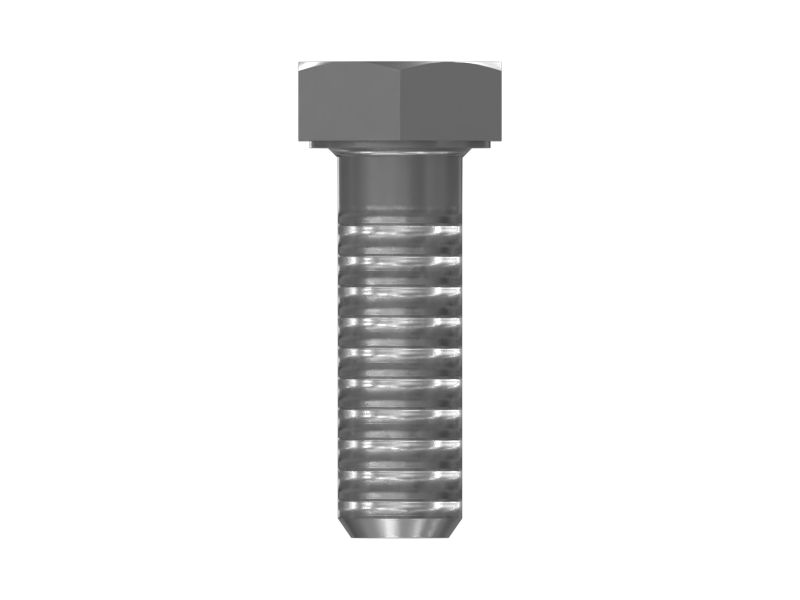

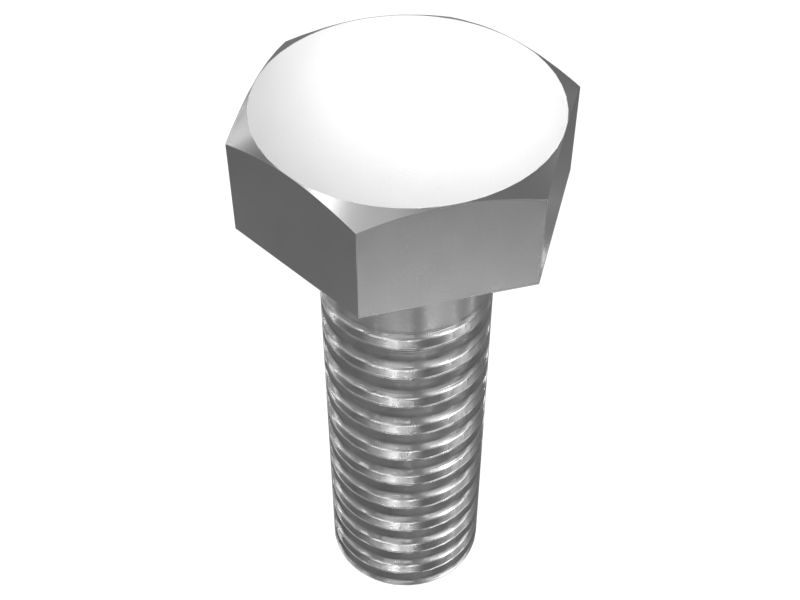

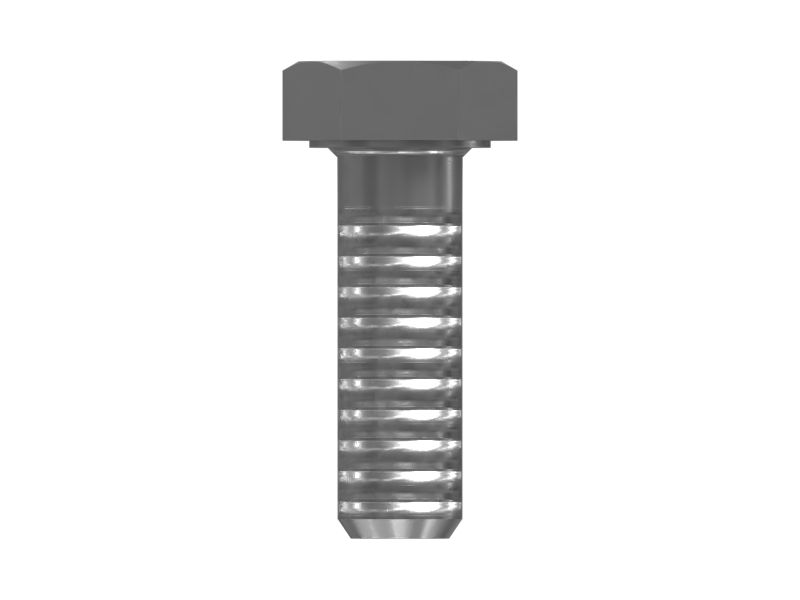

625-5492: M8 Hexagonal Head Bolt

A Hexagonal Head Bolt is used to securely join structural elements and components in the equipment, these hexagonal head bolts are inserted through pre-drilled holes in the mating components and tightened using a wrench and socket tool. The hexagonal head design allows for efficient torque application, enabling operators to achieve the required clamping force for secure fastening. These bolts help in maintaining the structural integrity and operational safety of equipment by preventing loosening and ensuring component stability under dynamic loads.

Attributes:
• Includes a flange that helps distribute the load evenly across the surface.
• Anti-drop head lock prevents the bolt from loosening under vibration.
• Facilitates accurate torque application and consistent clamping force.
• Resistant to deformation and shearing under load.

Applications:
A Hexagonal Head Bolt is installed at designated mounting points on the suction fan assembly of equipment, allowing for secure fastening of the separator plates, ensuring that they remain in position during operation.

• Overall Length (mm): 30.5

• Overall Length (in): 1.201

• Length (mm): 25

• Length (in): 0.984

• Thread Length (mm): 22.75

• Thread Length (in): 0.896

• Head Type: Hexagonal Head

• Head Length (mm): 5.5

• Head Length (in): 0.22

• Hex Size (mm): 13

• Hex Size (in): 0.512

• Weight (kg): 0.02

• Weight (lb): 0.04

• Material: Steel,Sealants / Adhesives Adhesive,Low Alloy Ste

• Hand of Thread: RH

• Coating: Zinc Flake-Black

• Class or Grade: ISO 898-1 Class 10.9

• Thread Size (dia x pitch) (mm): M8x1.25
