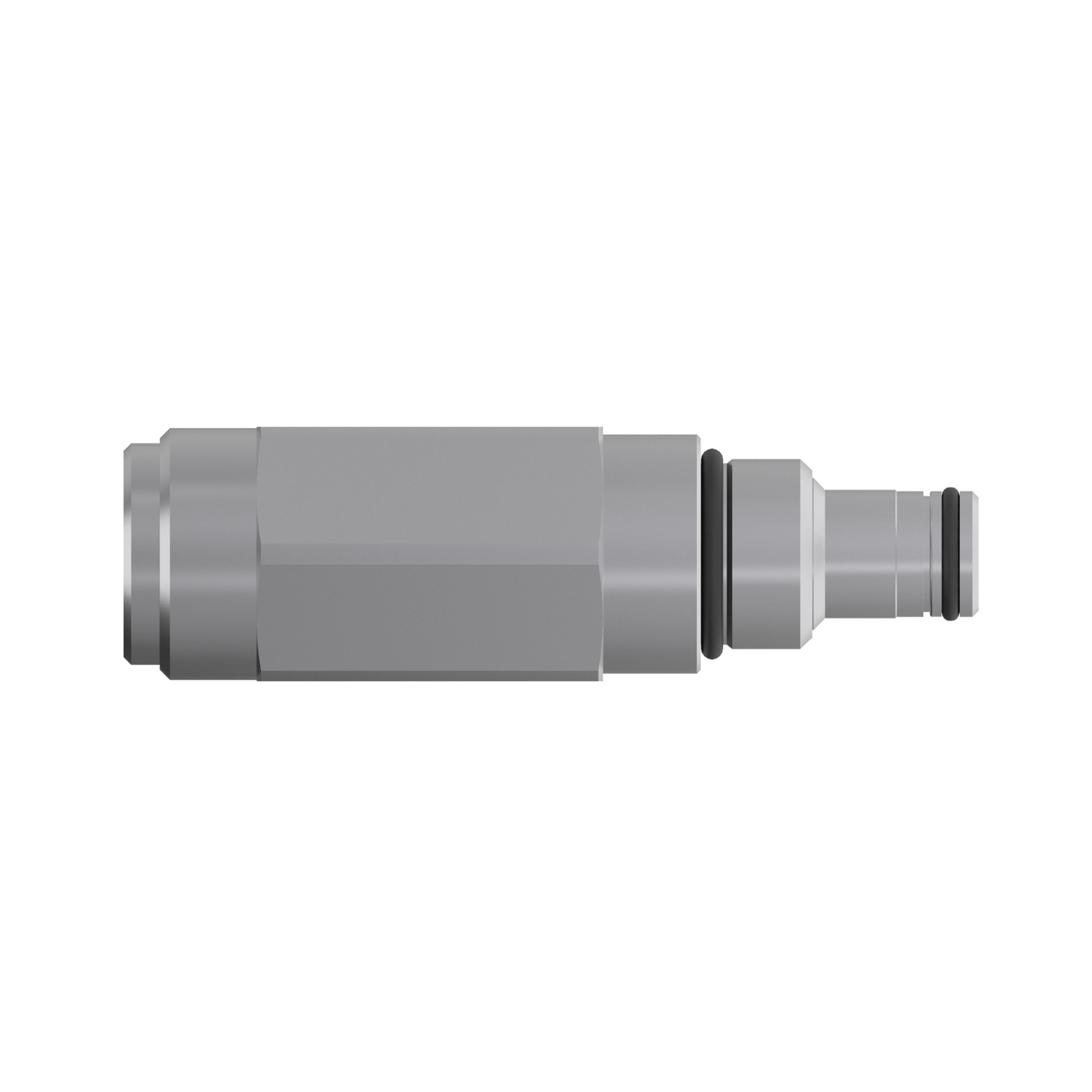

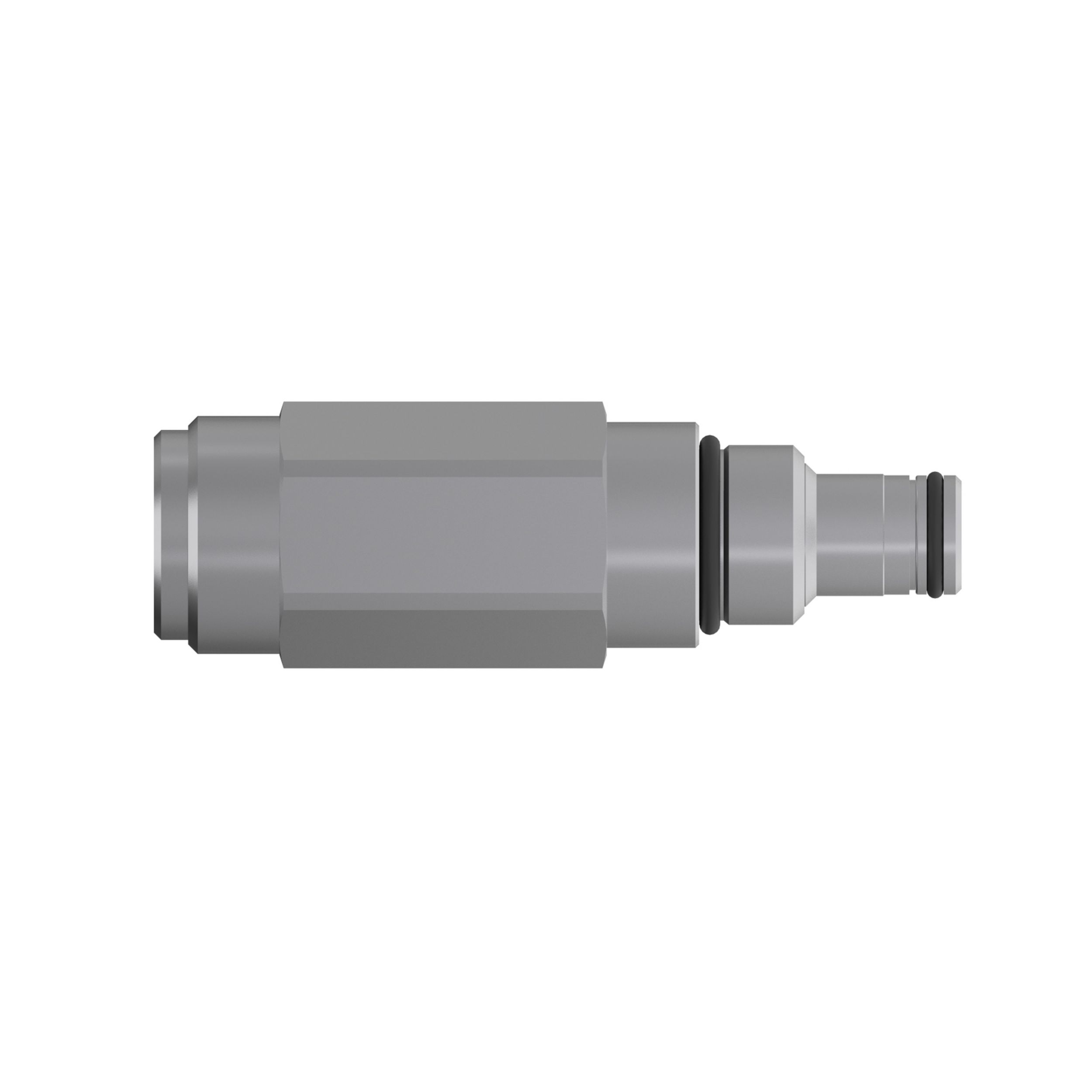

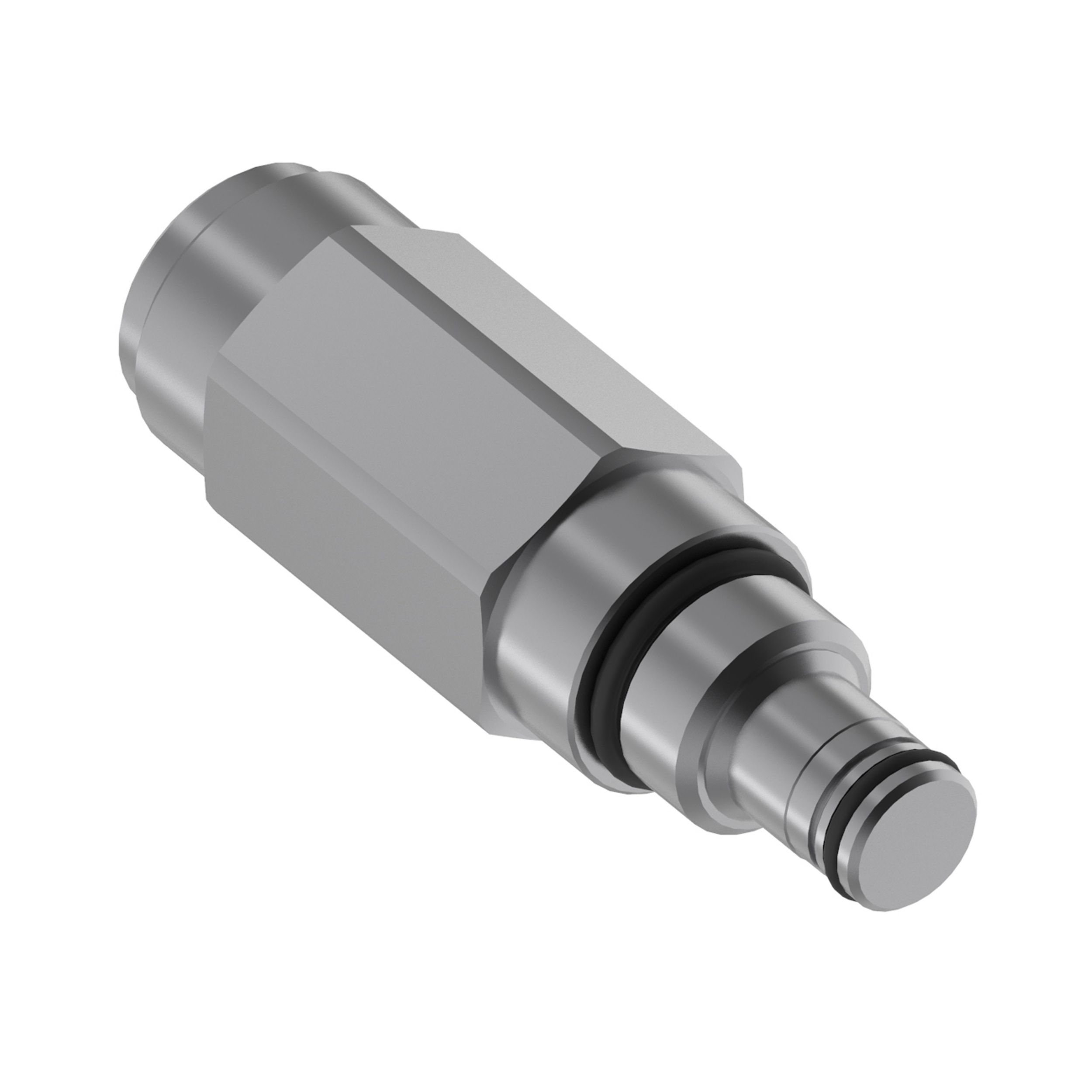

625-3189: Relief Valve Group

Description:
Cat® Relief Valve Groups is a type of safety valve used to control or limit the pressure build-up by releasing fluid when the safety threshold has been reached, otherwise pressure might build up and create a failure, or fire. Cat® Relief valve is designed or set to open at a predetermined set pressure to protect pressure vessels. Cat® Valves are manufactured to precise specifications and are built for durability, reliability, productivity.

Maximum Pressure : 275.8 bar (4000.14 psi)
Nominal Setting : 200 bar (2900.75 psi)
Flow @ Maximum Pressure : 22.7 L/Min (6 G/Min)
Viscosity Range : 7.4 to 4.20 cSt

Application:
Cat® Relief Valve Assembly used to service control valve groups in hydraulic systems in Cat machines. Consult your owner's manual or contact your local Cat Dealer for more information.

• Hex Size (mm): 25.4

• Hex Size (in): 1

• Overall Width (mm): 85.3

• Overall Width (in): 3.36

• Operating Temperature: -40°C to +70°C

• Material: Steel,Carbon Steel

• Weight (kg): 0.28

• Weight (lb): 0.61
