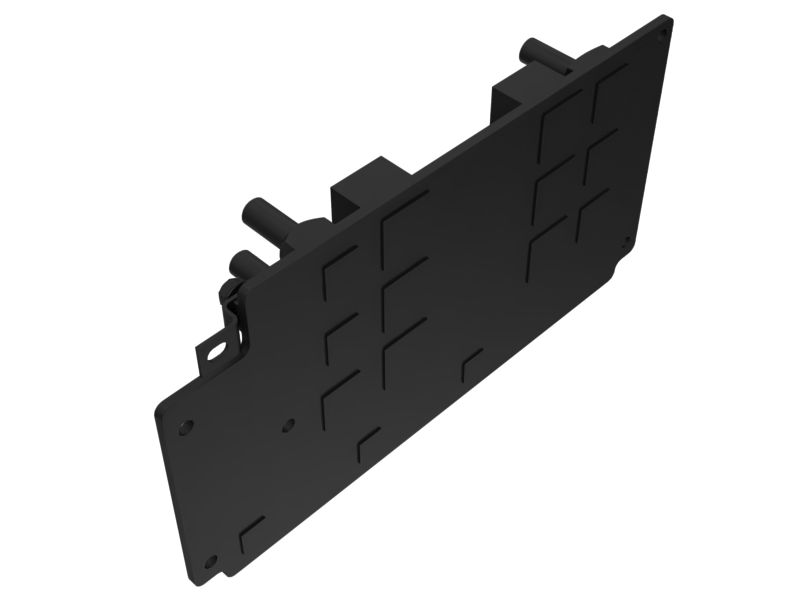

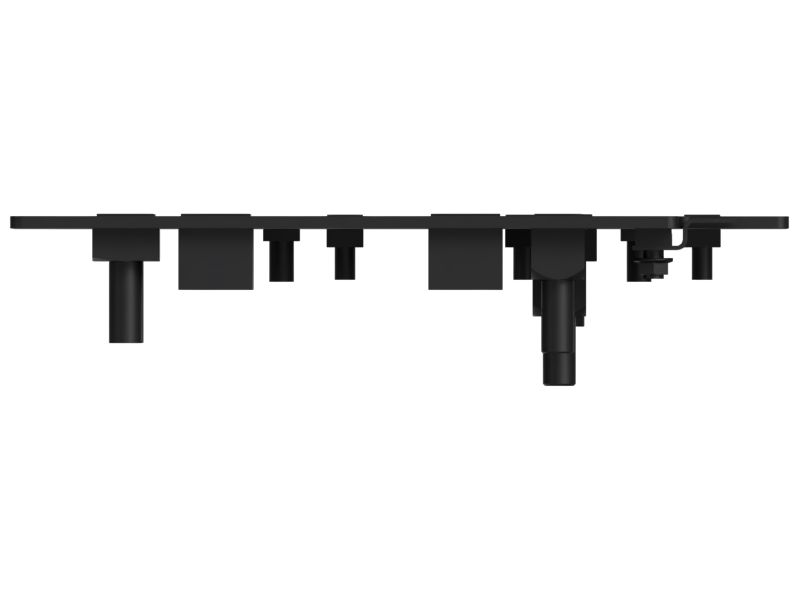

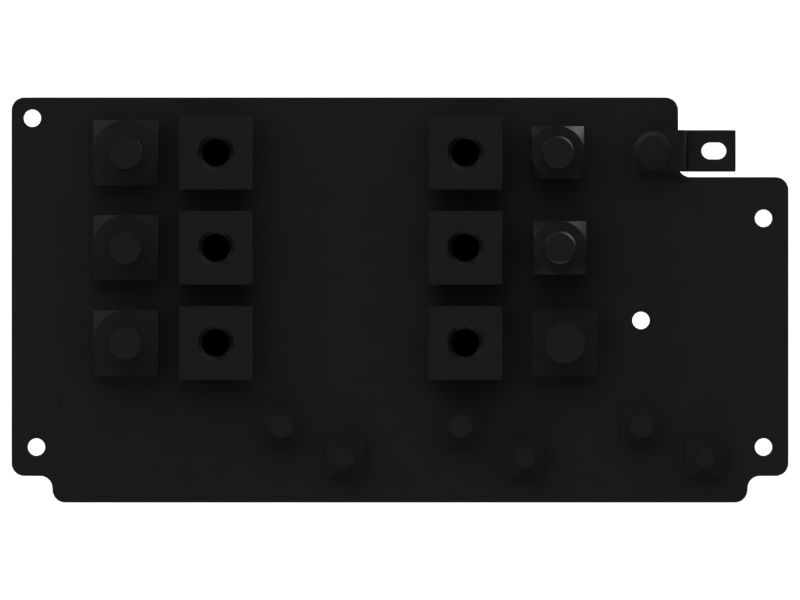

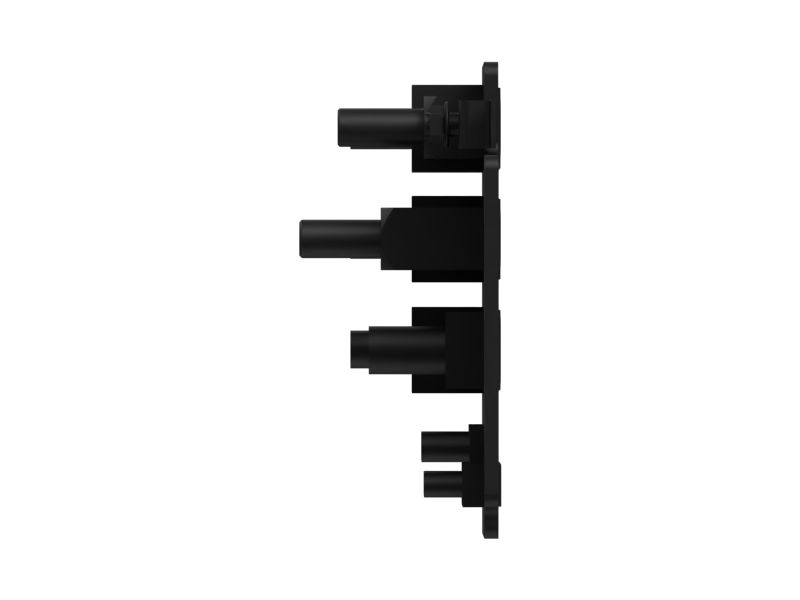

624-4906: Printed Circuit Board

A Hydraulic Lines Support Bracket provides a stable base for attaching clips that hold the hydraulic lines securely in place. The bracket's shape is made to accommodate the specific configuration of hydraulic lines and mounting points on the machine. It features holes or slots for attaching the bracket to the machine frame and for securing the clips that hold the hydraulic lines.

Attributes:
• Prevents movement and vibrations that impact hydraulic system performance
• Prevents tangling or interference with other hydraulic lines within the machine

Applications:
A Hydraulic Lines Support Bracket is a metal fixture made to secure hydraulic lines to the upper frame of the machine using clips, preventing line movement and damage.

• Height (in): 1.65

• Height (mm): 42

• Hole Size (in): 0.18

• Hole Size (mm): 4.5

• Length (in): 7.48

• Length (mm): 190

• Material: Plastic,Polyamide Plastic

• Weight (kg): 0.5

• Weight (lb): 1.1

• Width (in): 3.9

• Width (mm): 99
