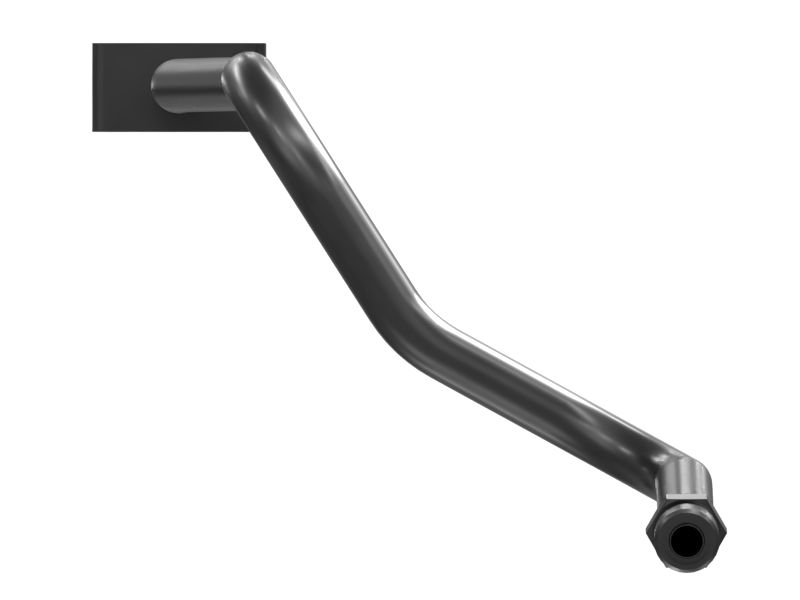

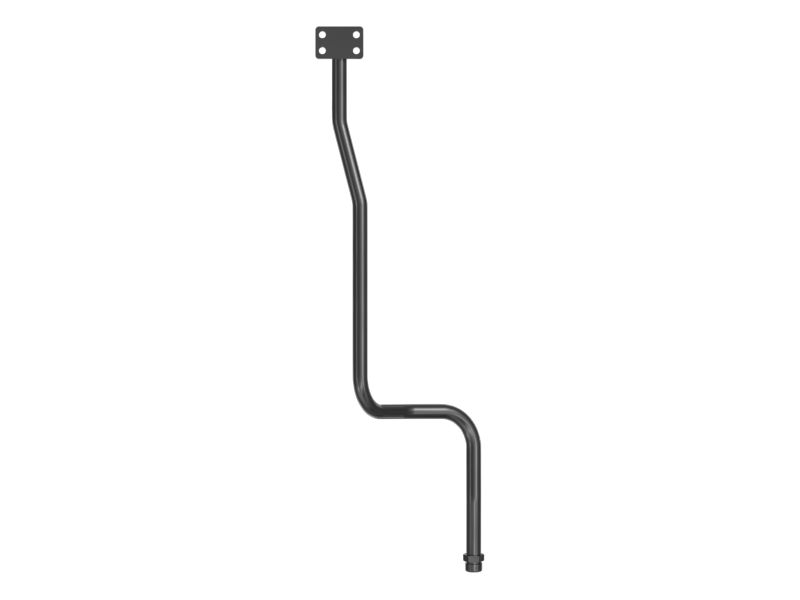

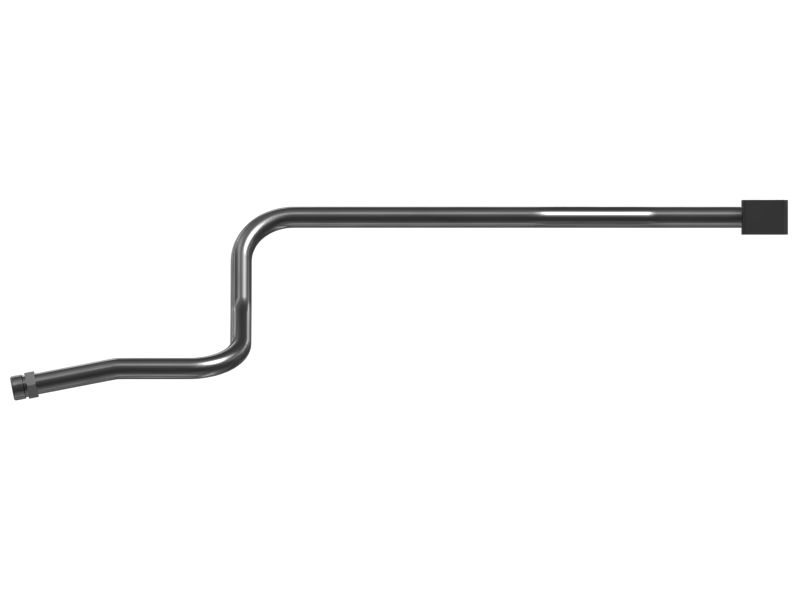

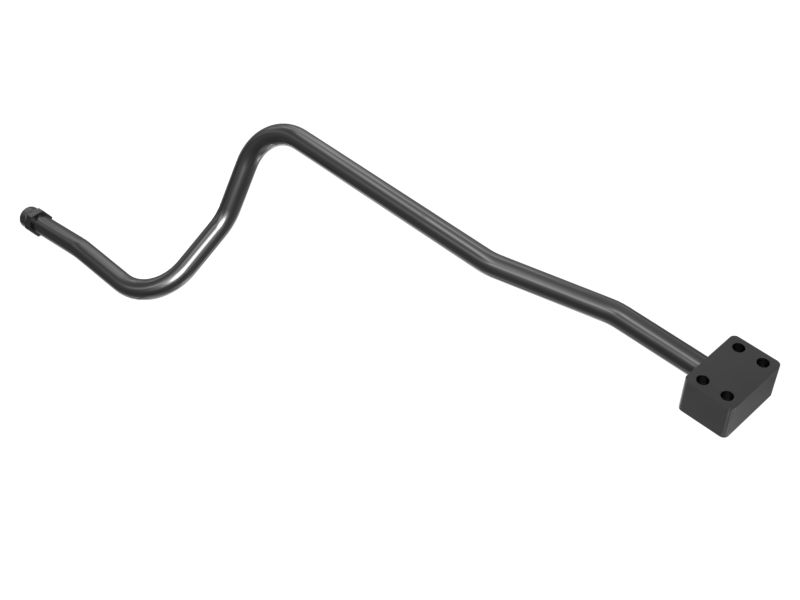

623-5977: 16.1mm Inner Diameter Cylinder Lines Tube Assembly

The Cylinder Lines Tube Assembly is to transport hydraulic fluid between the boom cylinder and the hydraulic power unit. It acts as a conduit, allowing the hydraulic fluid to flow under pressure, and enabling the controlled extension and retraction of the boom cylinder. It ensures efficient fluid transfer, minimizing pressure losses and optimizing the performance of the hydraulic unit.

Attributes:
• Withstands 35000 kPa relief valve pressure which indicates if the pressure within the lines reaches or exceeds, the valve will open, allowing the excess fluid to be released
• Resist a wide range of temperatures, including both high and low extremes

Applications:
The Cylinder Lines Tube Assembly facilitates the transfer of hydraulic fluid, enabling the controlled movement of the boom cylinder.

• Material: Carbon Steel
