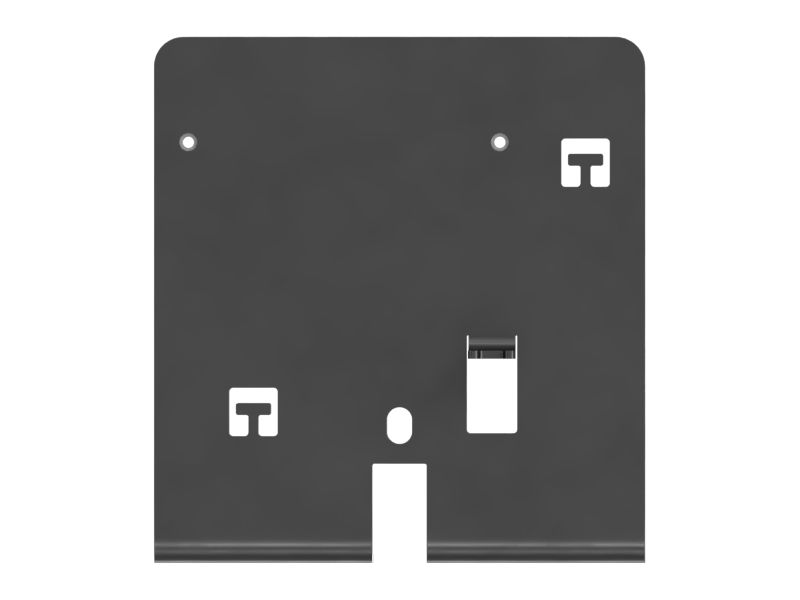

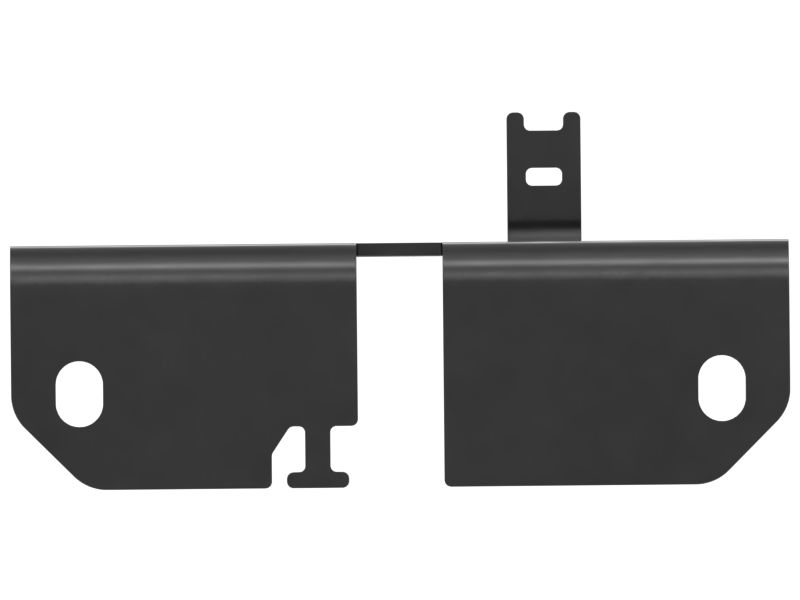

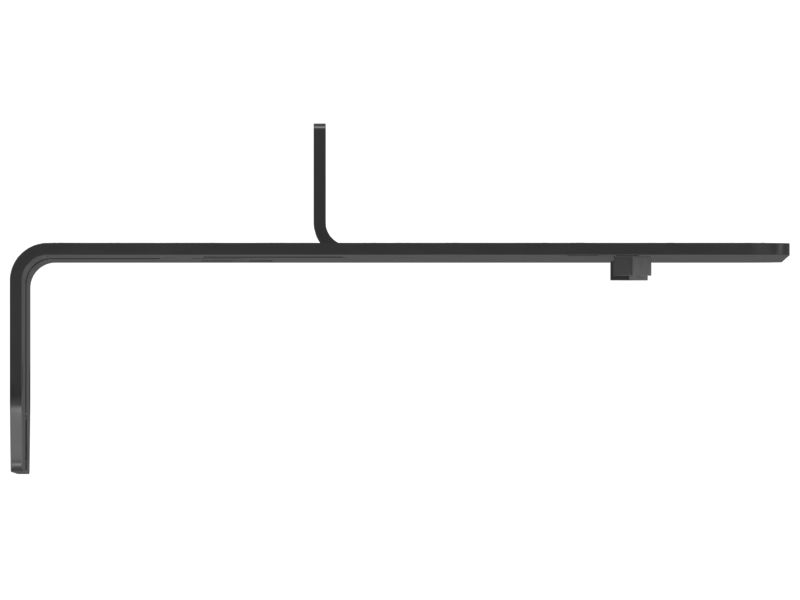

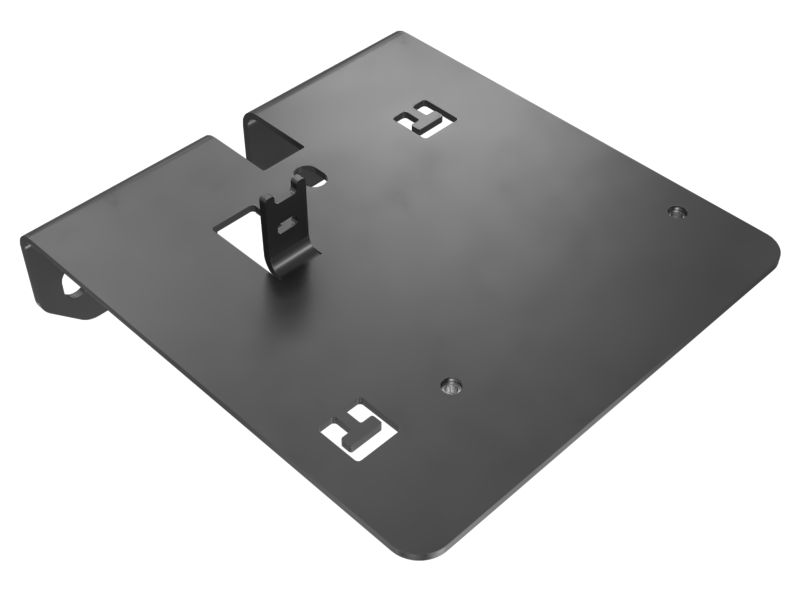

622-5747: Electronic Control Mounting Plate

The Keypad Module Mounting Bracket houses and supports the keypad module, which serves as a user interface for controlling different functions. The bracket is used to provide a stable platform, minimizing vibrations and movement that affect the keypad's performance. By maintaining the keypad module in a fixed position, the bracket ensures accurate and reliable inputs from the operator. It is mounted within the operator's cabin at the control panel, where the keypad needs to be easily accessible. The bracket allows for easy installation and removal of the keypad module, facilitating maintenance and replacement.

Attributes:
• Provides stability and support to the keypad module.
• Resistant to vibrations and shocks, ensuring it remains properly positioned during operation.
• Facilitates integration with protective covers and guards within the control panel.

Applications:
The Keypad Module Mounting Bracket is located within the control panel in the operator's cabin to provide a secure and stable platform for the keypad module.

• Internal Thread: M6x1

• Overall Height (in): 4.78

• Overall Height (mm): 121.4

• Overall Length (in): 9.92

• Overall Length (mm): 252

• Thickness (in): 0.16

• Thickness (mm): 4

• Weight (kg): 1.94

• Weight (lb): 4.28

• Material: Structural Steel,Alloy Mixed
