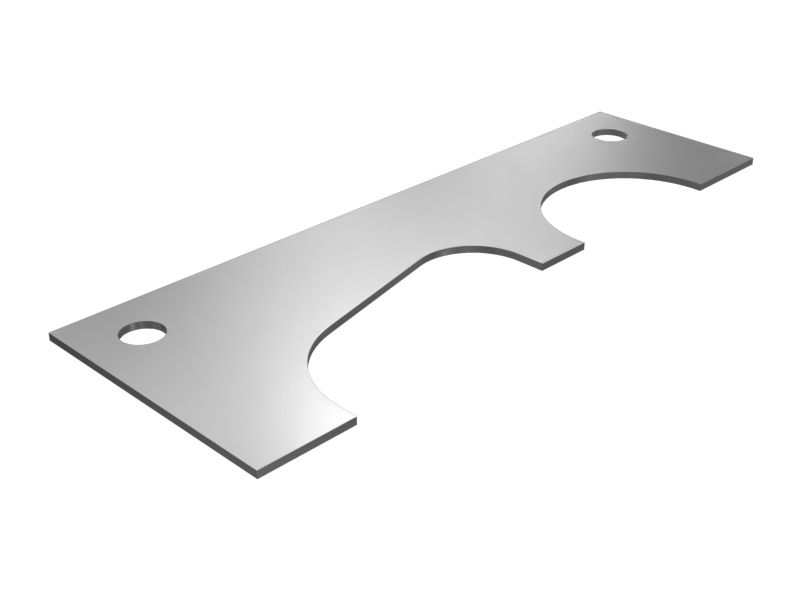

622-5501: 2mm Thick Hydraulic Line Mounting Plate

The Hydraulic Line Mounting Plate is designed to create a structured and secure pathway for hydraulic lines, preventing tangling or interference during the operation of the equipment. It is placed to guide and support hydraulic lines, ensuring optimal performance and longevity of the entire hydraulic setup. This plate acts as a protective shield for hydraulic lines, safeguarding them from external elements, debris, abrasion, and potential damage. Its design facilitates efficient and organized routing of hydraulic lines, contributing to the overall reliability and safety of the hydraulic system.

Attributes:
• Absorbs vibrations to reduce stress on hydraulic lines and enhance system durability.
• Resistant to abrasion, protecting hydraulic lines from wear in dynamic environments.
• Designed for secure attachment, preventing movement during operation.

Applications:

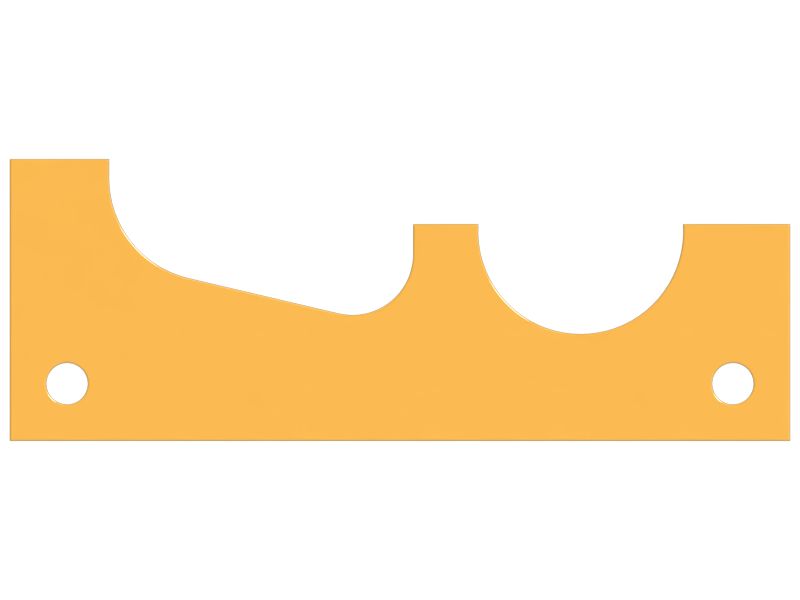

The Hydraulic Line Mounting Plate is used to line the side of the hydraulic oil cooling fan housing whilst having cutouts to route and support hydraulic lines through them into the hydraulic fan from the hydraulic pump.

• Material: Carbon Steel
