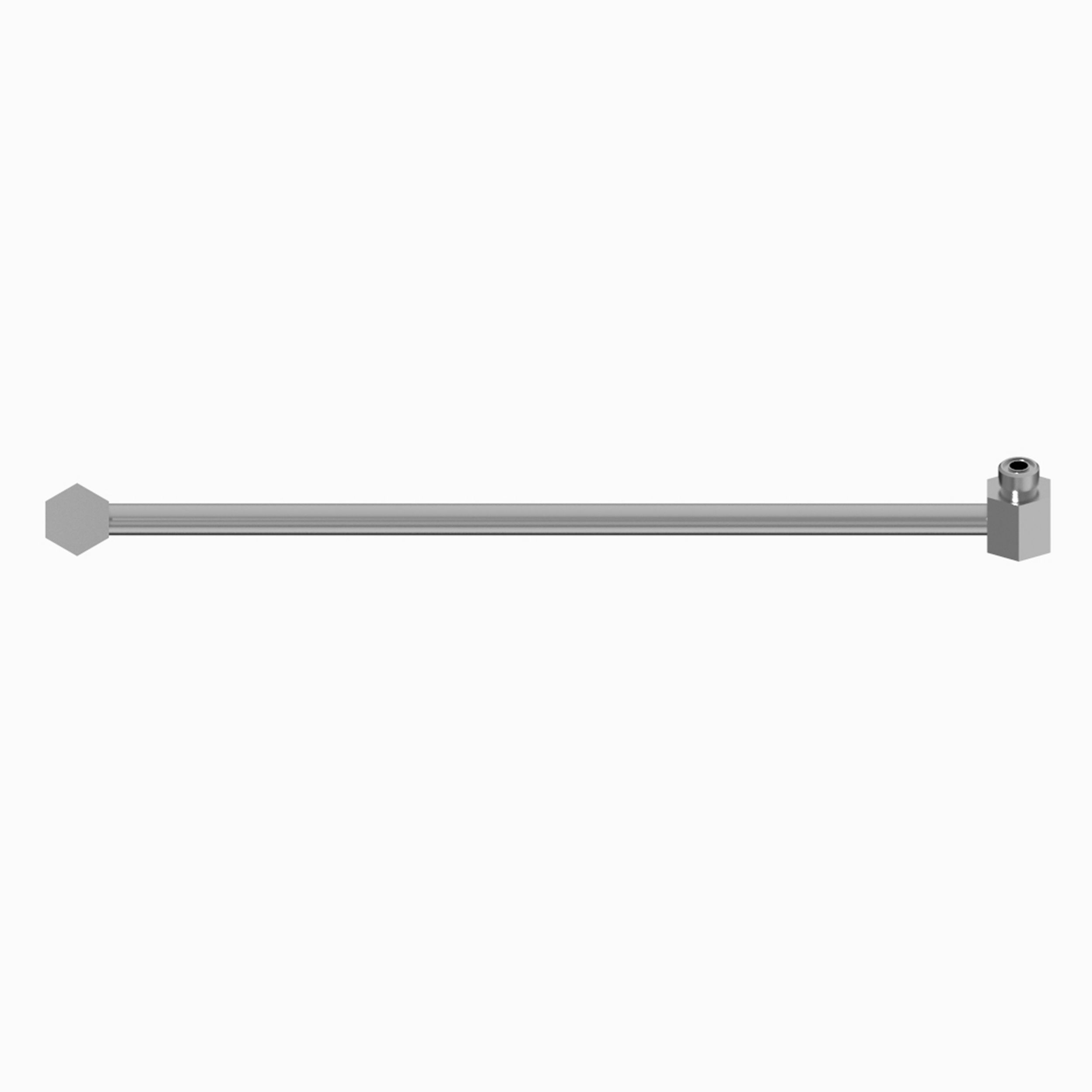

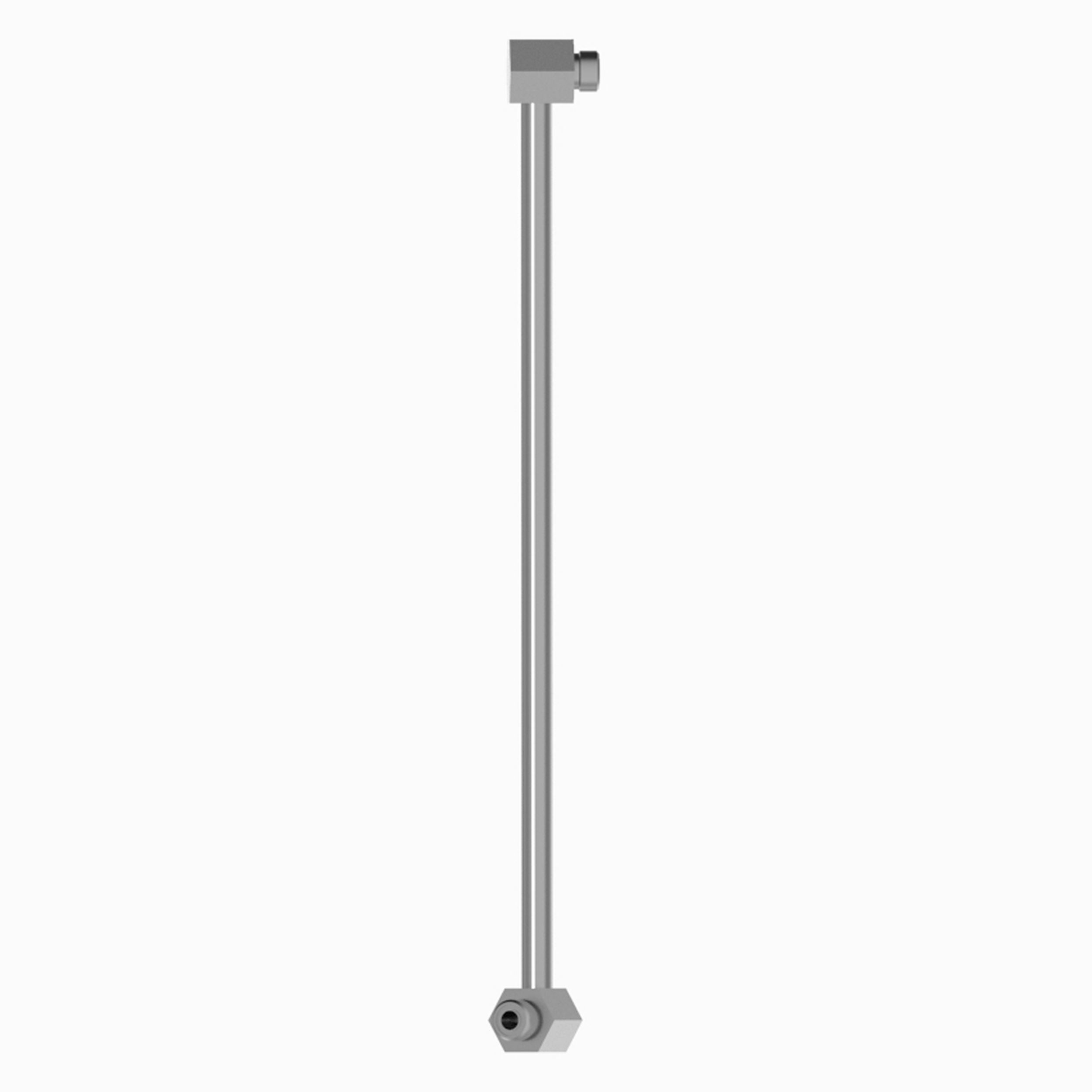

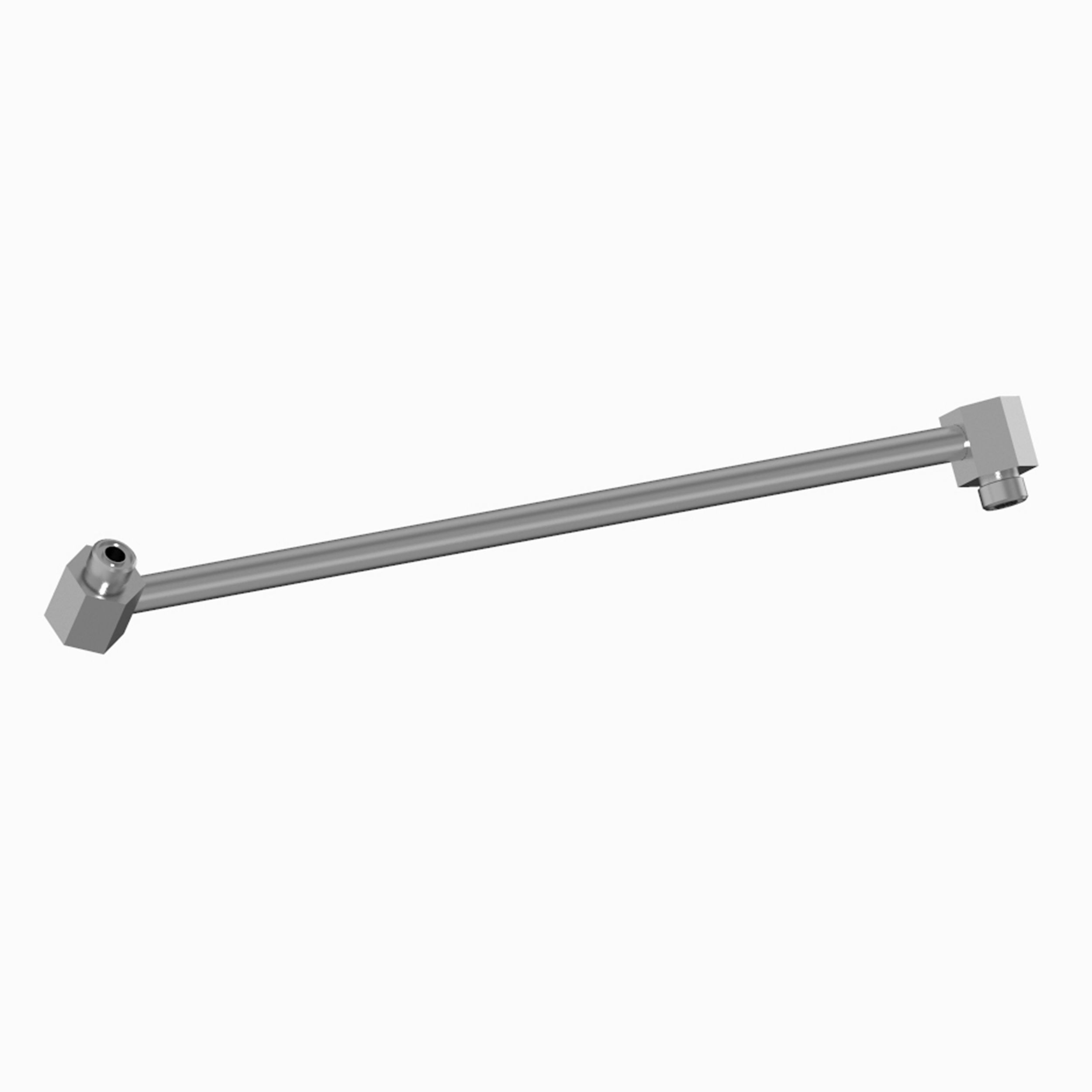

621-9942: Tube Assembly

Description:
Cat® Tube Assemblies are rigid pipes that convey fluid or air. Cat® Tubes are held to the highest standards of quality and reliability. These rigid tubes (also commonly referred to as pipes) are designed to convey liquids or gases and are precisely engineered for each unique application. Each Cat tubes utilizes superior materials and processes, fabricated specifically to withstand the application’s pressure and flow requirements which will ensure a long life and proper machine functionality. Engineered with a specific application in mind, every Cat tube is designed and manufactured to exacting tolerances to ensure proper alignment with existing systems on your Cat machine.

Minimum Burst Pressure : 96000 kPa (13923.62 psi)
Wetted Surface Area : 0.0159 sq.m

Application:
Cat® Tube Assemblies are used in applications where line flexibility is not required. Consult your owner's manual or contact your local Cat Dealer for more information.

• Overall Length (mm): 503.4

• Overall Length (in): 19.82

• Overall Height (mm): 52.6

• Overall Height (in): 2.08

• Overall Width (mm): 55.8

• Overall Width (in): 2.2

• Tube Diameter (mm): 15.88

• Tube Diameter (in): 0.63

• Side Wall Thickness (mm): 2.41

• Side Wall Thickness (in): 0.1

• Hose Length (mm): 459

• Hose Length (in): 18.08

• Thread Size (in - TPI) (in): 13/16 - 16 (2x)

• Working Pressure (kPa): 24000

• Working Pressure (psi): 3480

• Pressure Capacity (kPa): 96000

• Pressure Capacity (psi): 13920

• Material: Steel,Alloy Zinc,Carbon Steel,Alloy Mixed

• Weight (kg): 0.74

• Weight (lb): 1.62
