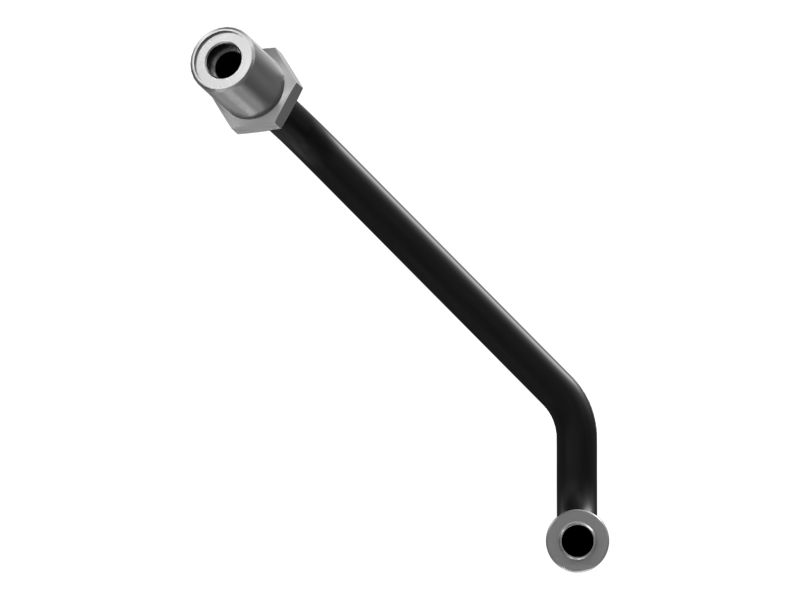

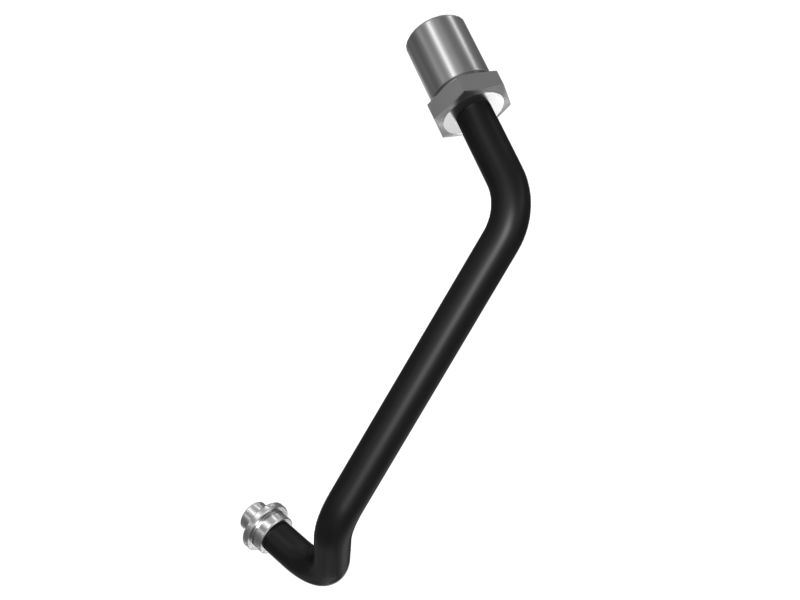

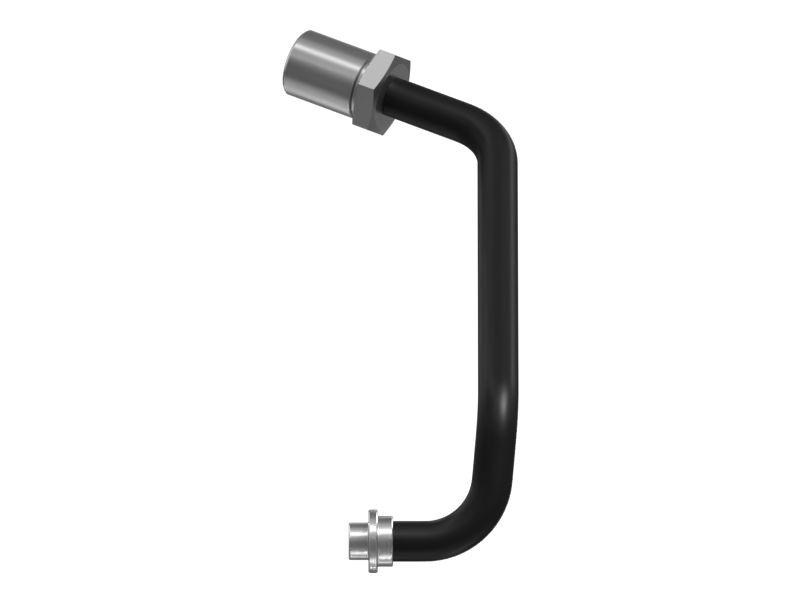

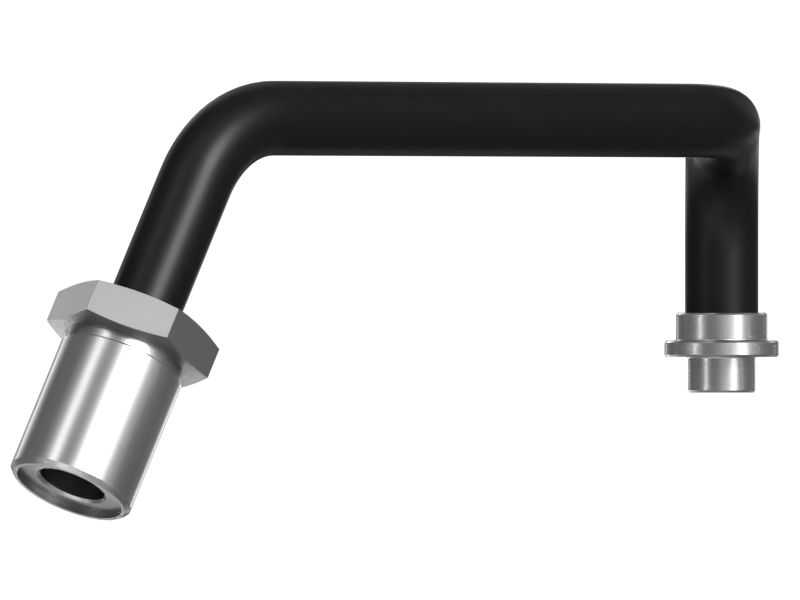

620-7861: Air Conditioning Tube

An Air Conditioner Lines Tube Assembly regulates the flow of refrigerant and facilitates the cooling process within an operator's cabin. The tubes carry the refrigerant from the compressor to the evaporator and then from the condenser back to the compressor. The assembly features a dual head seal to ensure a leak-free connection between the air conditioner components.

Attributes:
• Suitable to use with a hose of inner diameter 19.05mm
• Withstands the high temperature and pressure of the refrigerant

Applications:
An Air Conditioner Lines Tube Assembly is used to maintain the temperature inside the cabin by efficiently transferring the refrigerant between the parts in the air conditioner unit.

• Overall Length (mm): 258.6

• Overall Length (in): 10.18

• Overall Width (mm): 120

• Overall Width (in): 4.72

• Overall Height (mm): 198.4

• Overall Height (in): 7.81

• Tube Diameter (mm): 19.05

• Tube Diameter (in): 0.75

• Side Wall Thickness (mm): 1.24

• Side Wall Thickness (in): 0.05

• Working Pressure (kPa): 2950

• Working Pressure (psi): 427.86

• Color: Cat Yellow

• Approx. Weight (kg): 0.2

• Approx. Weight (lb): 0.45

• Material: Alloy Zinc,Alloy Mixed
